Baldor ZDPM18030C-BV - 30 HP, 1800RPM, 3 Phase, 60HZ, 1852C, Tebc, Foot, 60HZ Three Phase 30 HP 1852°C

Save $4,739.75
BaldorSKU: ZDPM18030C-BV

Price:
Sale price$14,219.25 Regular price$18,959.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

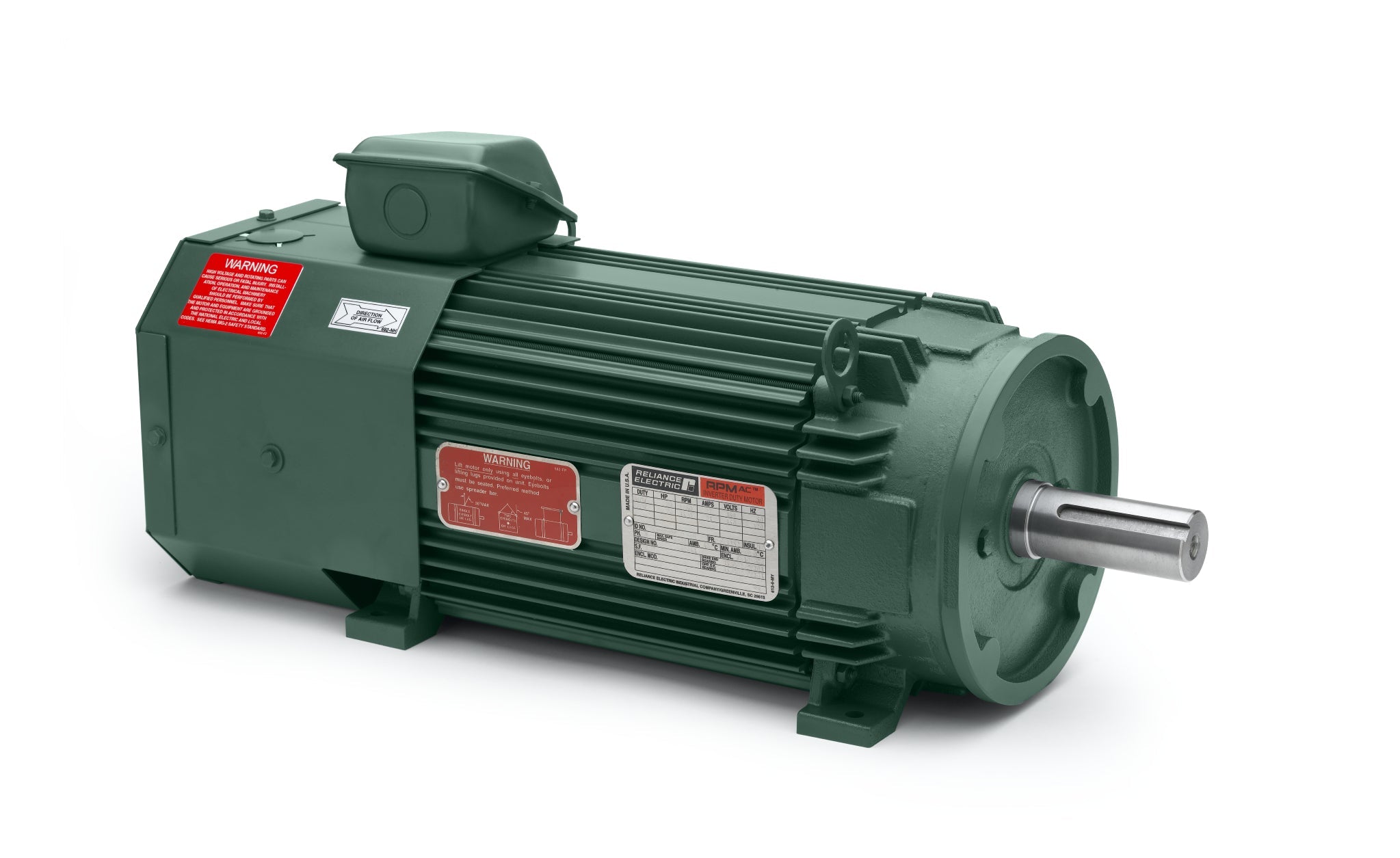

Baldor ZDPM18030C-BV - 30 HP AC Laminated Frame RPMAC Motor

Upgrade your industrial applications with the Baldor ZDPM18030C-BV, a powerful 30 HP, 1800 RPM, 3-phase motor designed for efficiency and reliability. This motor operates at 60Hz and features a robust 1852C frame, ensuring optimal performance in demanding environments.

Key specifications include:

  • Power: 30 HP
  • Speed: 1800 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 1852C
  • Enclosure Type: TEBC (Totally Enclosed, Fan Cooled)
  • Mounting Type: Foot-mounted

This Baldor-Reliance motor is ideal for a variety of applications, providing the durability and performance you need for your operations. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right components for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor ZDPM18030C-BV to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568468722
Supplier Part Number ZDPM18030C-BV
Category AC Motors
Subcategory AC Laminated Frame - RPMAC Motors
Product Family General Industrial
Agency Approvals CCSA US
Approximate Weight (lbs) 275.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number ZDPM18030C-BV
Current @ Voltage 32.300 A @ 460.0 V
Duty Rating CONT
Enclosure TEBC
Feedback Device TACHOMETER
Frame FL1852C
Frame Material Aluminum
Frame Prefix FL
Frequency 60.00 Hz
Heater Indicator No Heater
High Voltage Full Load Amps 32.3 a
Insulation Class H
Motor Letter Type Permanent Magnet Brush Type
Motor Standards NEMA
Mounting Arrangement F3
Output 30.000 hp
Output @ Frequency 30.000 HP @ 60 HZ
Overall Length 28.05 IN
Phase 3
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Service Factor 1
Shaft Diameter 1.625 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Speed 1800 rpm
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Normally Closed Thermostat
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ

Motor Curves
