Baldor ZDPM18025C-BV - 25 HP, 1800RPM, 3 Phase, 60HZ, 1852C, Tebc, Foot, 60HZ Three Phase 25 HP 1852°C

Save $4,739.75
BaldorSKU: ZDPM18025C-BV

Price:
Sale price$14,219.25 Regular price$18,959.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

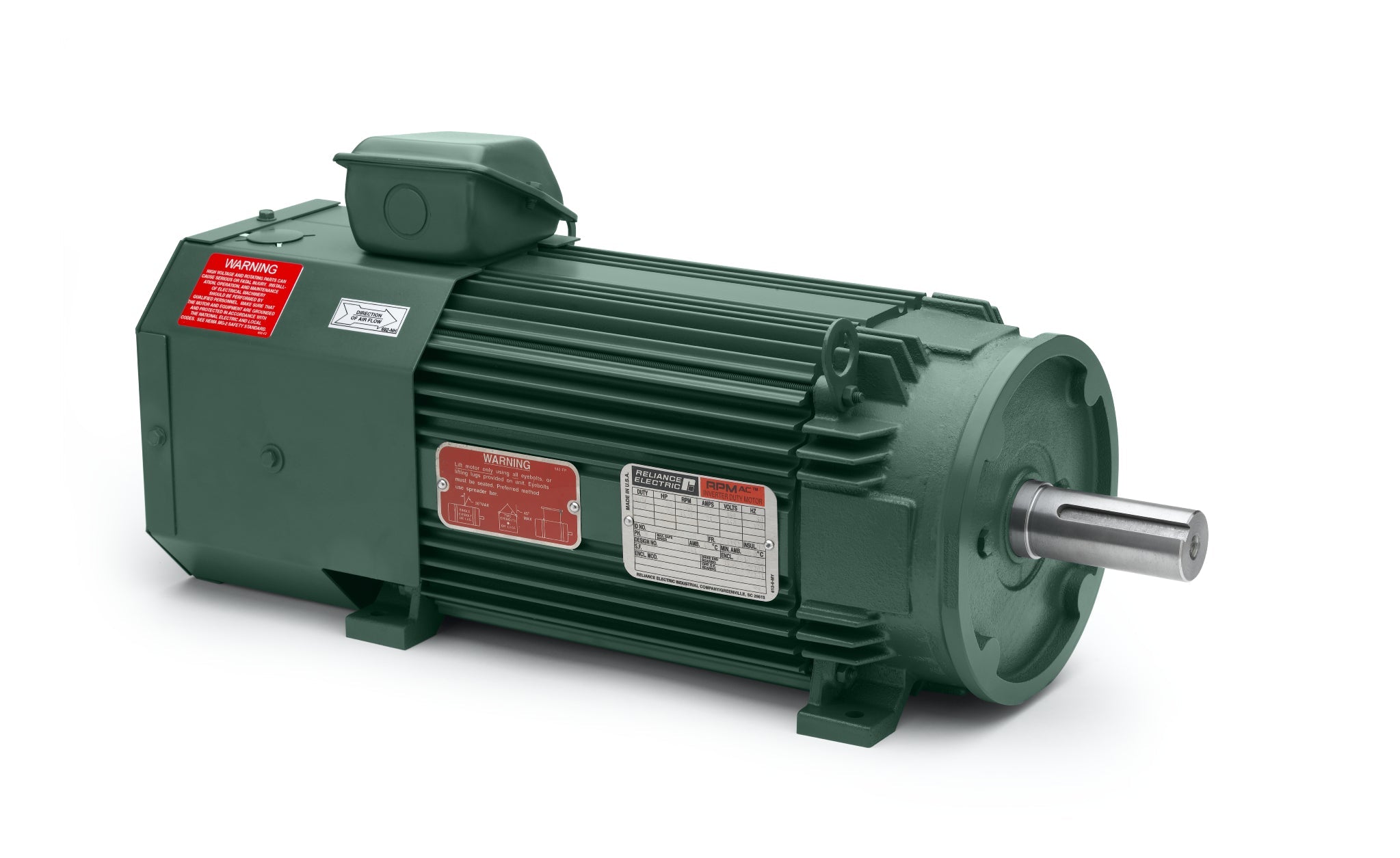

Baldor ZDPM18025C-BV - 25 HP AC Laminated Frame RPMAC Motor

Introducing the Baldor ZDPM18025C-BV, a high-performance 25 HP AC Laminated Frame RPMAC Motor designed for reliable operation in various industrial applications. With a robust 1800 RPM speed and a three-phase power supply at 60Hz, this motor is engineered to deliver exceptional efficiency and durability.

Key Features:

  • Power: 25 HP
  • Speed: 1800 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 1852C
  • Enclosure Type: TEBC (Totally Enclosed, Fan Cooled)
  • Mounting: Foot-mounted

This Baldor motor is ideal for applications requiring a reliable and efficient power source. Whether you are replacing an existing motor or upgrading your equipment, the ZDPM18025C-BV is a top choice for performance and longevity.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you are having trouble locating the right item, our team is here to help!

UPC 781568468708
Supplier Part Number ZDPM18025C-BV
Category AC Motors
Subcategory AC Laminated Frame - RPMAC Motors
Product Family General Industrial
Agency Approvals CCSA US
Approximate Weight (lbs) 382.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type No Grease
Catalog Number ZDPM18025C-BV
Current @ Voltage 26.600 A @ 460.0 V
Duty Rating CONT
Enclosure TEBC
Feedback Device TACHOMETER
Frame FL1852C
Frame Material Exposed Laminations
Frame Prefix FL
Frequency 60.00 Hz
Heater Indicator No Heater
High Voltage Full Load Amps 26.6 a
Insulation Class H
Motor Standards NEMA
Mounting Arrangement F3
Output 25.000 hp
Output @ Frequency 25.000 HP @ 60 HZ
Overall Length 27.96 IN
Phase 3
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Service Factor 1
Shaft Diameter 1.625 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Speed 1800 rpm
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Normally Closed Thermostat
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ

Motor Curves
