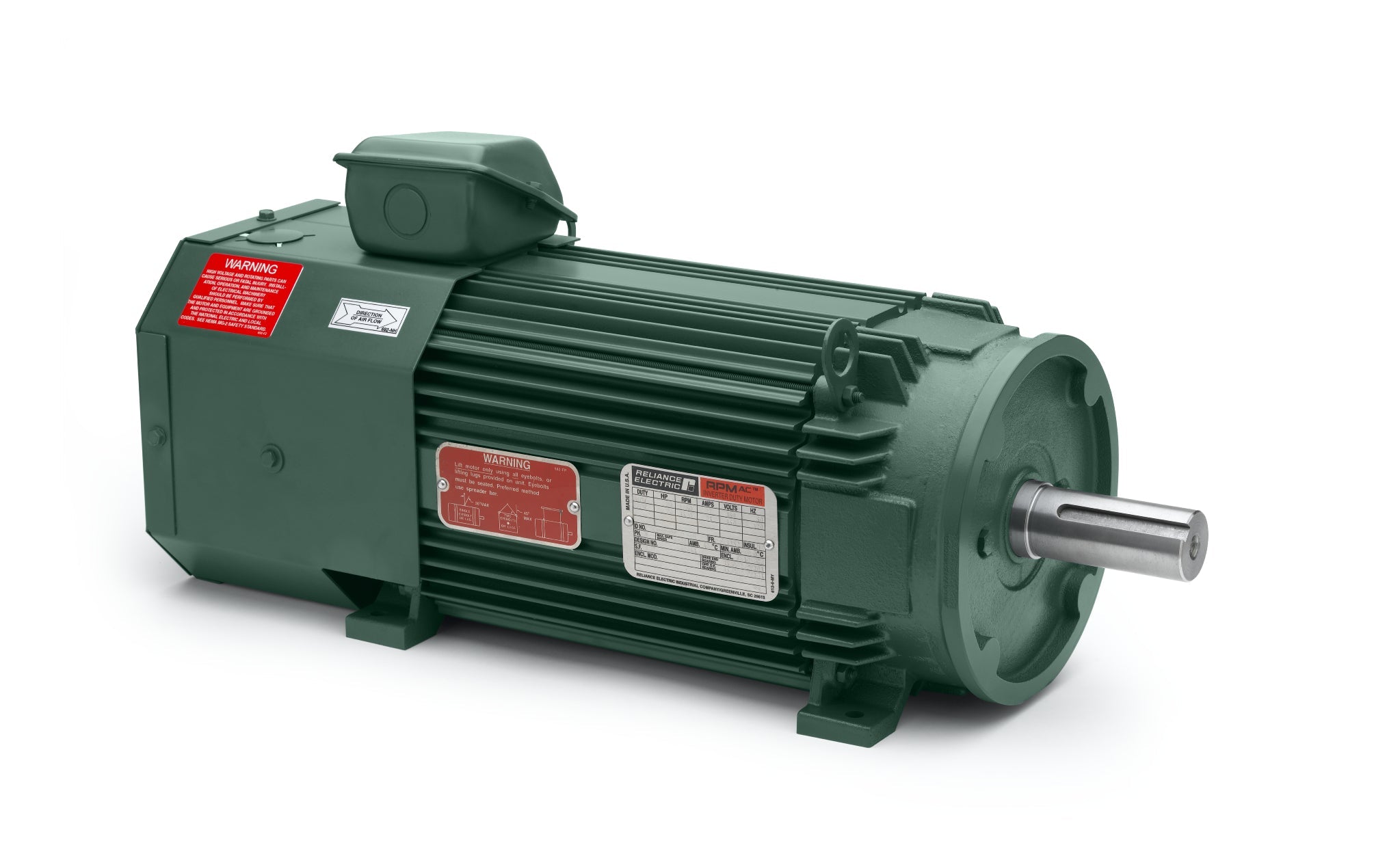

Baldor ZDPM18020C-BV - 20 HP, 1800RPM, 3 Phase, 60HZ, 1844C, Tebc, Foot, 60HZ Three Phase 20 HP 1844°C

Save $4,405.50
BaldorSKU: ZDPM18020C-BV

Price:
Sale price$13,216.50 Regular price$17,622.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor ZDPM18020C-BV - 20 HP AC Laminated Frame RPMAC Motor

Introducing the Baldor ZDPM18020C-BV, a high-performance 20 HP AC Laminated Frame RPMAC Motor designed for reliable operation in various industrial applications. With a robust 1800 RPM speed and a three-phase power supply at 60Hz, this motor is engineered to deliver exceptional efficiency and durability.

Specifications:

  • Power: 20 HP
  • Speed: 1800 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 1844C
  • Enclosure Type: TEBC (Totally Enclosed, Fan Cooled)
  • Mounting: Foot-mounted

The Baldor ZDPM18020C-BV is ideal for applications requiring a reliable and efficient motor solution. As a trusted vendor, Baldor ensures that this motor meets high standards of quality and performance.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility. If you encounter any difficulties, our team is here to help you find the right item.

UPC 781568468685
Supplier Part Number ZDPM18020C-BV
Category AC Motors
Subcategory AC Laminated Frame - RPMAC Motors
Product Family General Industrial
Agency Approvals CCSA US
Approximate Weight (lbs) 235.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type No Grease
Catalog Number ZDPM18020C-BV
Current @ Voltage 21.700 A @ 460.0 V
Duty Rating CONT
Enclosure TEBC
Feedback Device TACHOMETER
Frame FL1844C
Frame Material Aluminum
Frame Prefix FL
Frequency 60.00 Hz
Heater Indicator No Heater
High Voltage Full Load Amps 21.7 a
Insulation Class H
Motor Letter Type Permanent Magnet Brush Type
Motor Standards NEMA
Mounting Arrangement F3
Output 20.000 hp
Output @ Frequency 20.000 HP @ 60 HZ
Overall Length 25.96 IN
Phase 3
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Service Factor 1
Shaft Diameter 1.625 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Speed 1800 rpm
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Normally Closed Thermostat
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ
