Baldor ZDPM18010C-BV - 10 HP, 1800RPM, 3 Phase, 60HZ, 1831C, Tebc, Foot, 60HZ Three Phase 10 HP 1831°C

Save $4,190.00
BaldorSKU: ZDPM18010C-BV

Price:
Sale price$12,570.00 Regular price$16,760.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

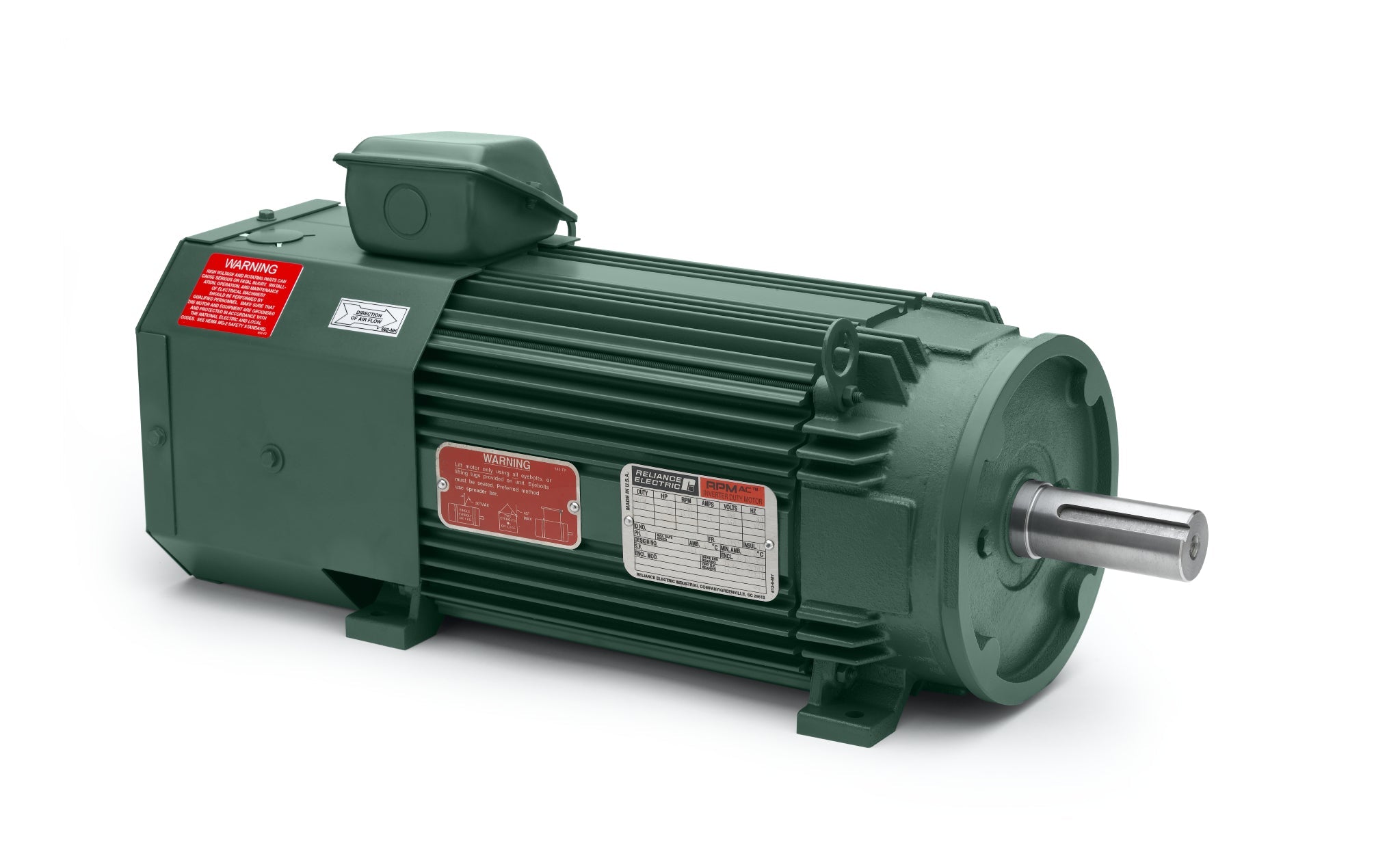

Baldor ZDPM18010C-BV - 10 HP AC Laminated Frame RPMAC Motor

Upgrade your industrial applications with the Baldor ZDPM18010C-BV, a high-performance 10 HP, 1800 RPM, 3-phase motor designed for reliability and efficiency. This motor operates at 60Hz and features a TEBC (Totally Enclosed Blower Cooled) design, ensuring optimal performance in demanding environments.

Key Specifications:

  • Power: 10 HP
  • Speed: 1800 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 1831C
  • Type: AC Laminated Frame - RPMAC Motor

As a trusted provider of pumps and parts, Pump-Stop is your preferred source for quality replacements. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568468647
Supplier Part Number ZDPM18010C-BV
Category AC Motors
Subcategory AC Laminated Frame - RPMAC Motors
Product Family General Industrial
Agency Approvals CCSA US
Approximate Weight (lbs) 170.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type No Grease
Catalog Number ZDPM18010C-BV
Current @ Voltage 10.600 A @ 460.0 V
Duty Rating CONT
Enclosure TEBC
Feedback Device TACHOMETER
Frame FL1831C
Frame Material Aluminum
Frame Prefix FL
Frequency 60.00 Hz
Heater Indicator No Heater
High Voltage Full Load Amps 10.6 a
Insulation Class H
Motor Letter Type Permanent Magnet Brush Type
Motor Standards NEMA
Mounting Arrangement F3
Output 10.000 hp
Output @ Frequency 10.000 HP @ 60 HZ
Overall Length 22.08 IN
Phase 3
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Service Factor 1
Shaft Diameter 1.375 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Speed 1800 rpm
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Normally Closed Thermostat
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ
