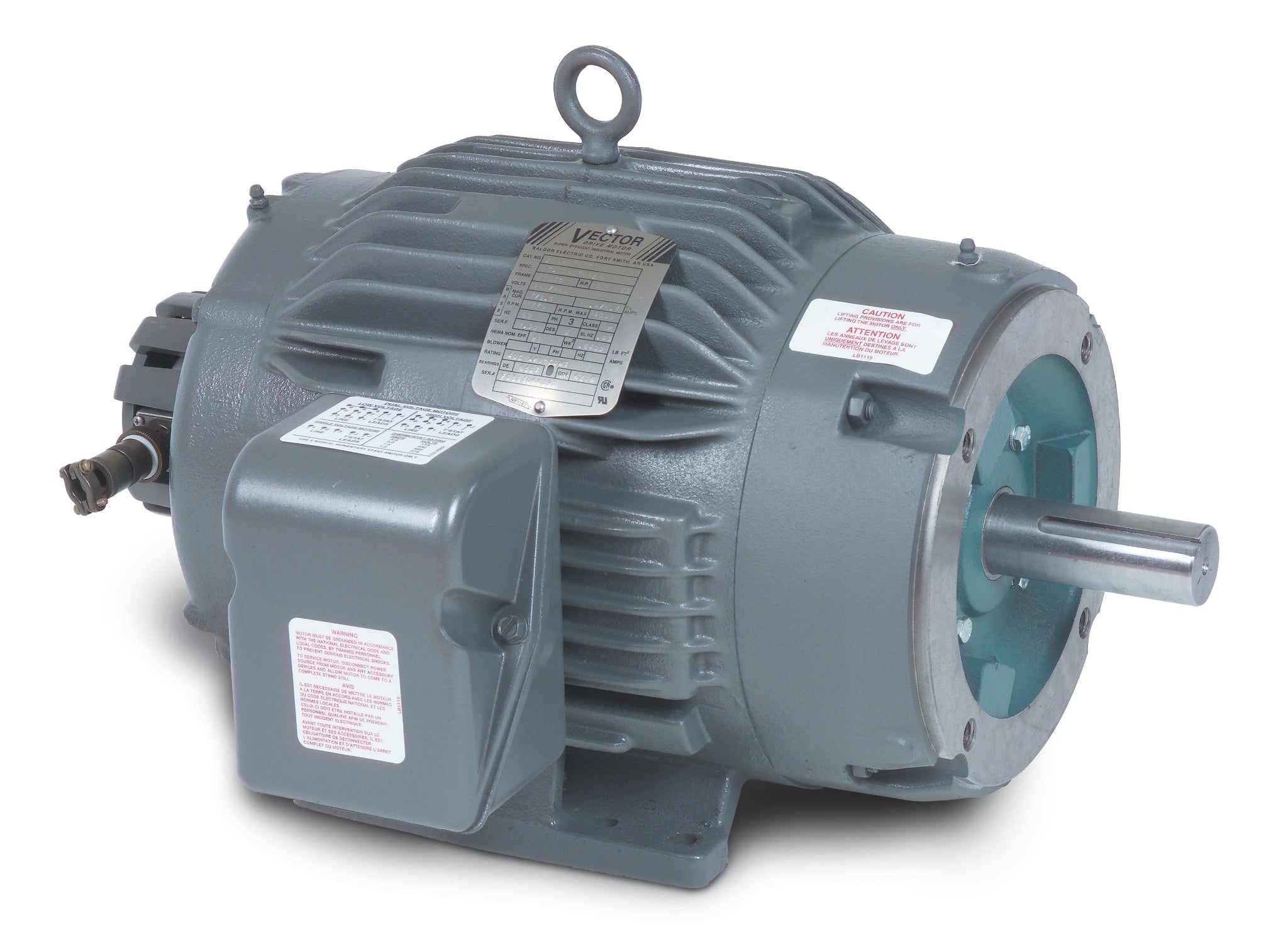

Baldor ZDNM3661T - 3 HP, 1760RPM, 3 Phase, 60HZ, 184TC, 0632M, Tenv, F1 60HZ Three Phase 3 HP 0632 M Cable

Save $1,356.75
BaldorSKU: ZDNM3661T

Price:
Sale price$4,070.25 Regular price$5,427.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor ZDNM3661T - 3 HP AC Inverter/Vector Duty Motor

Upgrade your industrial applications with the Baldor ZDNM3661T, a high-performance 3 HP AC Inverter/Vector Duty Motor. Designed for efficiency and reliability, this motor operates at 1760 RPM and is suitable for 3-phase, 60Hz applications. With a 184TC frame size and TENV (Totally Enclosed Non-Ventilated) design, it ensures optimal performance in various environments.

Key Features:

  • Power: 3 HP
  • Speed: 1760 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 184TC
  • Type: TENV (Totally Enclosed Non-Ventilated)
  • Product Code: ZDNM3661T

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor ZDNM3661T to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568156674
Supplier Part Number ZDNM3661T
Category AC Motors
Subcategory AC Inverter/Vector Duty Motors
Product Family General Purpose
Agency Approvals UR, CSA
Ambient Temperature 40 °C
Approximate Weight (lbs) 101.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number ZDNM3661T
Current @ Voltage 4.200 A @ 460.0 V, 8.400 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 88.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TENV
Feedback Device ENCODER
Frame 184TC
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Encoder/Feedback Device
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 4.2 a
Insulation Class H
Inverter Code Inverter Duty
KVA Code K
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 6000 rpm
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 16 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 0632M
Mounting Arrangement F1
Number of Poles 4
Output 3.000 hp
Output @ Frequency 3.000 HP @ 60 HZ
Overall Length 17.21 IN
Phase 3
Power Factor 76
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS NON-COMPLIANT
Service Factor 1
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1755 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Normally Closed Thermostat
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
