Baldor ZDNM3584T - 1.5 HP, 1770RPM, 3 Phase, 60HZ, 143TC, 0530M, Tenv 60HZ Three Phase 1.5 HP 0530 M Cable

Save $1,151.25
BaldorSKU: ZDNM3584T

Price:
Sale price$3,453.75 Regular price$4,605.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

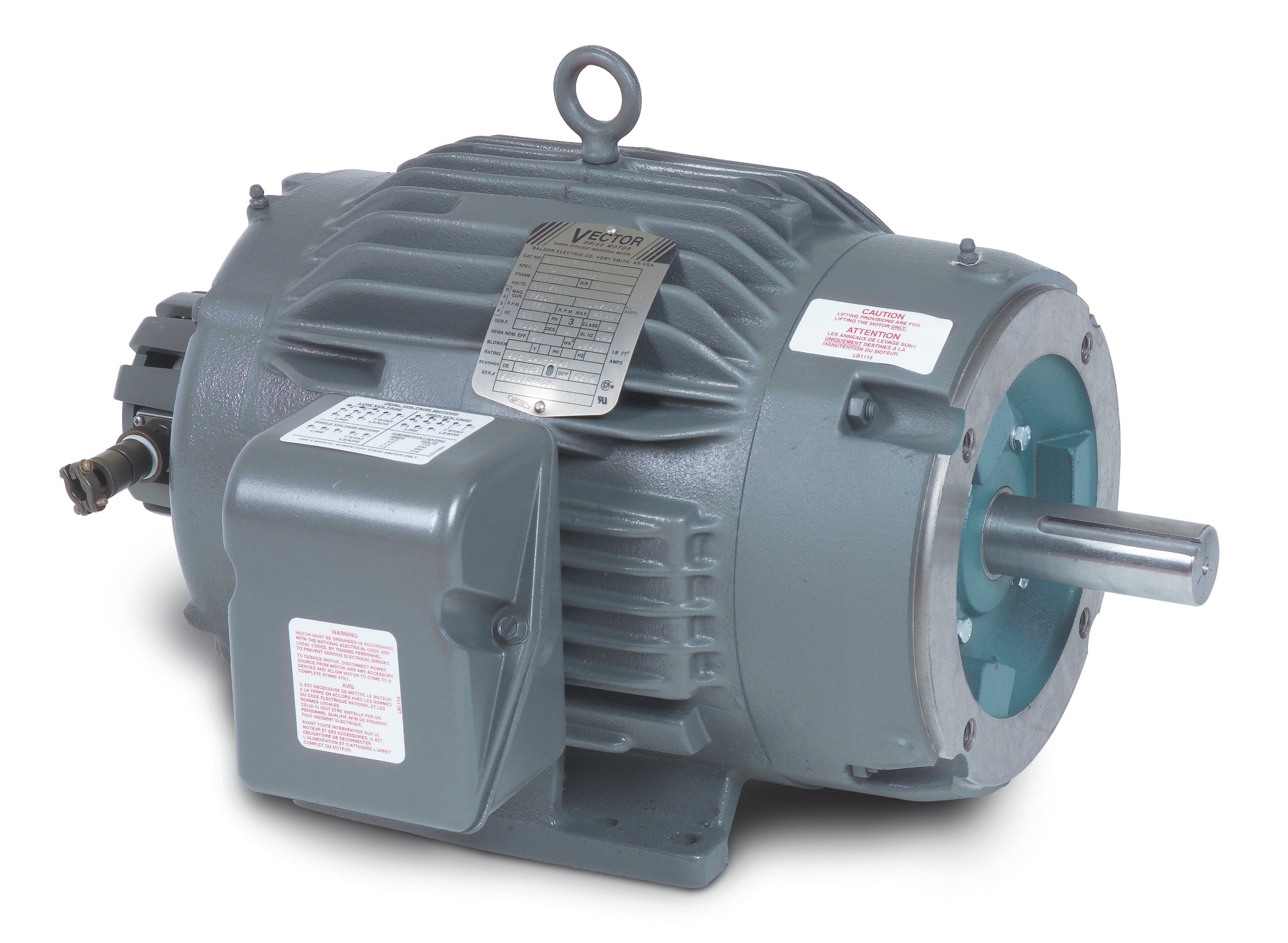

Baldor ZDNM3584T - 1.5 HP AC Inverter/Vector Duty Motor

Upgrade your industrial applications with the Baldor ZDNM3584T, a high-performance 1.5 HP AC Inverter/Vector Duty Motor. Designed for efficiency and reliability, this motor operates at 1770 RPM and is suitable for 3-phase power systems at 60Hz. With a 143TC frame size and TENV (Totally Enclosed Non-Ventilated) design, it ensures optimal performance in various environments.

Key Features:

  • Power: 1.5 HP
  • Speed: 1770 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 143TC
  • Type: TENV

This motor is ideal for applications requiring precise control and durability. At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Baldor ZDNM3584T. If you encounter any difficulties, don’t hesitate to reach out to our knowledgeable team for support.

UPC 781568156667
Supplier Part Number ZDNM3584T
Category AC Motors
Subcategory AC Inverter/Vector Duty Motors
Product Family General Purpose
Agency Approvals UR, CSA
Ambient Temperature 40 °C
Approximate Weight (lbs) 63.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number ZDNM3584T
Current @ Voltage 2.300 A @ 460.0 V, 4.600 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 86.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TENV
Feedback Device ENCODER
Frame 145TC
Frame Material Iron
Frequency 60.00 Hz
Front Face Code Encoder/Feedback Device
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 2.3 a
Insulation Class H
Inverter Code Inverter Duty
KVA Code M
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 6000 rpm
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 0530M
Mounting Arrangement F1
Number of Poles 4
Output 1.500 hp
Output @ Frequency 1.500 HP @ 60 HZ
Overall Length 14.65 IN
Phase 3
Power Factor 72
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1770 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Normally Closed Thermostat
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
