Baldor ZDNM3581T - 1 HP, 1770RPM, 3 Phase, 60HZ, 143TC, 0522M, Tenv, F1 60HZ Three Phase 1 HP 0522 M Cable

Save $1,100.00
BaldorSKU: ZDNM3581T

Price:
Sale price$3,300.00 Regular price$4,400.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

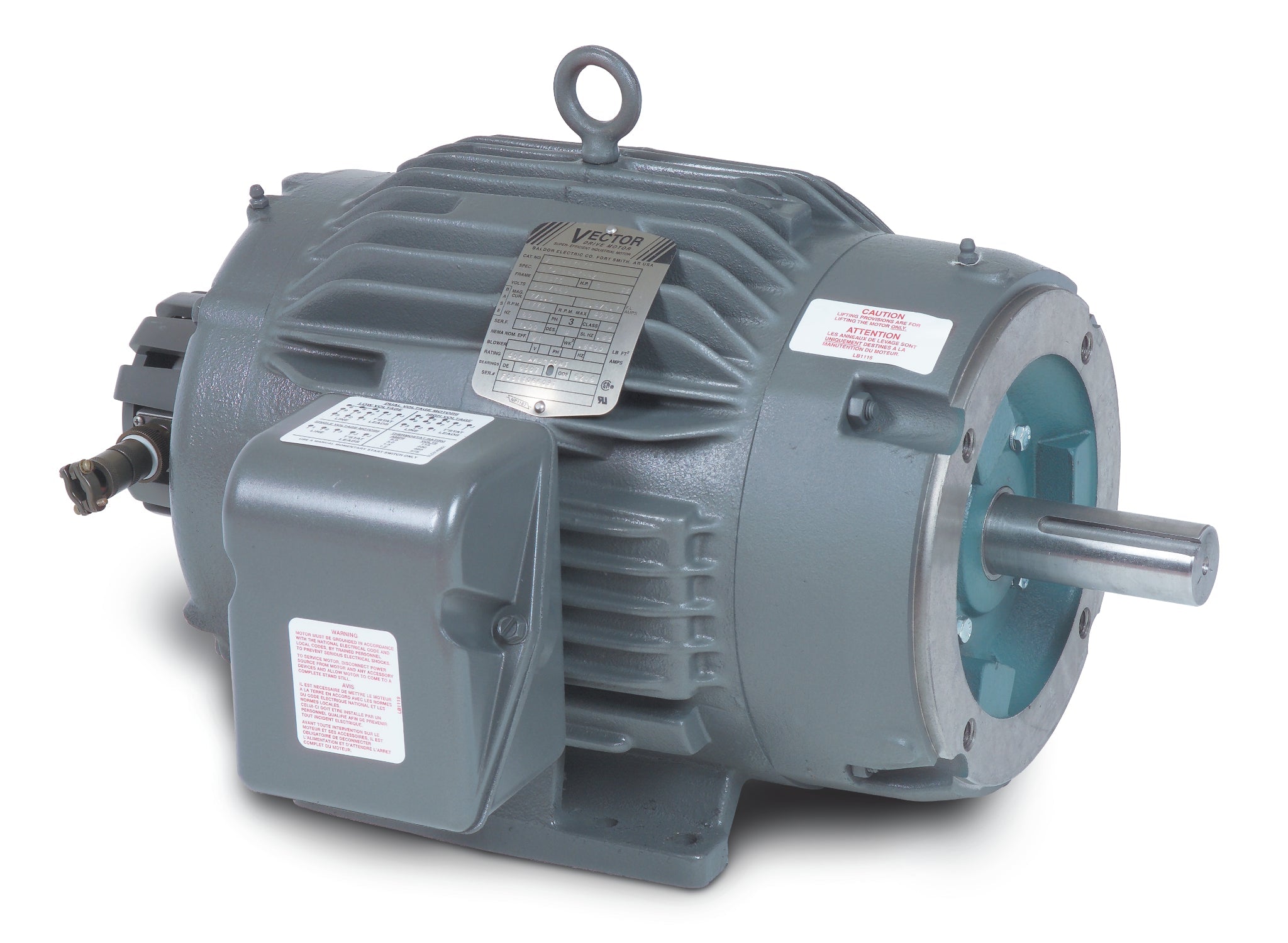

Baldor ZDNM3581T - 1 HP AC Inverter/Vector Duty Motor

Discover the reliability and performance of the Baldor ZDNM3581T, a high-quality 1 HP AC Inverter/Vector Duty Motor designed for demanding applications. With a speed of 1770 RPM and a robust 3-phase, 60Hz operation, this motor is perfect for various industrial and commercial uses.

  • Power: 1 HP
  • Speed: 1770 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 143TC
  • Type: TENV (Totally Enclosed Non-Ventilated)
  • Product Code: ZDNM3581T

This motor is engineered for efficiency and durability, making it an ideal choice for applications requiring consistent performance. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, ensuring you find the right components for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor ZDNM3581T to ensure compatibility. Don’t hesitate to reach out if you need help!

UPC 781568156650
Supplier Part Number ZDNM3581T
Category AC Motors
Subcategory AC Inverter/Vector Duty Motors
Product Family General Purpose
Agency Approvals UR, CSA
Ambient Temperature 40 °C
Approximate Weight (lbs) 59.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number ZDNM3581T
Current @ Voltage 1.600 A @ 460.0 V, 3.200 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 85.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TENV
Feedback Device ENCODER
Frame 143TC
Frame Material Iron
Frequency 60.00 Hz
Front Face Code Encoder/Feedback Device
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.6 a
Insulation Class H
Inverter Code Inverter Ready
KVA Code N
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 6000 rpm
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 0522M
Mounting Arrangement F1
Number of Poles 4
Output 1.000 hp
Output @ Frequency 1.000 HP @ 60 HZ
Overall Length 14.65 IN
Phase 3
Power Factor 68
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1770 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Normally Closed Thermostat
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
