Baldor ZDNM2334T - 20 HP, 1780RPM, 3 Phase, 60HZ, 284T, 1056M, Tenv, F1 60HZ Three Phase 20 HP 1056 M Cable

Save $2,347.50
BaldorSKU: ZDNM2334T

Price:
Sale price$7,042.50 Regular price$9,390.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

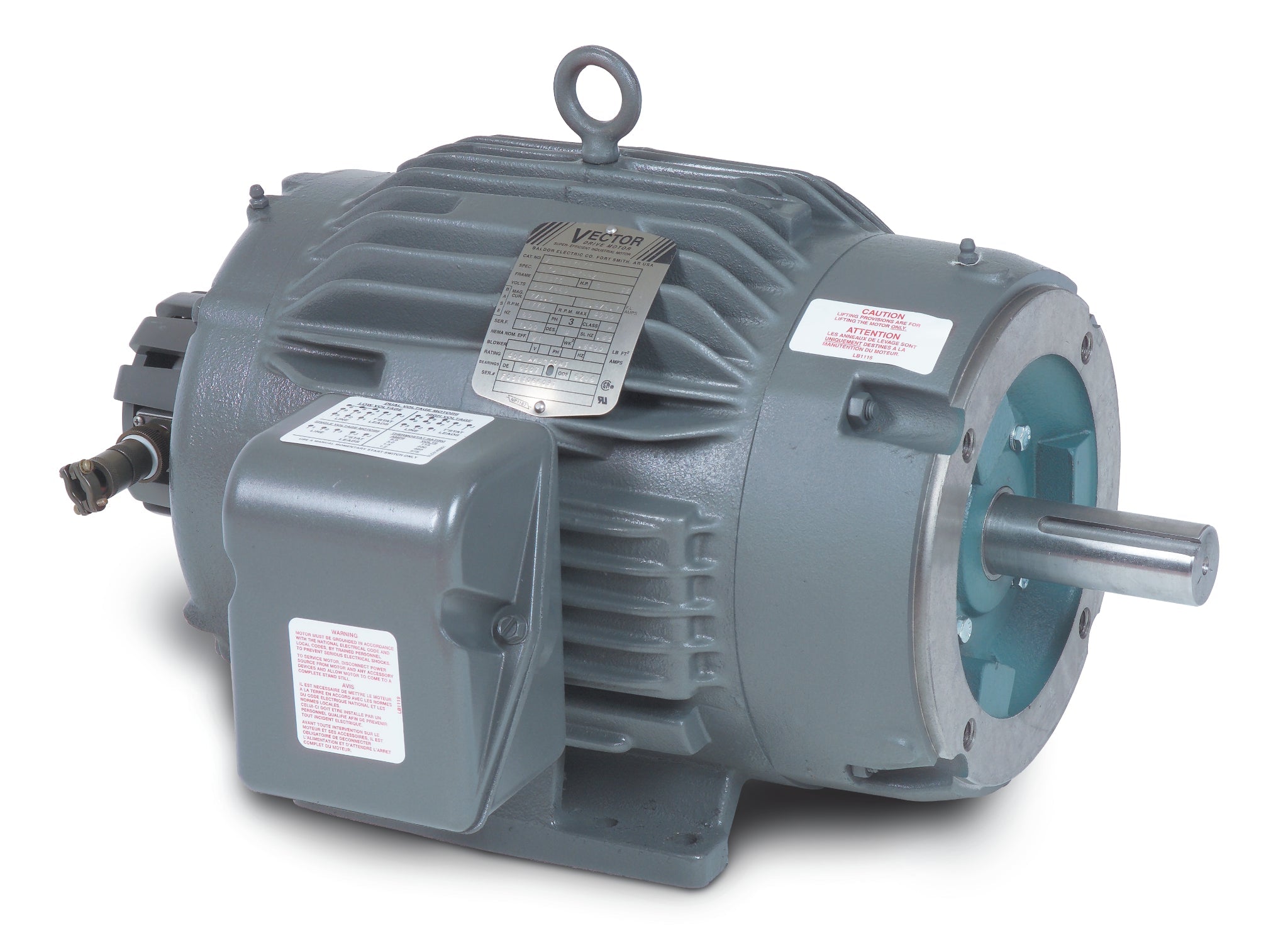

Baldor ZDNM2334T - 20 HP AC Inverter/Vector Duty Motor

Discover the power and efficiency of the Baldor ZDNM2334T, a high-performance 20 HP AC Inverter/Vector Duty Motor designed for demanding applications. Operating at 1780 RPM and compatible with 3-phase, 60Hz systems, this motor is ideal for a variety of industrial uses.

  • Power: 20 HP
  • Speed: 1780 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 284T
  • Enclosure Type: Totally Enclosed Non-Ventilated (TENV)
  • Mounting Type: F1

This Baldor-Reliance motor is engineered for durability and reliability, making it a perfect choice for your industrial needs. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your application.

If you have questions or need assistance in finding the right pump, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor ZDNM2334T to ensure compatibility. Don't hesitate to reach out if you need help!

UPC 781568309537
Supplier Part Number ZDNM2334T
Category AC Motors
Subcategory AC Inverter/Vector Duty Motors
Product Family General Purpose
Agency Approvals UR, CSA
Ambient Temperature 40 °C
Approximate Weight (lbs) 405.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number ZDNM2334T
Current @ Voltage 26.000 A @ 460.0 V, 52.000 A @ 230.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 93.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TENV
Feedback Device ENCODER
Frame 284T
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Encoder/Feedback Device
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 26.0 a
Insulation Class H
Inverter Code Inverter Duty
IP Rating NONE
KVA Code K
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 4000 rpm
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 10 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 1056M
Mounting Arrangement F1
Number of Poles 4
Output 20.000 hp
Output @ Frequency 20.000 HP @ 60 HZ
Overall Length 27.36 IN
Phase 3
Power Factor 77
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS NON-COMPLIANT
Service Factor 1
Shaft Diameter 1.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1780 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Normally Closed Thermostat
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
