Baldor ZDNM2237T - 7.5 HP, 1765RPM, 3 Phase, 60HZ, 256TC, 0932M, Tenv 60HZ Three Phase 7.5 HP 0932 M Cable

Save $1,772.25
BaldorSKU: ZDNM2237T

Price:
Sale price$5,316.75 Regular price$7,089.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

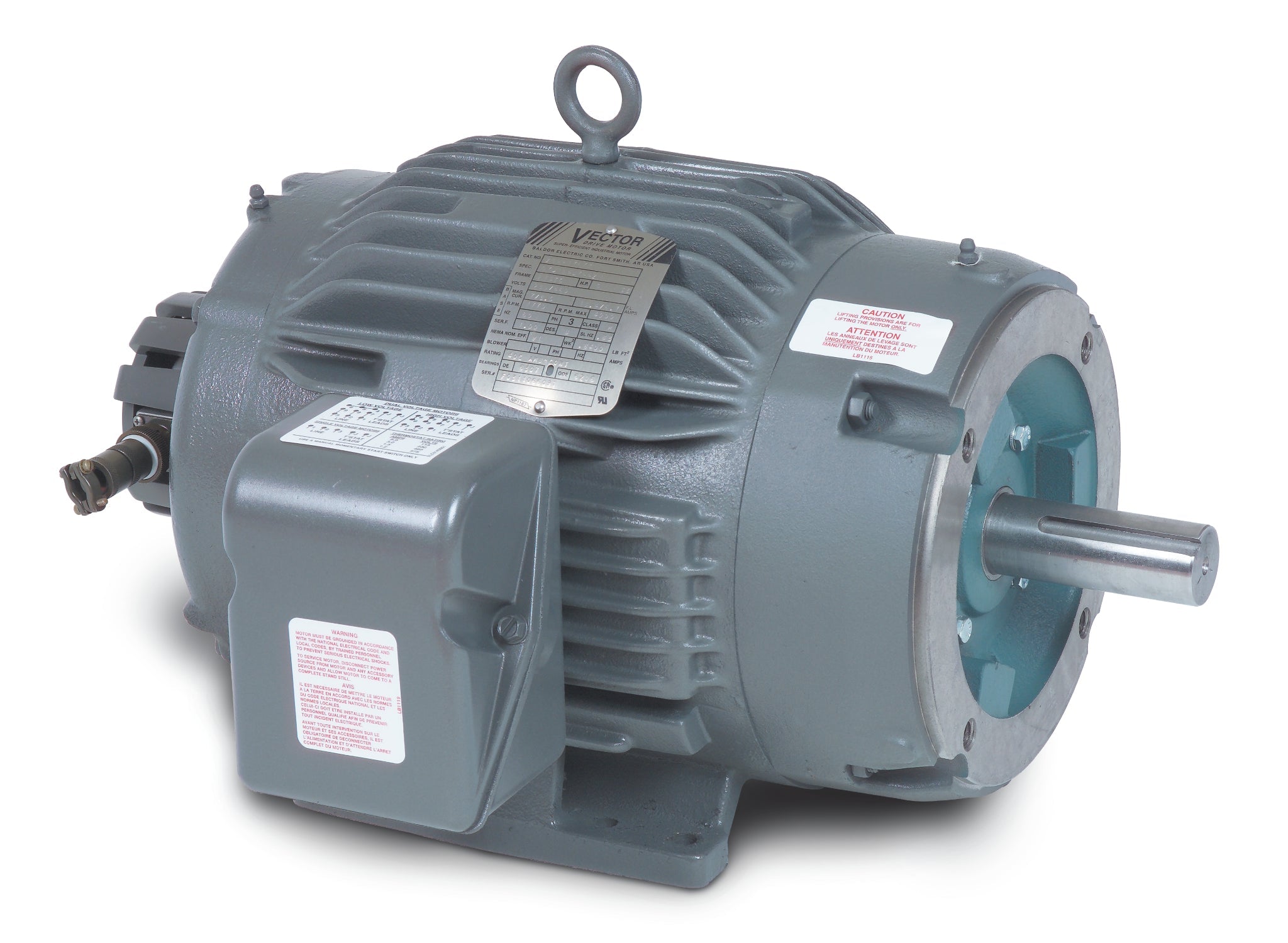

Baldor ZDNM2237T - 7.5 HP AC Inverter/Vector Duty Motor

Upgrade your industrial applications with the Baldor ZDNM2237T, a high-performance 7.5 HP AC Inverter/Vector Duty Motor. Operating at 1765 RPM and designed for 3-phase power at 60Hz, this motor is engineered for efficiency and reliability in demanding environments.

Specifications:

  • Power: 7.5 HP
  • Speed: 1765 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 256TC
  • Product Code: ZDNM2237T
  • Type: TENV (Totally Enclosed Non-Ventilated)

This Baldor-Reliance motor is perfect for a variety of applications, providing robust performance and durability. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor ZDNM2237T to ensure compatibility. Don’t hesitate to reach out if you need help!

UPC 781568156636
Supplier Part Number ZDNM2237T
Category AC Motors
Subcategory AC Inverter/Vector Duty Motors
Product Family General Purpose
Agency Approvals UR, CSA
Ambient Temperature 40 °C
Approximate Weight (lbs) 242.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number ZDNM2237T
Current @ Voltage 18.200 A @ 230.0 V, 9.100 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.7 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TENV
Feedback Device ENCODER
Frame 256TC
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Encoder/Feedback Device
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 9.1 a
Insulation Class H
Inverter Code Inverter Duty
IP Rating NONE
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 5000 rpm
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 0932M
Mounting Arrangement F1
Number of Poles 4
Output 7.500 hp
Output @ Frequency 7.500 HP @ 60 HZ
Overall Length 24.11 IN
Phase 3
Power Factor 81
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS NON-COMPLIANT
Service Factor 1
Shaft Diameter 1.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1765 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Normally Closed Thermostat
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
