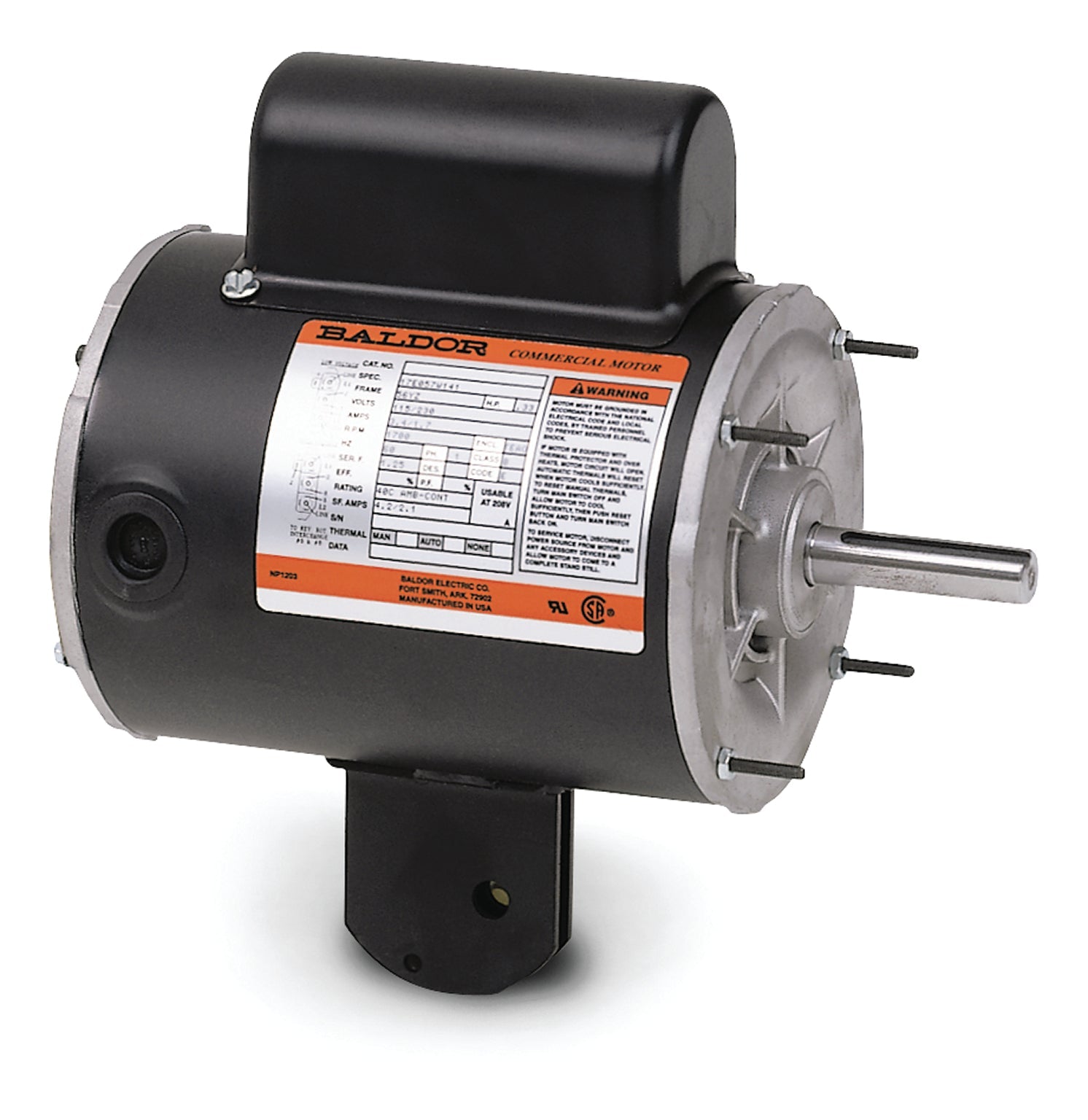

Baldor YPC364A - .5 HP, 1075RPM, 1 Phase, 60HZ, 48YZ, 3420C, Teao, F1 60HZ Single Phase 5 HP 3420°C

Save $173.75
BaldorSKU: YPC364A

Price:
Sale price$521.25 Regular price$695.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor-Reliance Direct Drive Fan Motors:

.5HP, 1075RPM, 1PH, 60HZ, 48YZ, 3420C, TEAO, F1

Product Code: YPC364A

UPC 781568407714
Supplier Part Number YPC364A
Category AC Motors
Subcategory Direct Drive Fan Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 27.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Yoke Pedestal
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number YPC364A
Current @ Voltage 5.400 A @ 115.0 V
Design Code -
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 68.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEAO
Feedback Device NO FEEDBACK
Frame 48YZ
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Terminal Panel
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 5.4 a
Insulation Class B
Inverter Code Not Inverter
KVA Code B
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Terminal Panel Or Lead Hole
Motor Lead Quantity/Wire Size 5 @ 18 AWG
Motor Lead Termination None
Motor Letter Type Oil Capacitor Start and Run
Motor Standards NEMA
Motor Type 3420C
Mounting Arrangement F1
Number of Poles 6
Output 0.500 hp
Output @ Frequency .500 HP @ 60 HZ
Overall Length 11.31 IN
Phase 1
Power Factor 93
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 0.500 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible: Connected Standard
Shaft Slinger Indicator Shaft Slinger
Speed 1075 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 115 V
Voltage @ Frequency 115.0 V @ 60 HZ
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location WG
Winding Thermal 2 None
