Baldor YPC244A - .33 HP, 1625RPM, 1 Phase, 60HZ, 48YZ, 3411C, Teao, F 60HZ Single Phase 33 HP 3411°C

Save $132.25
BaldorSKU: YPC244A

Price:
Sale price$396.75 Regular price$529.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

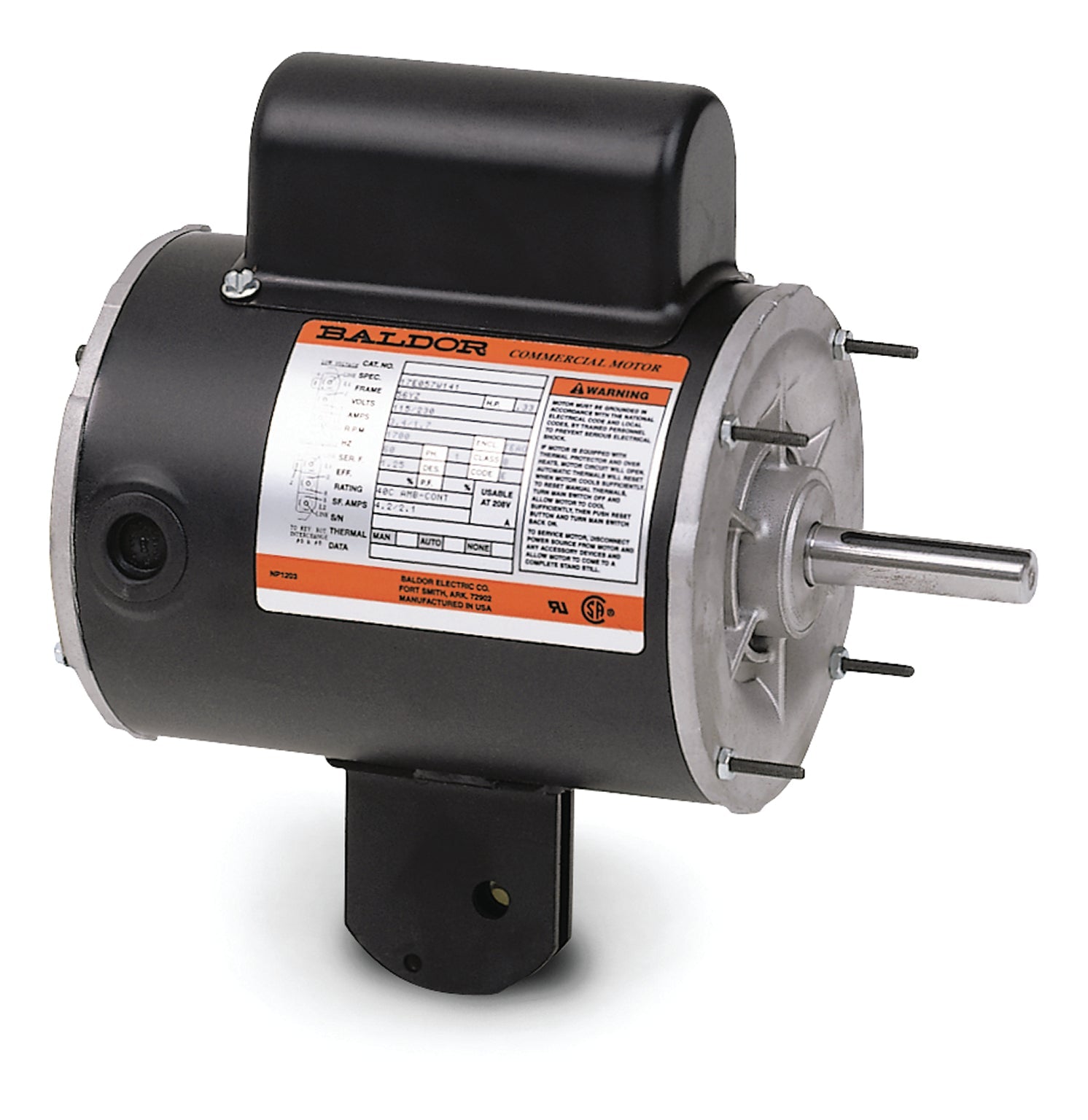

Baldor YPC244A Direct Drive Fan Motor

Upgrade your equipment with the Baldor YPC244A, a high-performance direct drive fan motor designed for reliability and efficiency. With a power output of .33 HP and a speed of 1625 RPM, this single-phase motor operates at 60HZ, making it ideal for various applications.

Key specifications include:

  • Power: .33 HP
  • Speed: 1625 RPM
  • Phase: 1
  • Frequency: 60HZ
  • Frame: 48YZ
  • Enclosure: TEAO (Totally Enclosed Air Over)
  • Temperature Class: F
  • Product Code: YPC244A

This motor is perfect for those seeking a dependable solution for their fan applications. At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties, don’t hesitate to reach out to our knowledgeable team for support.

UPC 781568407653
Supplier Part Number YPC244A
Category AC Motors
Subcategory Direct Drive Fan Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 21.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Yoke Pedestal
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number YPC244A
Current @ Voltage 3.400 A @ 115.0 V
Design Code -
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 66.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEAO
Feedback Device NO FEEDBACK
Frame 48YZ
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Terminal Panel
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 3.4 a
Insulation Class B
Inverter Code Not Inverter
KVA Code B
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Terminal Panel Or Lead Hole
Motor Lead Quantity/Wire Size 5 @ 18 AWG
Motor Lead Termination None
Motor Letter Type Oil Capacitor Start and Run
Motor Standards NEMA
Motor Type 3411C
Mounting Arrangement F1
Number of Poles 4
Output 0.330 hp
Output @ Frequency .330 HP @ 60 HZ
Overall Length 10.68 IN
Phase 1
Power Factor 96
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS NON-COMPLIANT
Service Factor 1
Shaft Diameter 0.500 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible: Connected Standard
Shaft Slinger Indicator Shaft Slinger
Speed 1625 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 115 V
Voltage @ Frequency 115.0 V @ 60 HZ
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location WG
Winding Thermal 2 None
