Baldor YPC164A - .25 HP, 1075RPM, 1 Phase, 60HZ, 48YZ, 3411C, Teao, F 60HZ Single Phase 25 HP 3411°C

Save $138.75
BaldorSKU: YPC164A

Price:
Sale price$416.25 Regular price$555.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

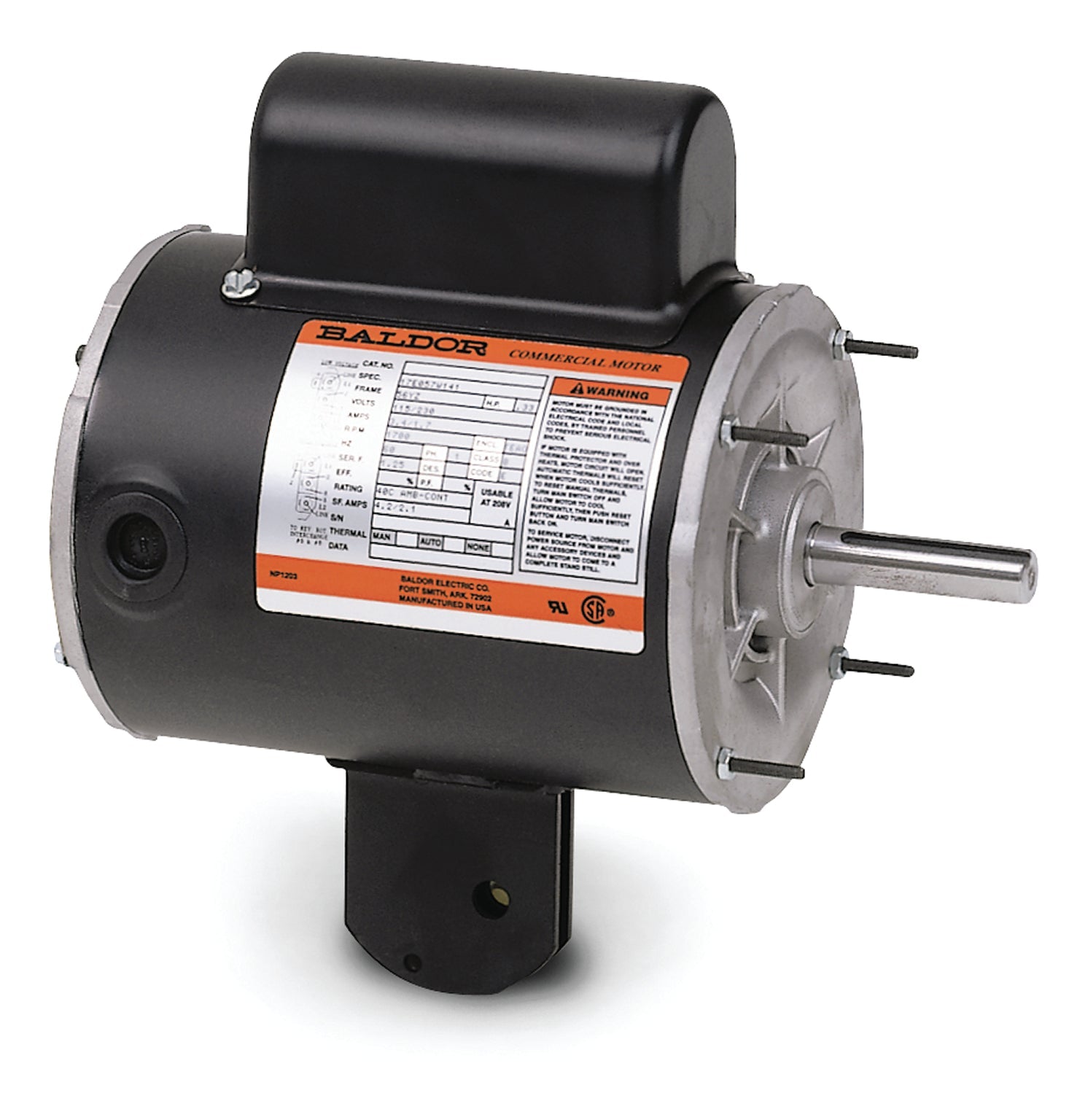

Baldor YPC164A Direct Drive Fan Motor

Upgrade your equipment with the Baldor YPC164A, a reliable and efficient direct drive fan motor designed for optimal performance. This motor features a power rating of .25 HP and operates at 1075 RPM, making it ideal for various applications requiring consistent airflow and durability.

Specifications:

  • Power: .25 HP
  • Speed: 1075 RPM
  • Phase: 1 Phase
  • Frequency: 60 Hz
  • Frame: 48YZ
  • Enclosure: TEAO (Totally Enclosed Air Over)
  • Product Code: YPC164A

This Baldor-Reliance motor is perfect for applications that require a dependable and efficient solution. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right fit for your needs.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you have any questions or need assistance in finding the right item, please don't hesitate to call us at (781) 281-8905.

UPC 781568407646
Supplier Part Number YPC164A
Category AC Motors
Subcategory Direct Drive Fan Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 20.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Yoke Pedestal
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number YPC164A
Current @ Voltage 2.800 A @ 115.0 V
Design Code -
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 62.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEAO
Feedback Device NO FEEDBACK
Frame 48YZ
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Terminal Panel
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 2.8 a
Insulation Class B
Inverter Code Not Inverter
KVA Code -
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Terminal Panel Or Lead Hole
Motor Lead Quantity/Wire Size 5 @ 18 AWG
Motor Lead Termination None
Motor Letter Type Oil Capacitor Start and Run
Motor Standards NEMA
Motor Type 3411C
Mounting Arrangement F1
Number of Poles 6
Output 0.250 hp
Output @ Frequency .250 HP @ 60 HZ
Overall Length 10.68 IN
Phase 1
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS NON-COMPLIANT
Service Factor 1
Shaft Diameter 0.500 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible: Connected Standard
Shaft Slinger Indicator Shaft Slinger
Speed 1075 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 115 V
Voltage @ Frequency 115.0 V @ 60 HZ
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location WG
Winding Thermal 2 None
