Description
Baldor Replacement Part — Component

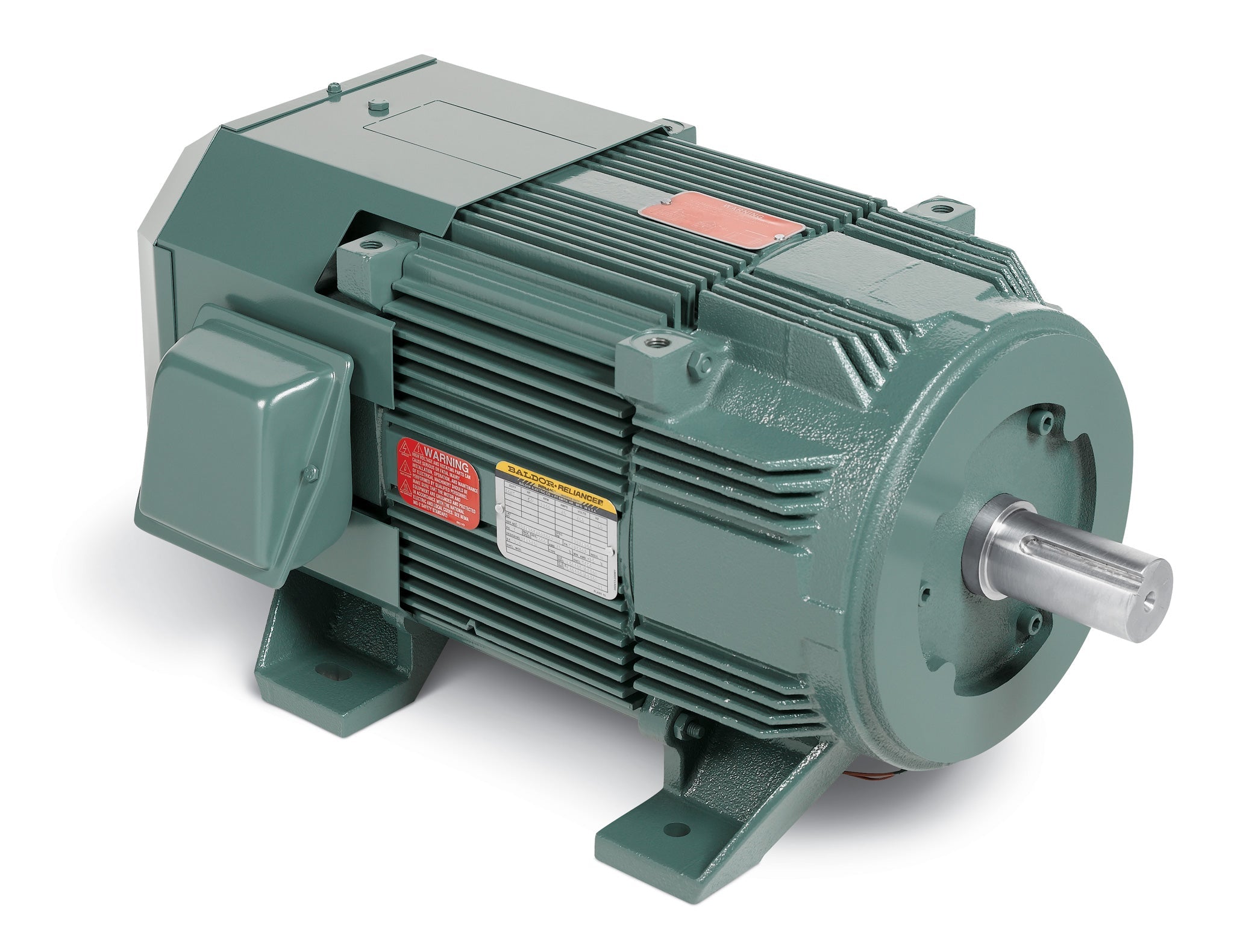

The Baldor XEFRPM32504 for Baldor pump systems.
Part Specifications
| Part Number | XEFRPM32504 |
| Brand | Baldor |
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
- UPC
- 781568837702
- Supplier Part Number
- XEFRPM32504
- Category
- AC Motors
- Subcategory
- RPM XE eXtreme Efficient Motors
- Product Family
- Fan
- Agency Approvals
- CCSA US, NEMA_PREMIUM
- Approximate Weight (lbs)
- 571.0
- Auxillary Box
- No Auxillary Box
- Base Indicator
- Rigid
- Bearing Grease Type
- Polyrex EM (-20F +300F)
- Catalog Number
- XEFRPM32504
- Constant Torque Speed Range
- 1-60
- Current @ Voltage
- 49.000 A @ 460.0 V
- Duty Rating
- CONT
- Enclosure
- TEFC
- Feedback Device
- NO FEEDBACK
- Frame
- HL326T
- Frame Material
- Exposed Laminations
- Frame Prefix
- HL
- Frequency
- 60.00 Hz
- Heater Indicator
- No Heater
- High Voltage Full Load Amps
- 49.0 a
- Insulation Class
- H
- IP Rating
- IP54
- KVA Code
- F
- Motor Letter Type
- CP
- Motor Standards
- NEMA
- Mounting Arrangement
- F1
- Output
- 50.000 hp
- Output @ Frequency
- 50.000 HP @ 60 HZ
- Overall Length
- 30.81 IN
- Phase
- 3
- Pulley End Bearing Type
- Ball
- Pulley Face Code
- Other
- Service Factor
- 1.15
- Shaft Diameter
- 2.124 IN
- Shaft Ground Indicator
- No Shaft Grounding
- Shaft Rotation
- Reversible
- Speed
- 1800 rpm
- Synchronous Speed
- 1,800 rpm
- Synchronous Speed @ Frequency
- 1800 RPM @ 60 HZ
- Thermal Device - Bearing
- None
- Thermal Device - Winding
- None
- Voltage
- 460 V
- Voltage @ Frequency
- 460.0 V @ 60 HZ
