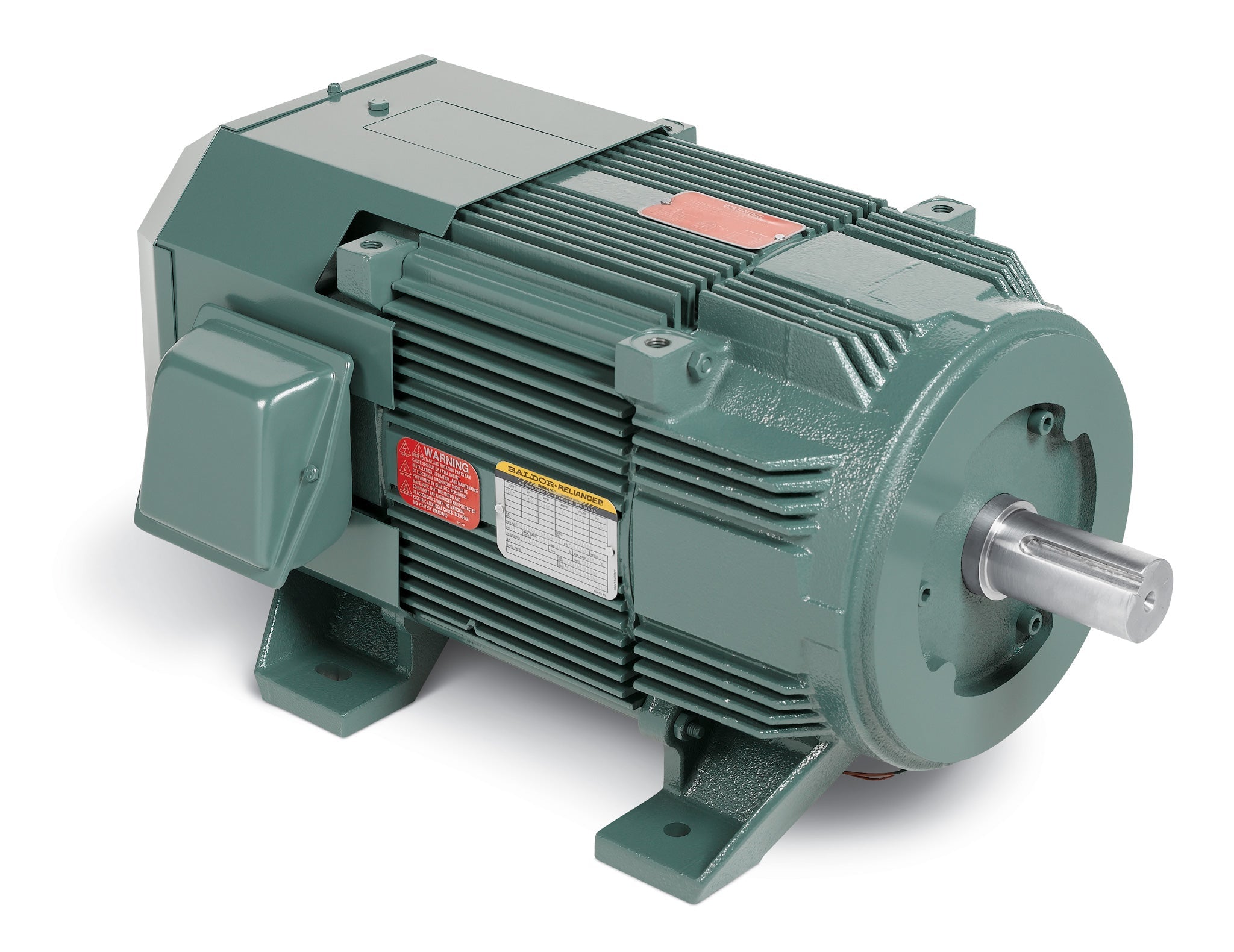

Baldor XEFRPM25204 - 20 HP, 1800, 460V, HL256T, TEFC, F1 460V 20 HP

Save $2,863.00
BaldorSKU: XEFRPM25204

Price:
Sale price$8,589.00 Regular price$11,452.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor-Reliance RPM XE eXtreme Efficient Motor - 20 HP

Introducing the Baldor XEFRPM25204, a high-performance 20 HP motor designed for efficiency and reliability. Operating at 1800 RPM and powered by 460V, this motor is ideal for a variety of industrial applications. With its TEFC (Totally Enclosed Fan Cooled) design, it ensures optimal performance in challenging environments while minimizing maintenance needs.

Key Features:

  • Power: 20 HP
  • Speed: 1800 RPM
  • Voltage: 460V
  • Frame: HL256T
  • Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: XEFRPM25204

As a trusted supplier, Pump-Stop.com is your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568837665
Supplier Part Number XEFRPM25204
Category AC Motors
Subcategory RPM XE eXtreme Efficient Motors
Product Family Fan - Centrifugal
Agency Approvals CCSA US, NEMA_PREMIUM
Approximate Weight (lbs) 231.001
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number XEFRPM25204
Constant Torque Speed Range 1-60
Current @ Voltage 20.000 A @ 460.0 V
Duty Rating CONT
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame HL256T
Frame Material Exposed Laminations
Frame Prefix HL
Frequency 60.00 Hz
Heater Indicator No Heater
High Voltage Full Load Amps 20.0 a
Insulation Class H
IP Rating IP54
KVA Code G
Motor Letter Type CP
Motor Standards NEMA
Mounting Arrangement F1
Output 20.000 hp
Output @ Frequency 20.000 HP @ 60 HZ
Overall Length 24.89 IN
Phase 3
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1.15
Shaft Diameter 1.625 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Speed 1800 rpm
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Normally Closed Thermostat
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ
