Baldor WDM3542 - .75 HP, 1765RPM, 3 Phase, 60HZ, 56, 3514M, Tenv, F1 60HZ Three Phase 75 HP 3514 M Cable

Save $273.25
BaldorSKU: WDM3542

Price:
Sale price$819.75 Regular price$1,093.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

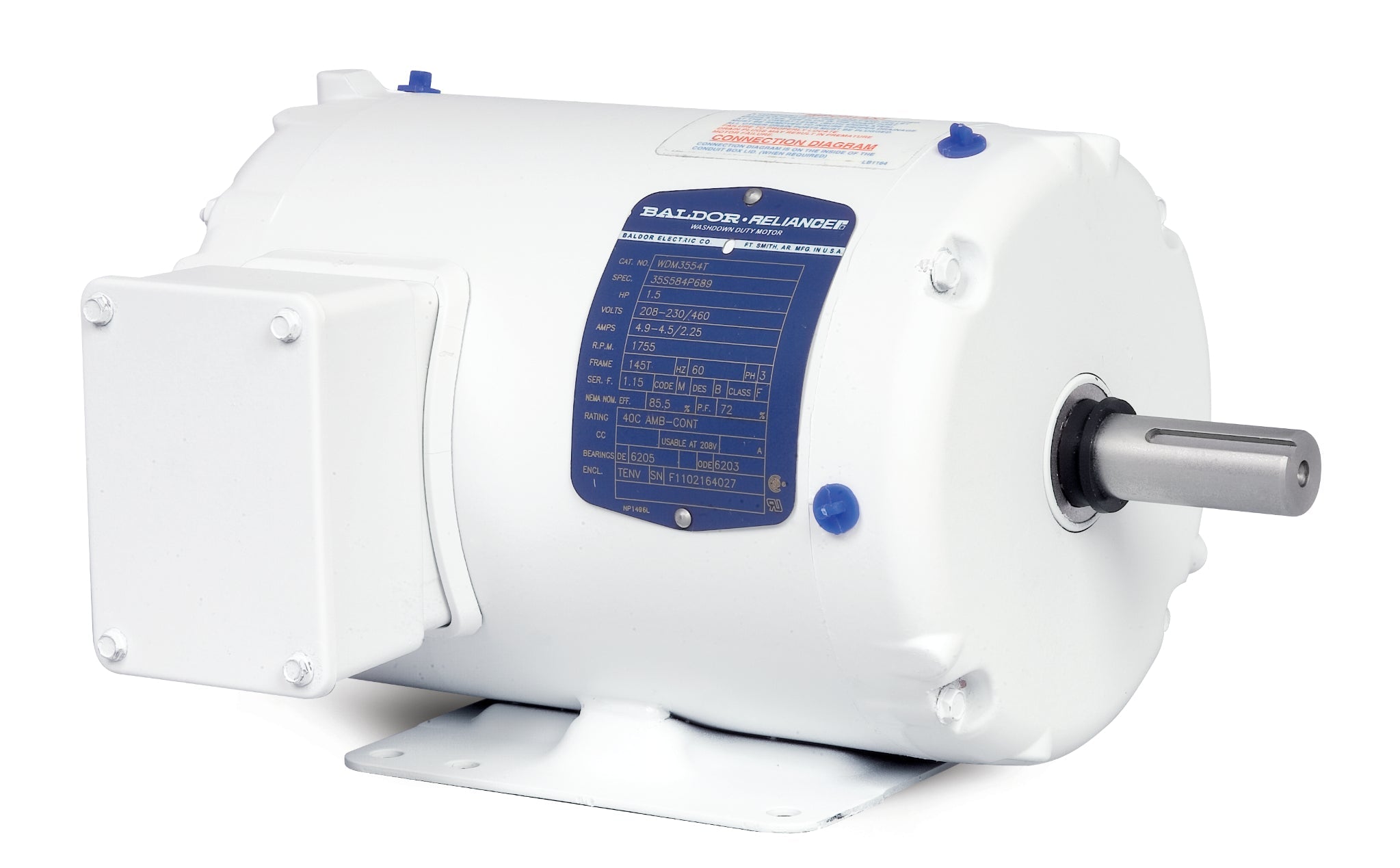

Baldor-Reliance White Washdown Motor - Model WDM3542

Introducing the Baldor WDM3542, a high-performance .75 HP White Washdown Motor designed for demanding applications. Operating at 1765 RPM and featuring a robust 3-phase, 60Hz configuration, this motor is ideal for environments requiring durability and reliability.

Specifications:

  • Power: .75 HP
  • Speed: 1765 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame: 56
  • Enclosure: TENV (Totally Enclosed Non-Ventilated)
  • Product Code: WDM3542

This motor is perfect for washdown applications, providing excellent protection against moisture and contaminants. As a trusted source for replacement pumps and parts, Pump-Stop.com ensures you have access to quality products like the Baldor WDM3542. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties, our team is here to help you find the right item.

UPC 781568108437
Supplier Part Number WDM3542
Category AC Motors
Subcategory White Washdown Motors
Product Family Wash Down
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 30.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number WDM3542
Current @ Voltage 1.200 A @ 460.0 V, 2.400 A @ 230.0 V, 2.420 A @ 208.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 82.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TENV
Feedback Device NO FEEDBACK
Frame 56
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.2 a
Insulation Class F
Inverter Code Inverter Duty
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3514M
Mounting Arrangement F1
Number of Poles 4
Output 0.750 hp
Output @ Frequency .750 HP @ 60 HZ
Overall Length 11.06 IN
Phase 3
Power Factor 74
Pulley End Bearing Type Sealed Bearing
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1765 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
