Baldor WDL3514T - 1.5 HP, 1725RPM, 1 Phase, 60HZ, 143T, 3532LC, TEFC 60HZ Single Phase 1.5 HP

Save $427.00
BaldorSKU: WDL3514T

Price:
Sale price$1,281.00 Regular price$1,708.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

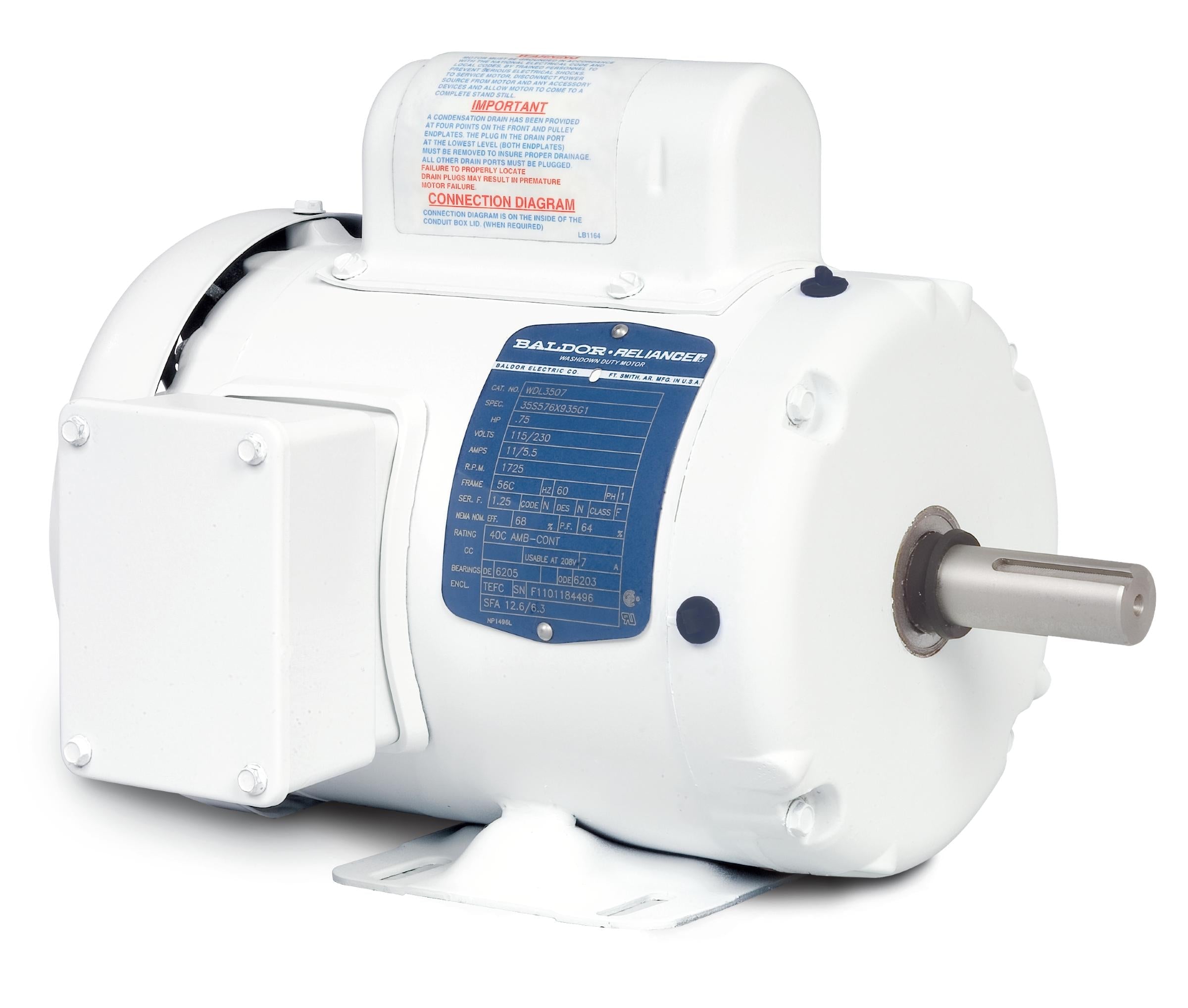

Baldor WDL3514T - 1.5 HP White Washdown Motor

The Baldor WDL3514T is a high-performance 1.5 HP White Washdown Motor designed for durability and efficiency in demanding environments. Operating at 1725 RPM, this single-phase motor is perfect for applications requiring reliable power and consistent performance. With a TEFC (Totally Enclosed Fan Cooled) design, it offers superior protection against moisture and contaminants, making it ideal for washdown applications.

Specifications:

  • Power: 1.5 HP
  • Speed: 1725 RPM
  • Phase: 1
  • Frequency: 60 Hz
  • Frame: 143T
  • Product Code: WDL3514T

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor WDL3514T to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568746363
Supplier Part Number WDL3514T
Category AC Motors
Subcategory White Washdown Motors
Product Family Wash Down
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 50.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number WDL3514T
Current @ Voltage 12.200 A @ 115.0 V, 6.100 A @ 230.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 80.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 143T
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 6.1 a
Insulation Class F
Inverter Code Not Inverter
KVA Code H
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3532LC
Mounting Arrangement F1
Number of Poles 4
Output 1.500 hp
Output @ Frequency 1.500 HP @ 60 HZ
Overall Length 14.16 IN
Phase 1
Power Factor 98
Pulley End Bearing Type Sealed Bearing
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Fixed Opposite Standard
Shaft Slinger Indicator Shaft Slinger
Speed 1725 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 115 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
