Baldor WDL3510 - 1 HP, 1725RPM, 1 Phase, 60HZ, 56, 3524L, TEFC, F1, N 60HZ Single Phase 1 HP

Save $346.50
BaldorSKU: WDL3510

Price:
Sale price$1,039.50 Regular price$1,386.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

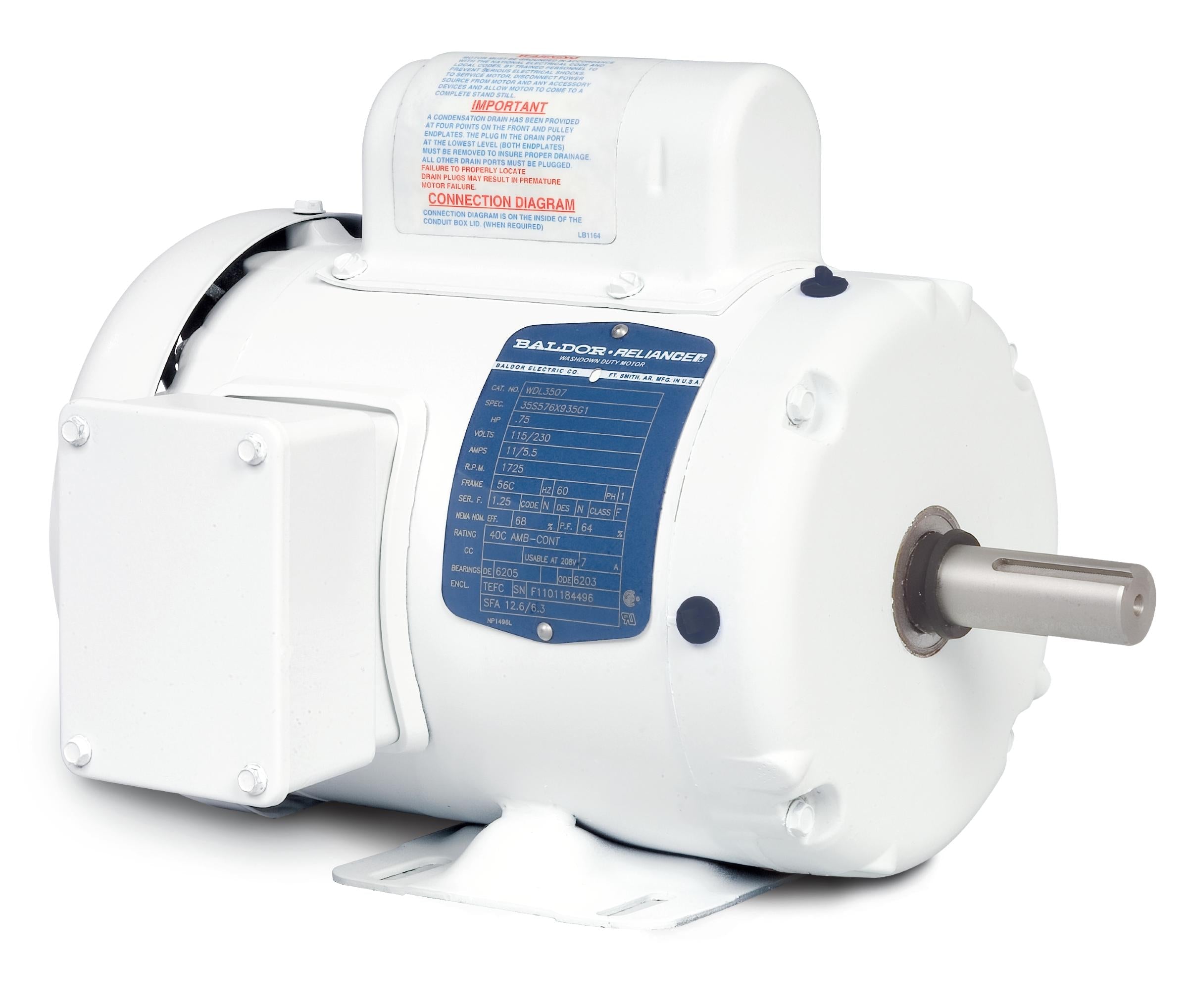

Baldor WDL3510 - 1 HP White Washdown Motor

The Baldor WDL3510 is a high-performance 1 HP White Washdown Motor designed for reliable operation in demanding environments. With a speed of 1725 RPM and a single-phase power supply at 60Hz, this motor is perfect for various applications requiring durability and efficiency.

Key Features:

  • Power: 1 HP
  • Speed: 1725 RPM
  • Phase: Single Phase
  • Frequency: 60Hz
  • Frame Size: 56
  • TEFC (Totally Enclosed Fan Cooled) design for enhanced protection
  • Product Code: WDL3510

This motor is ideal for washdown applications, providing excellent resistance to moisture and contaminants. As a trusted source for replacement pumps and parts, Pump-Stop.com is here to help you find the right solution for your needs. If you have questions or need assistance, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Baldor WDL3510. If you are having trouble finding the right item, don’t hesitate to reach out to our knowledgeable team for support.

UPC 781568747308
Supplier Part Number WDL3510
Category AC Motors
Subcategory White Washdown Motors
Product Family Wash Down
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 41.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number WDL3510
Current @ Voltage 12.500 A @ 115.0 V, 6.300 A @ 230.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 74.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 6.3 a
Insulation Class F
Inverter Code Not Inverter
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Induction Run
Motor Standards NEMA
Motor Type 3528L
Mounting Arrangement F1
Number of Poles 4
Output 1.000 hp
Output @ Frequency 1.000 HP @ 60 HZ
Overall Length 13.23 IN
Phase 1
Power Factor 69
Pulley End Bearing Type Sealed Bearing
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1750 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 115 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
