Baldor WDL3507 - .75 HP, 1750RPM, 1 Phase, 60HZ, 56, 3522L, TEFC, F1 60HZ Single Phase 75 HP

Save $299.75
BaldorSKU: WDL3507

Price:
Sale price$899.25 Regular price$1,199.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

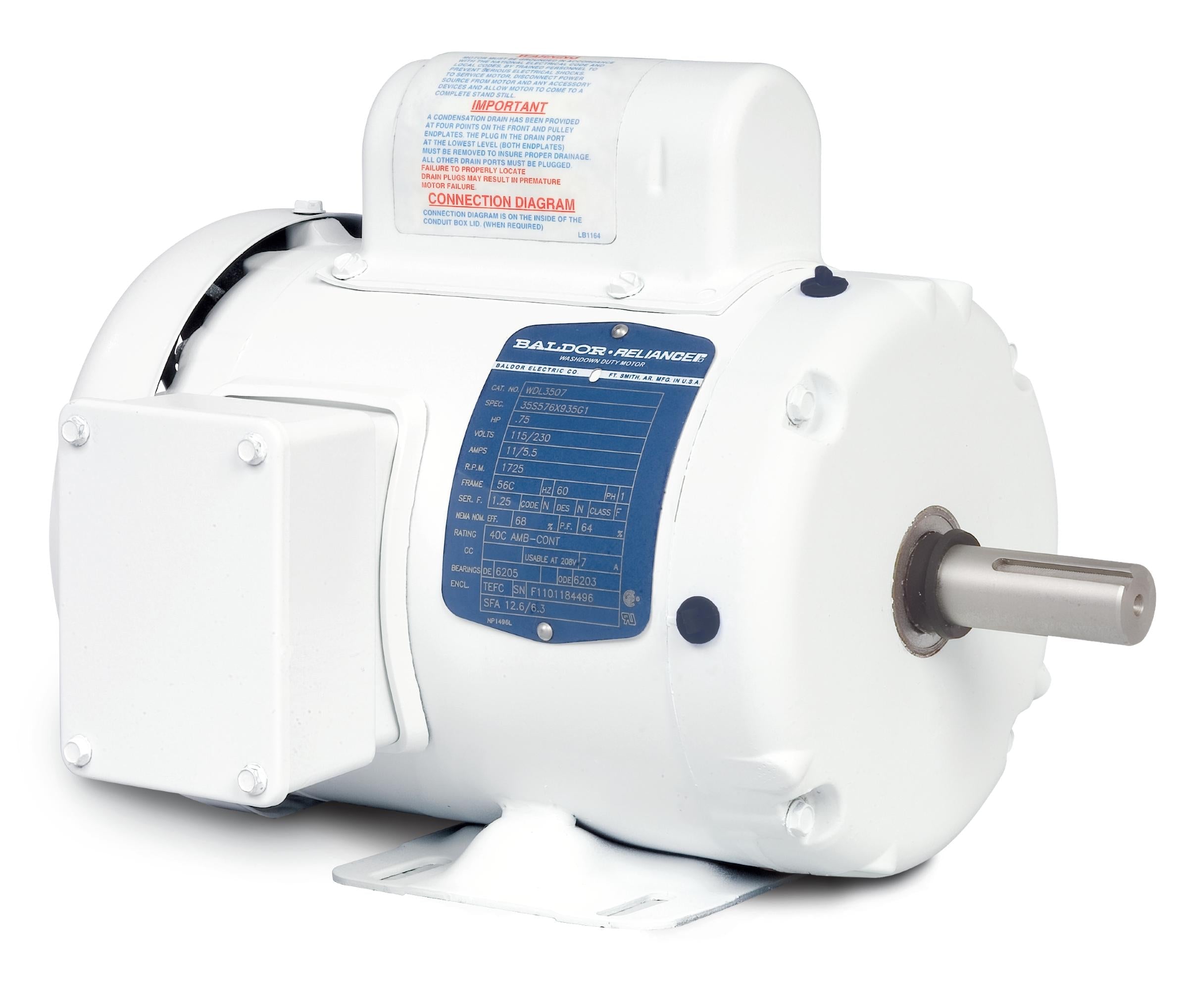

Baldor WDL3507 - .75 HP White Washdown Motor

The Baldor WDL3507 is a high-performance .75 HP White Washdown Motor designed for reliable operation in demanding environments. With a speed of 1750 RPM and a single-phase power supply, this motor is perfect for various applications requiring durability and efficiency.

  • Power: .75 HP
  • Speed: 1750 RPM
  • Phase: 1 Phase
  • Frequency: 60 Hz
  • Frame Size: 56
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: WDL3507

This motor is part of the Baldor-Reliance White Washdown Motors series, known for their robust construction and resistance to moisture and contaminants, making them ideal for washdown applications in food processing, pharmaceuticals, and other industries.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor WDL3507. If you’re having trouble locating the right item, our team is here to help!

UPC 781568747810
Supplier Part Number WDL3507
Category AC Motors
Subcategory White Washdown Motors
Product Family Wash Down
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 37.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number WDL3507
Current @ Voltage 10.000 A @ 115.0 V, 5.000 A @ 230.0 V
Design Code N
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 70.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 5.0 a
Insulation Class F
Inverter Code Not Inverter
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Induction Run
Motor Standards NEMA
Motor Type 3522L
Mounting Arrangement F1
Number of Poles 4
Output 0.750 hp
Output @ Frequency .750 HP @ 60 HZ
Overall Length 13.22 IN
Phase 1
Power Factor 69
Pulley End Bearing Type Sealed Bearing
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1750 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 115 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
