Baldor WDL3504 - .5 HP, 1740RPM, 1 Phase, 60HZ, 56, 3520L, TEFC, F1, N 60HZ Single Phase 5 HP

Save $256.00
BaldorSKU: WDL3504

Price:
Sale price$768.00 Regular price$1,024.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

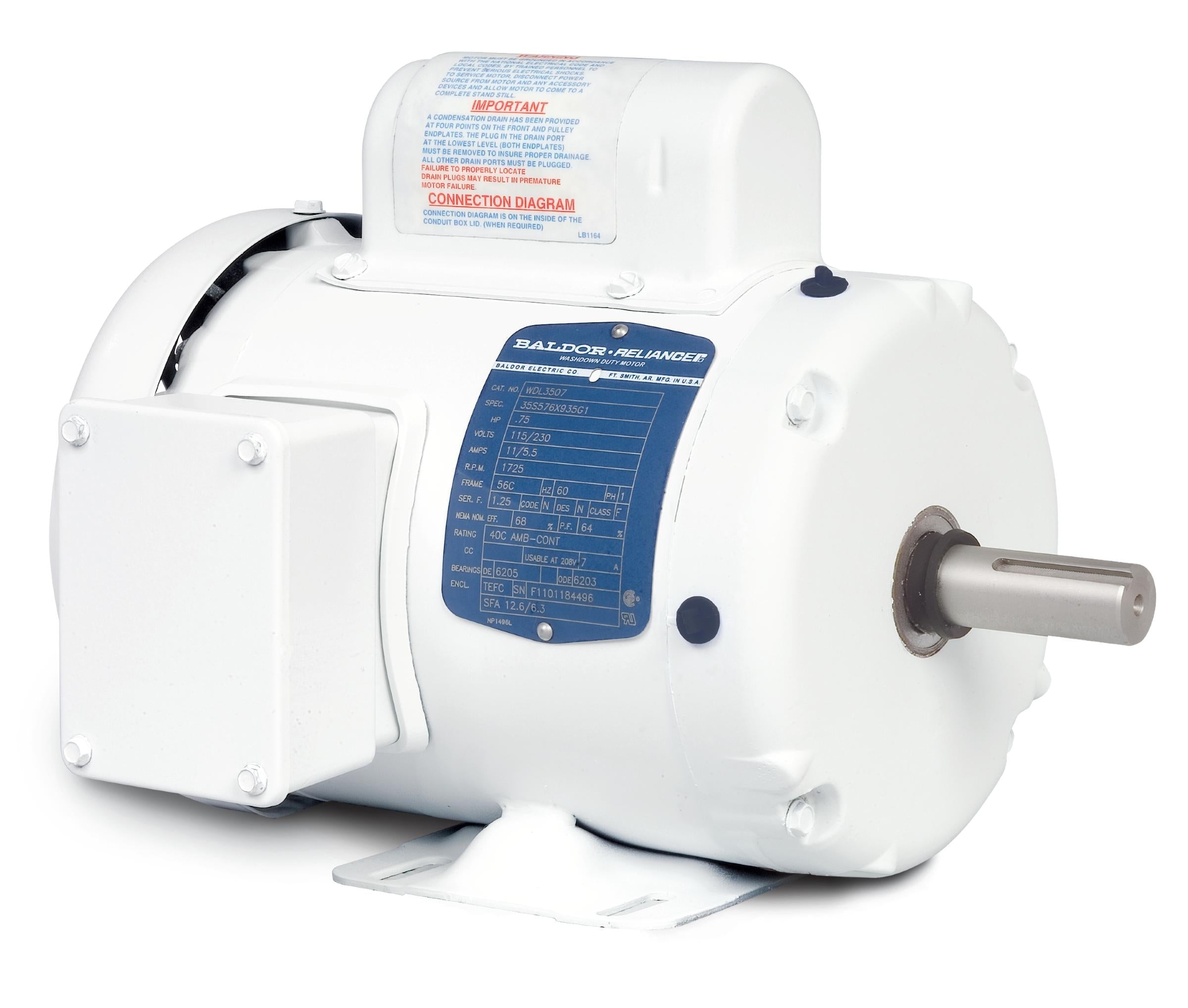

Baldor-Reliance White Washdown Motor - Model WDL3504

Introducing the Baldor-Reliance WDL3504, a high-performance .5 HP White Washdown Motor designed for durability and efficiency in demanding environments. Operating at 1740 RPM, this single-phase motor is perfect for various applications requiring reliable power and performance.

  • Power: 0.5 HP
  • Speed: 1740 RPM
  • Phase: 1 Phase
  • Frequency: 60 Hz
  • Frame Size: 56
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: WDL3504

This motor is engineered to withstand harsh washdown conditions, making it an ideal choice for food processing, chemical handling, and other wet environments. With its robust construction and reliable performance, the Baldor WDL3504 is a trusted solution for your pumping needs.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor WDL3504. Our team is here to help you find the perfect fit for your needs.

UPC 781568747803
Supplier Part Number WDL3504
Category AC Motors
Subcategory White Washdown Motors
Product Family Wash Down
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 34.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number WDL3504
Current @ Voltage 3.450 A @ 208.0 V, 3.500 A @ 230.0 V, 7.000 A @ 115.0 V
Design Code N
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 66.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 3.5 a
Insulation Class F
Inverter Code Not Inverter
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Induction Run
Motor Standards NEMA
Motor Type 3520L
Mounting Arrangement F1
Number of Poles 4
Output 0.500 hp
Output @ Frequency .500 HP @ 60 HZ
Overall Length 12.23 IN
Phase 1
Power Factor 70
Pulley End Bearing Type Sealed Bearing
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1740 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 115 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
