Baldor WCL1509T - 7.5 HP, 3450RPM, 1 Phase, 60HZ, 213TCZ, 3729L, Open 60HZ Single Phase 7.5 HP

Save $890.75
BaldorSKU: WCL1509T

Price:
Sale price$2,672.25 Regular price$3,563.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

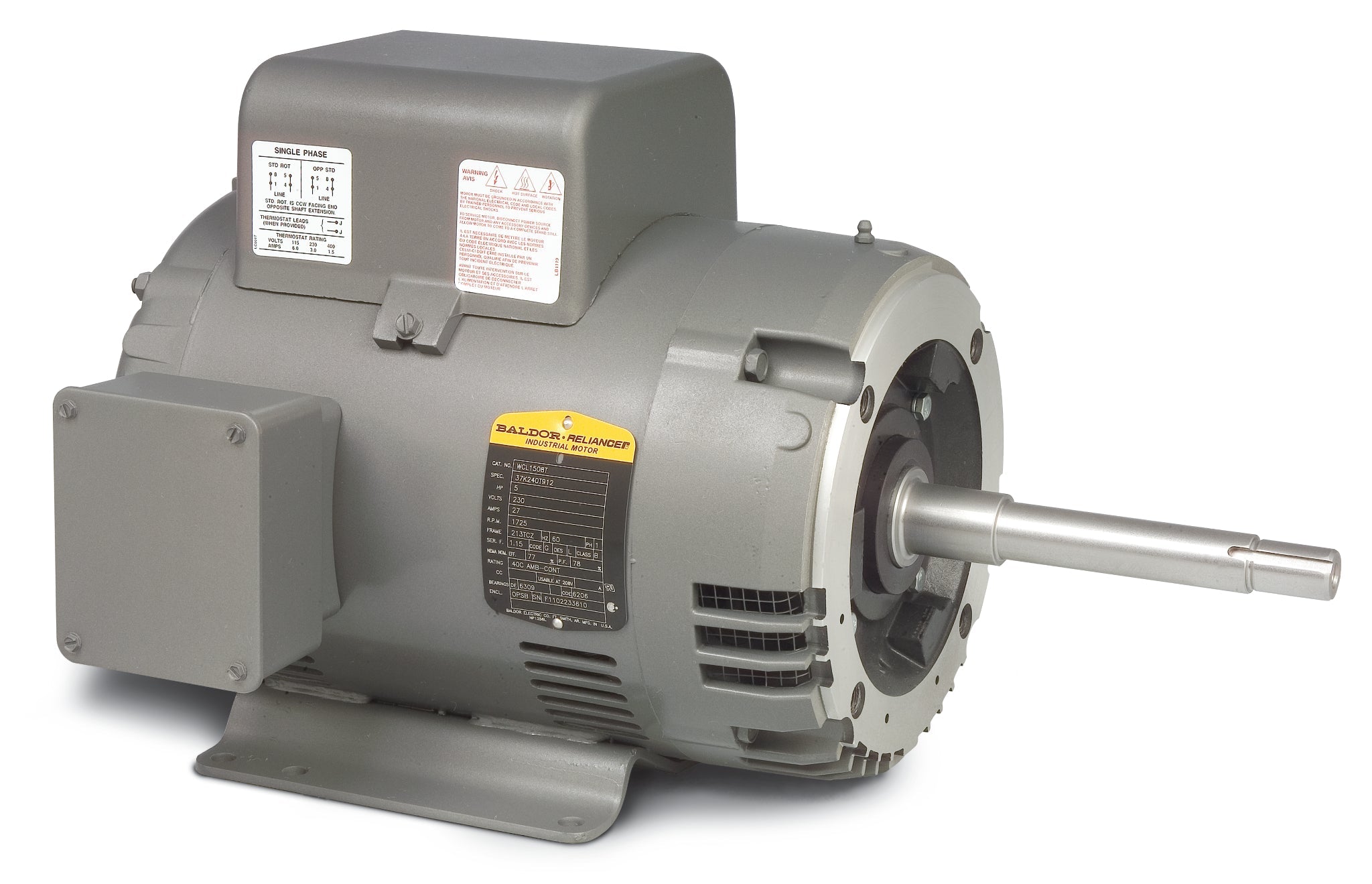

Baldor WCL1509T - 7.5 HP Close Coupled Motor

Upgrade your pumping system with the Baldor WCL1509T, a high-performance close coupled motor designed for reliability and efficiency. This 7.5 HP motor operates at 3450 RPM and is specifically engineered for single-phase applications at 60Hz. With a robust 213TCZ frame and an open design, this motor is perfect for a variety of pumping needs.

Key Features:

  • Power: 7.5 HP
  • Speed: 3450 RPM
  • Phase: 1 Phase
  • Frequency: 60Hz
  • Frame Size: 213TCZ
  • Open design for optimal cooling

As a trusted supplier, Pump-Stop is your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor WCL1509T to ensure compatibility. Our team is here to help you find the perfect solution for your pumping needs.

UPC 781568114803
Supplier Part Number WCL1509T
Category AC Motors
Subcategory JM,JP,WCP Close Coupled Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 117.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number WCL1509T
Current @ Voltage 37.000 A @ 230.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 81.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 213TCZ
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 37.0 a
Insulation Class B
Inverter Code Not Inverter
KVA Code G
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 8 AWG, A PH
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Induction Run
Motor Standards NEMA
Motor Type 3729L
Mounting Arrangement F1
Number of Poles 2
Output 7.500 hp
Output @ Frequency 7.500 HP @ 60 HZ
Overall Length 21.25 IN
Phase 1
Power Factor 82
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Tapped & Key
Rodent Screen Included
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V
Voltage @ Frequency 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
