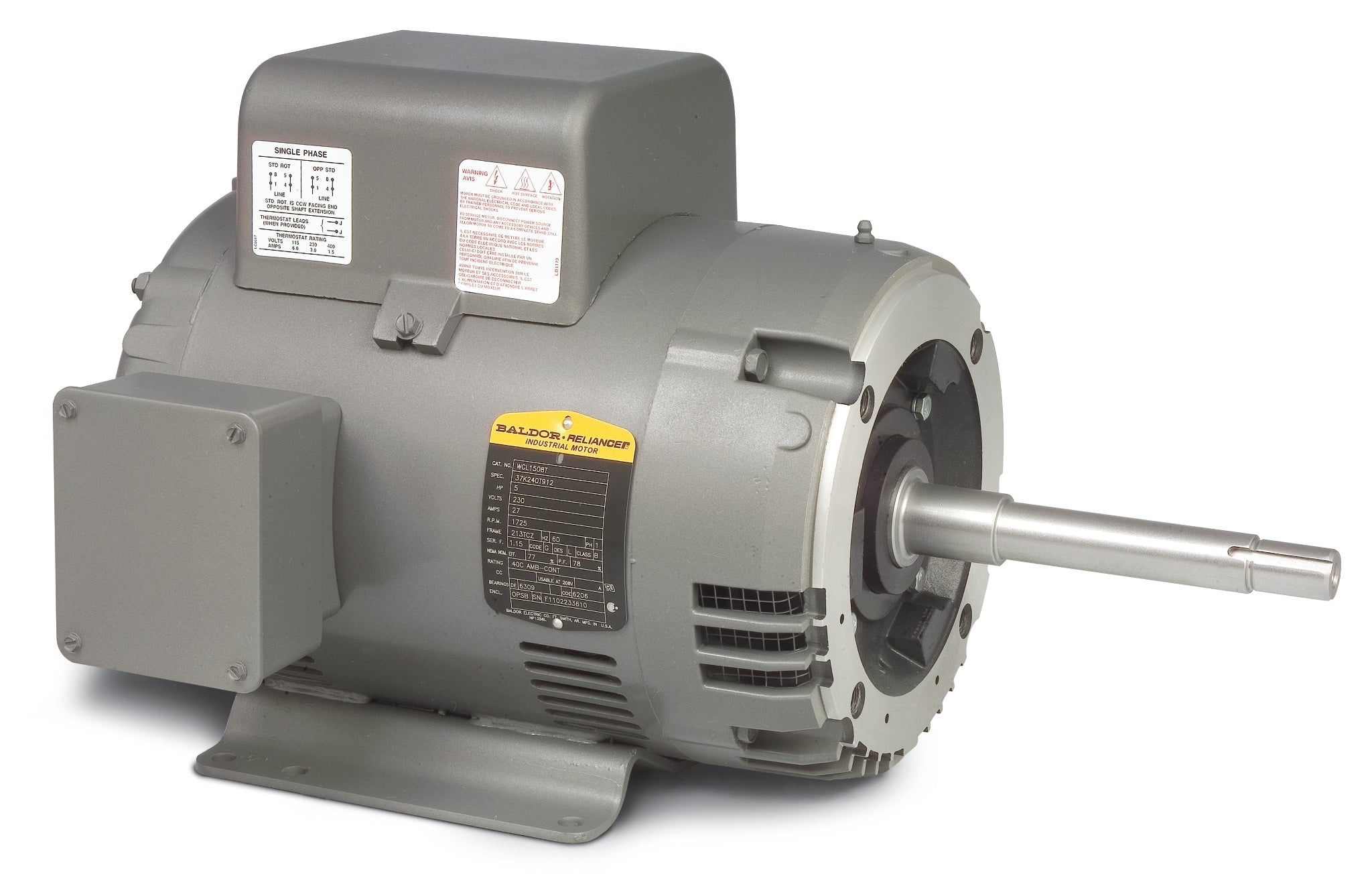

Baldor WCL1508T - 5 HP, 1725RPM, 1 Phase, 60HZ, 213TCZ, 3727L, Opsb, F 60HZ Single Phase 5 HP

Save $717.00
BaldorSKU: WCL1508T

Price:
Sale price$2,151.00 Regular price$2,868.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor WCL1508T - 5 HP Close Coupled Motor

Introducing the Baldor WCL1508T, a high-performance 5 HP close coupled motor designed for reliability and efficiency. Operating at 1725 RPM and powered by a single-phase 60Hz supply, this motor is ideal for various applications requiring robust performance.

Specifications:

  • Power: 5 HP
  • Speed: 1725 RPM
  • Phase: 1 Phase
  • Frequency: 60 Hz
  • Frame Size: 213TCZ
  • Product Code: WCL1508T

This Baldor-Reliance motor is part of the JM, JP, and WCP series, known for their durability and efficiency in pump applications. Whether you are replacing an old motor or upgrading your system, the WCL1508T is a reliable choice.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble finding the right item, our team is here to help!

UPC 781568114797
Supplier Part Number WCL1508T
Category AC Motors
Subcategory JM,JP,WCP Close Coupled Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 116.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number WCL1508T
Current @ Voltage 27.000 A @ 230.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 77.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 213TCZ
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 27.0 a
Insulation Class F
Inverter Code Not Inverter
KVA Code G
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 10 AWG, A PH
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Induction Run
Motor Standards NEMA
Motor Type 3727L
Mounting Arrangement F1
Number of Poles 4
Output 5.000 hp
Output @ Frequency 5.000 HP @ 60 HZ
Overall Length 21.25 IN
Phase 1
Power Factor 78
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen Included
Service Factor 1.15
Shaft Diameter 1.000 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1725 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V
Voltage @ Frequency 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
