Baldor VXT3302TS-5 - 30 HP, 3525RPM, 3 Phase, 60HZ, 286TSC, 1048M, TEFC 60HZ Three Phase 30 HP 1048 M Cable

Save $1,788.50
BaldorSKU: VXT3302TS-5

Price:
Sale price$5,365.50 Regular price$7,154.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

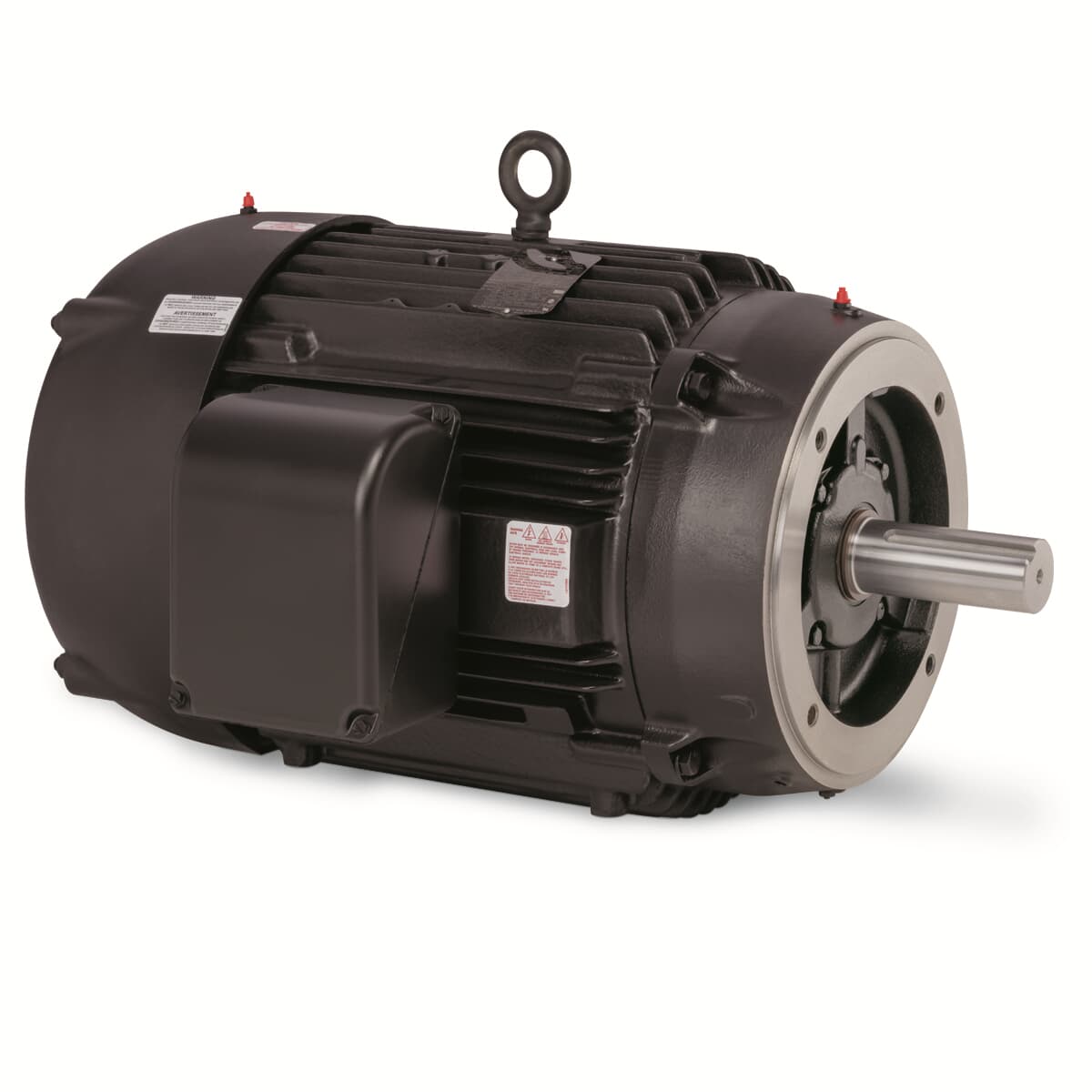

Baldor-Reliance Severe Duty XT Motors - VXT3302TS-5

Introducing the Baldor VXT3302TS-5, a high-performance Severe Duty XT Motor designed for demanding industrial applications. With a robust 30 HP output and a high-speed operation of 3525 RPM, this 3-phase motor operates efficiently at 60Hz, making it an ideal choice for various heavy-duty tasks.

Specifications:

  • Power: 30 HP
  • Speed: 3525 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 286TSC
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)
  • Motor Code: 1048M

This motor is engineered for reliability and durability, making it suitable for severe duty applications. Whether you need it for pumps, fans, or other machinery, the Baldor VXT3302TS-5 ensures optimal performance and longevity.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568981207
Supplier Part Number VXT3302TS-5
Category AC Motors
Subcategory Severe Duty XT Motors
Product Family General Purpose
Agency Approvals CCSA US, CSA EEV, NEMA_PREMIUM, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 396.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VXT3302TS-5
Constant Torque Speed Range 6
Current @ Voltage 27.000 A @ 575.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.7 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 286TSC
Frame Material Cast Iron
Frequency 60.00 Hz
Haz Area Class and Group Class I, Group A,B,C & D
Haz Area Division Division II
Haz Area Temp Code T3
Heater Indicator No Heater
High Voltage Full Load Amps 27.0 a
Insulation Class F
Inverter Code Inverter Duty
IP Rating NONE
KVA Code F
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 1048M
Mounting Arrangement F1
Number of Poles 2
Output 30.000 hp
Output @ Frequency 30.000 HP @ 60 HZ
Overall Length 26.39 IN
Phase 3
Power Factor 90
Pulley Face Code C-Face
Rodent Screen None
Service Factor 1
Shaft Diameter 1.625 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Speed 3525 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 575 V
Voltage @ Frequency 575.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
