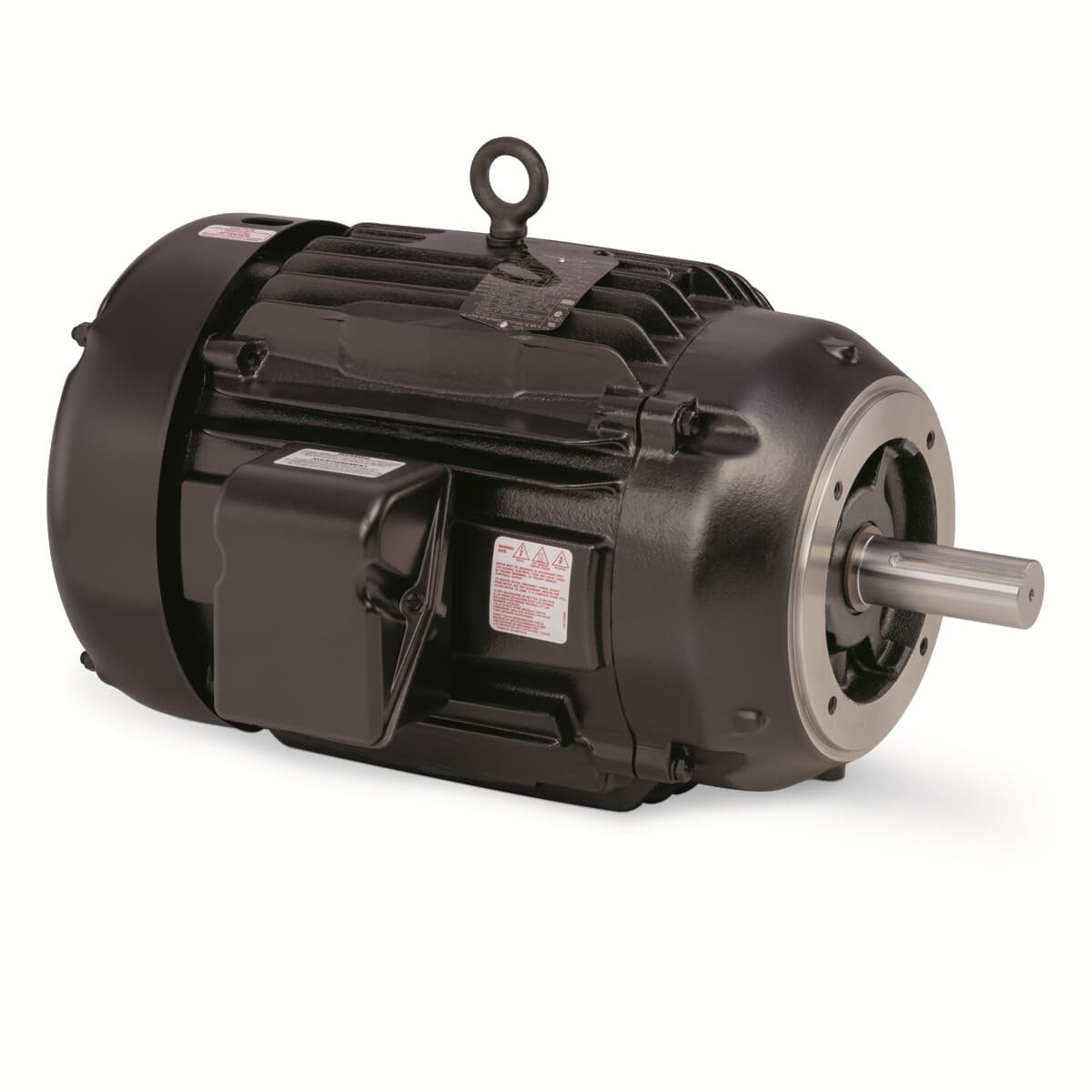

Baldor VXT3256T-5 - 25 HP, 1180RPM, 3 Phase, 60HZ, 324TC, 1260M, TEFC, F 60HZ Three Phase 25 HP 1260 M Cable

Save $2,320.25
BaldorSKU: VXT3256T-5

Price:
Sale price$6,960.75 Regular price$9,281.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor-Reliance Severe Duty XT Motors - VXT3256T-5

Introducing the Baldor VXT3256T-5, a high-performance 25 HP Severe Duty XT Motor designed for demanding industrial applications. Operating at 1180 RPM, this robust motor is engineered for 3-phase power and is compatible with 60Hz electrical systems. With a 324TC frame size and a 1260M insulation class, this TEFC (Totally Enclosed Fan Cooled) motor ensures durability and reliability in harsh environments.

Whether you need a replacement motor for your pump or other machinery, the Baldor VXT3256T-5 is built to deliver exceptional performance and longevity. Pump-Stop is your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568982167
Supplier Part Number VXT3256T-5
Category AC Motors
Subcategory Severe Duty XT Motors
Product Family General Purpose
Agency Approvals CCSA US, CSA EEV, NEMA PREMIUM, NEMA_PREMIUM, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 605.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VXT3256T-5
Constant Torque Speed Range 3
Current @ Voltage 25.700 A @ 575.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 93.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 324TC
Frame Material Iron
Frequency 60.00 Hz
Haz Area Class and Group Class I, Group A,B,C & D
Haz Area Division Division II
Haz Area Temp Code T3
Heater Indicator No Heater
High Voltage Full Load Amps 25.7 a
Insulation Class F
Inverter Code Inverter Duty
IP Rating NONE
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 1260M
Mounting Arrangement F1
Number of Poles 6
Output 25.000 hp
Output @ Frequency 25.000 HP @ 60 HZ
Overall Length 30.28 IN
Phase 3
Power Factor 79
Pulley Face Code Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 2.125 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Speed 1180 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 575 V
Voltage @ Frequency 575.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
