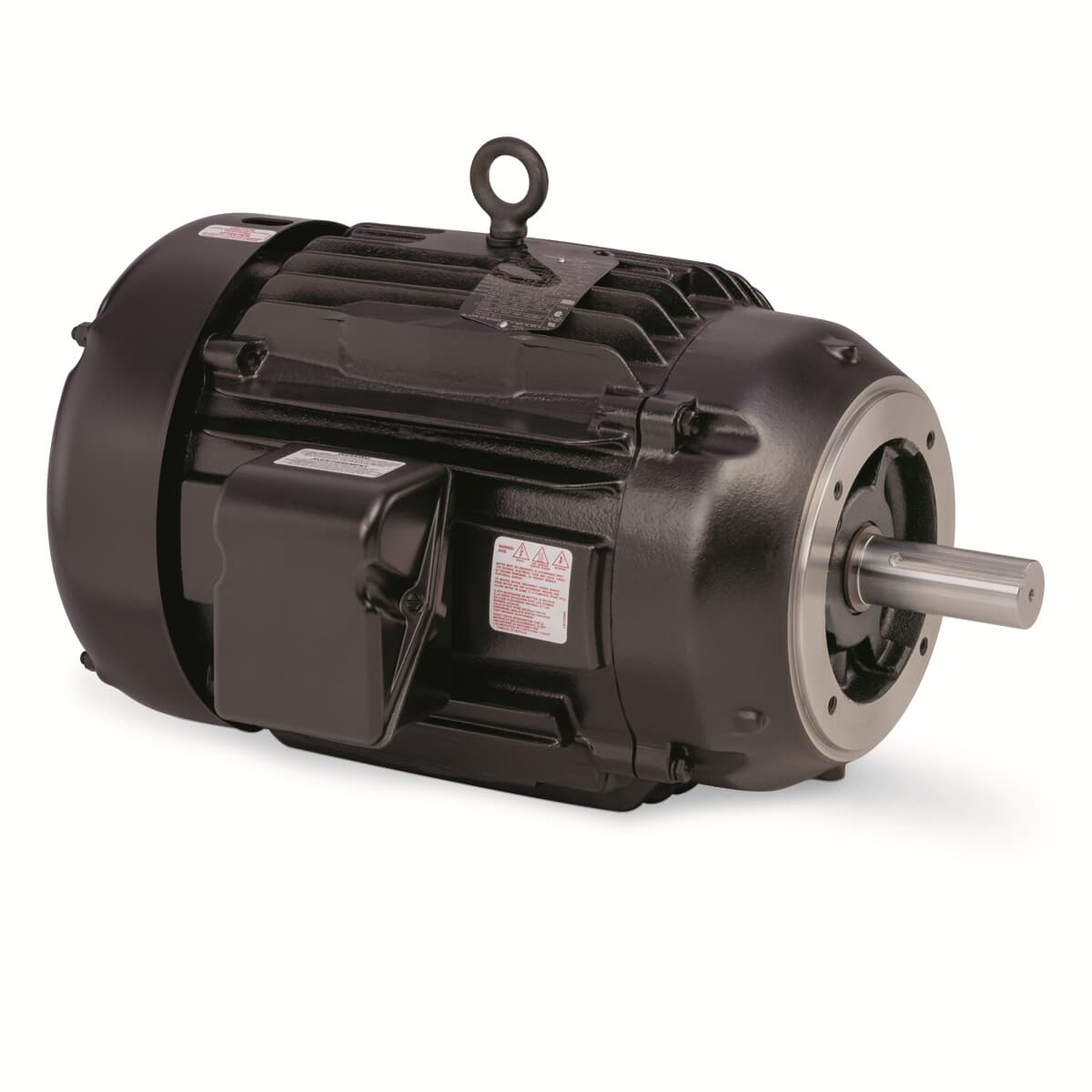

Baldor VXT3204T-5 - 20 HP, 1770RPM, 3 Phase, 60HZ, 256TC, TEFC, F1 60HZ Three Phase 20 HP

Save $1,184.00
BaldorSKU: VXT3204T-5

Price:
Sale price$3,552.00 Regular price$4,736.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor-Reliance Severe Duty XT Motor - VXT3204T-5

Upgrade your industrial applications with the Baldor VXT3204T-5, a powerful 20 HP Severe Duty XT Motor designed for reliability and efficiency. Operating at 1770 RPM, this 3-phase motor is optimized for 60Hz applications, making it an ideal choice for demanding environments.

Key Features:

  • Power: 20 HP
  • Speed: 1770 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 256TC
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Mounting: F1

This motor is built to withstand severe conditions, ensuring long-lasting performance and minimal downtime. Whether you are replacing an existing motor or upgrading your system, the Baldor VXT3204T-5 is the perfect solution.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties, our team is here to help you find the right item.

UPC 781568982136
Supplier Part Number VXT3204T-5
Category AC Motors
Subcategory Severe Duty XT Motors
Product Family General Purpose
Agency Approvals CCSA US, CSA EEV, NEMA_PREMIUM, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 322.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VXT3204T-5
Constant Torque Speed Range 3
Current @ Voltage 19.200 A @ 575.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 93.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 256TC
Frame Material Cast Iron
Frequency 60.00 Hz
Haz Area Class and Group Class I, Group A,B,C & D
Haz Area Division Division II
Haz Area Temp Code T3C
Heater Indicator No Heater
High Voltage Full Load Amps 19.2 a
Insulation Class F
Inverter Code Inverter Duty
IP Rating NONE
KVA Code J
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 0960M
Mounting Arrangement F1
Number of Poles 4
Output 20.000 hp
Output @ Frequency 20.000 HP @ 60 HZ
Overall Length 23.92 IN
Phase 3
Power Factor 83
Pulley Face Code C-Face
Rodent Screen None
Service Factor 1
Shaft Diameter 1.625 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Speed 1770 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 575 V
Voltage @ Frequency 575.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
