Baldor VXT30156T-5 - 1.5 HP, 1170RPM, 3 Phase, 60HZ, 182TC, 0630M, TEFC 60HZ Three Phase 1.5 HP 0630 M Cable

Save $391.25
BaldorSKU: VXT30156T-5

Price:
Sale price$1,173.75 Regular price$1,565.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

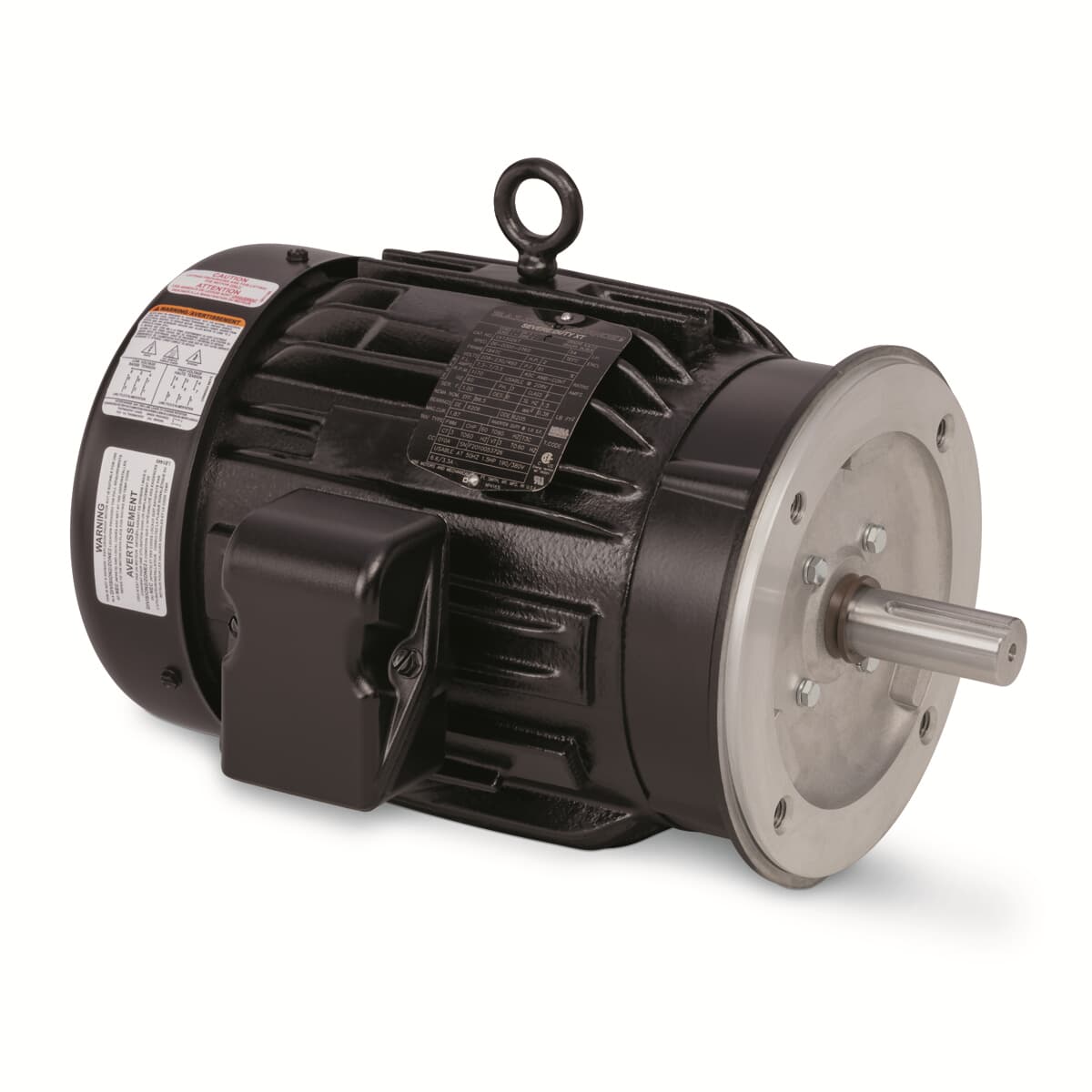

Baldor VXT30156T-5 - Severe Duty XT Motor

Introducing the Baldor VXT30156T-5, a high-performance 1.5 HP Severe Duty XT Motor designed for demanding applications. Operating at 1170 RPM and featuring a 3 Phase configuration, this motor is optimized for 60HZ environments. With a 182TC frame and TEFC (Totally Enclosed Fan Cooled) design, it ensures durability and reliability in harsh conditions.

This motor is ideal for various industrial applications, providing efficient power and performance. As a trusted vendor, Baldor delivers quality and innovation in every product.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VXT30156T-5 to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

Product Code: VXT30156T-5

Tags: AC Motors, Baldor-Reliance Motors & Drives, Severe Duty XT Motors, Shop by Type Motors

UPC 781568981924
Supplier Part Number VXT30156T-5
Category AC Motors
Subcategory Severe Duty XT Motors
Product Family General Purpose
Agency Approvals CCSA US, CSA EEV, NEMA_PREMIUM, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 99.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VXT30156T-5
Constant Torque Speed Range 3
Current @ Voltage 2.000 A @ 575.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 87.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 182TC
Frame Material Cast Iron
Frequency 60.00 Hz
Haz Area Class and Group Class I, Group A,B,C & D
Haz Area Division Division II
Haz Area Temp Code T3C
Heater Indicator No Heater
High Voltage Full Load Amps 2.0 a
Insulation Class F
Inverter Code Inverter Duty
IP Rating NONE
KVA Code K
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 0630M
Mounting Arrangement F1
Number of Poles 6
Output 1.500 hp
Output @ Frequency 1.500 HP @ 60 HZ
Overall Length 15.98 IN
Phase 3
Power Factor 65
Pulley Face Code C-Face
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.125 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Speed 1170 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 575 V
Voltage @ Frequency 575.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
