Baldor VWDL3507 - .75 HP, 1750RPM, 1 Phase, 60HZ, 56C, 3522L, TEFC, F1 60HZ Single Phase 75 HP 56°C

Save $301.75
BaldorSKU: VWDL3507

Price:
Sale price$905.25 Regular price$1,207.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

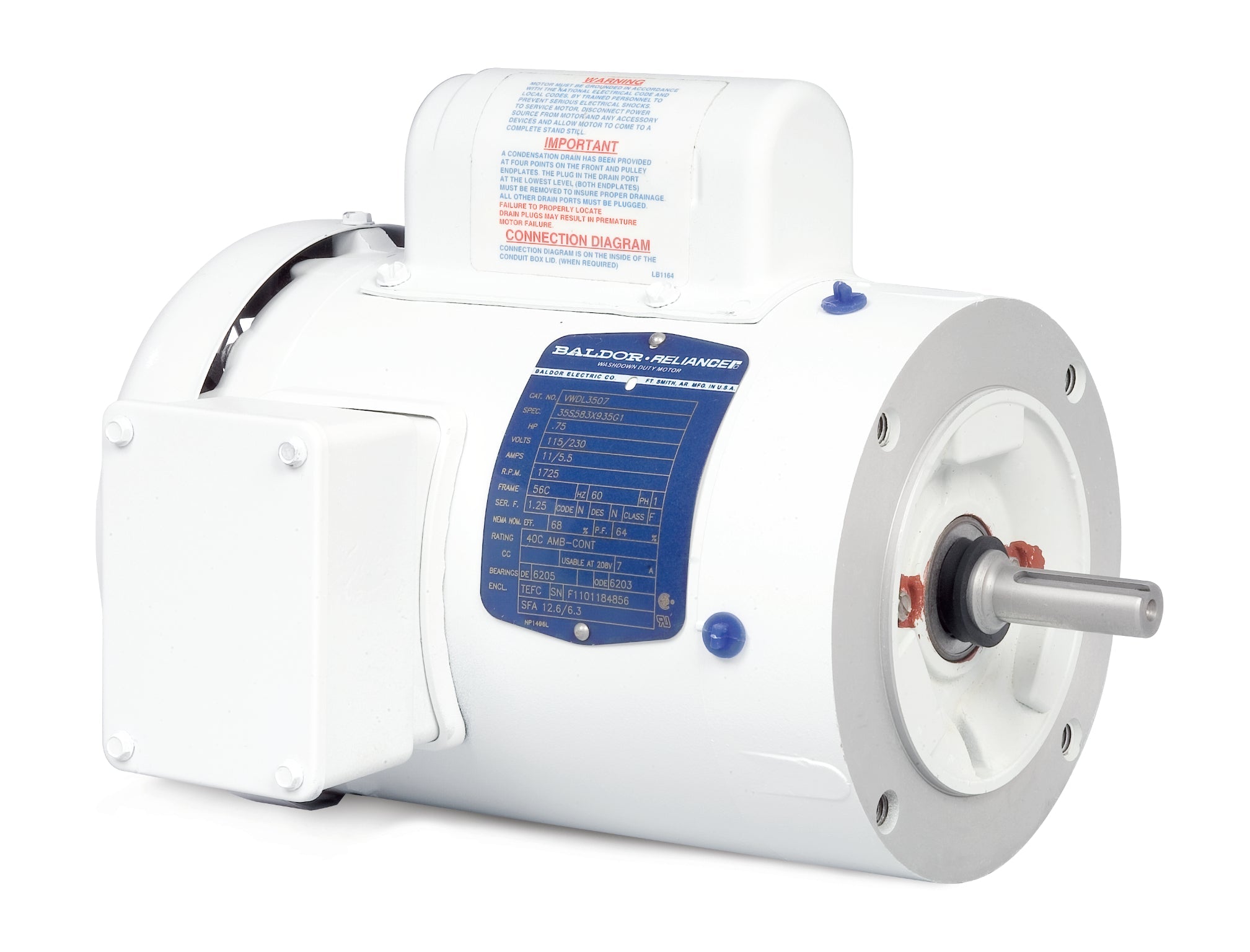

Baldor VWDL3507 White Washdown Motor

Experience reliable performance with the Baldor VWDL3507, a .75 HP, 1750 RPM, single-phase motor designed for demanding washdown applications. This motor operates at 60Hz and features a TEFC (Totally Enclosed Fan Cooled) design, ensuring durability and protection against moisture and contaminants.

Specifications:

  • Power: .75 HP
  • Speed: 1750 RPM
  • Phase: 1
  • Frequency: 60Hz
  • Frame Size: 56C
  • Model: 3522L
  • Type: White Washdown Motor
  • Product Code: VWDL3507

This Baldor-Reliance motor is ideal for applications requiring a robust and efficient solution, making it a perfect choice for various industrial settings. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, ensuring you find the right fit for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VWDL3507. Our team is here to help you with any inquiries or challenges you may face in selecting the right item.

UPC 781568155042
Supplier Part Number VWDL3507
Category AC Motors
Subcategory White Washdown Motors
Product Family Wash Down
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 36.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VWDL3507
Current @ Voltage 10.000 A @ 115.0 V, 5.000 A @ 230.0 V
Design Code N
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 70.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 5.0 a
Insulation Class F
Inverter Code Not Inverter
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Induction Run
Motor Standards NEMA
Motor Type 3522L
Mounting Arrangement F1
Number of Poles 4
Output 0.750 hp
Output @ Frequency .750 HP @ 60 HZ
Overall Length 13.22 IN
Phase 1
Power Factor 69
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1750 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 115 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
