Baldor VUHL3518 - .5/.37KWHP, 1740RPM, 1 Phase, 60HZ, 56C, 3518LC, T 60HZ Single Phase 56°C

Save $191.00
BaldorSKU: VUHL3518

Price:
Sale price$573.00 Regular price$764.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

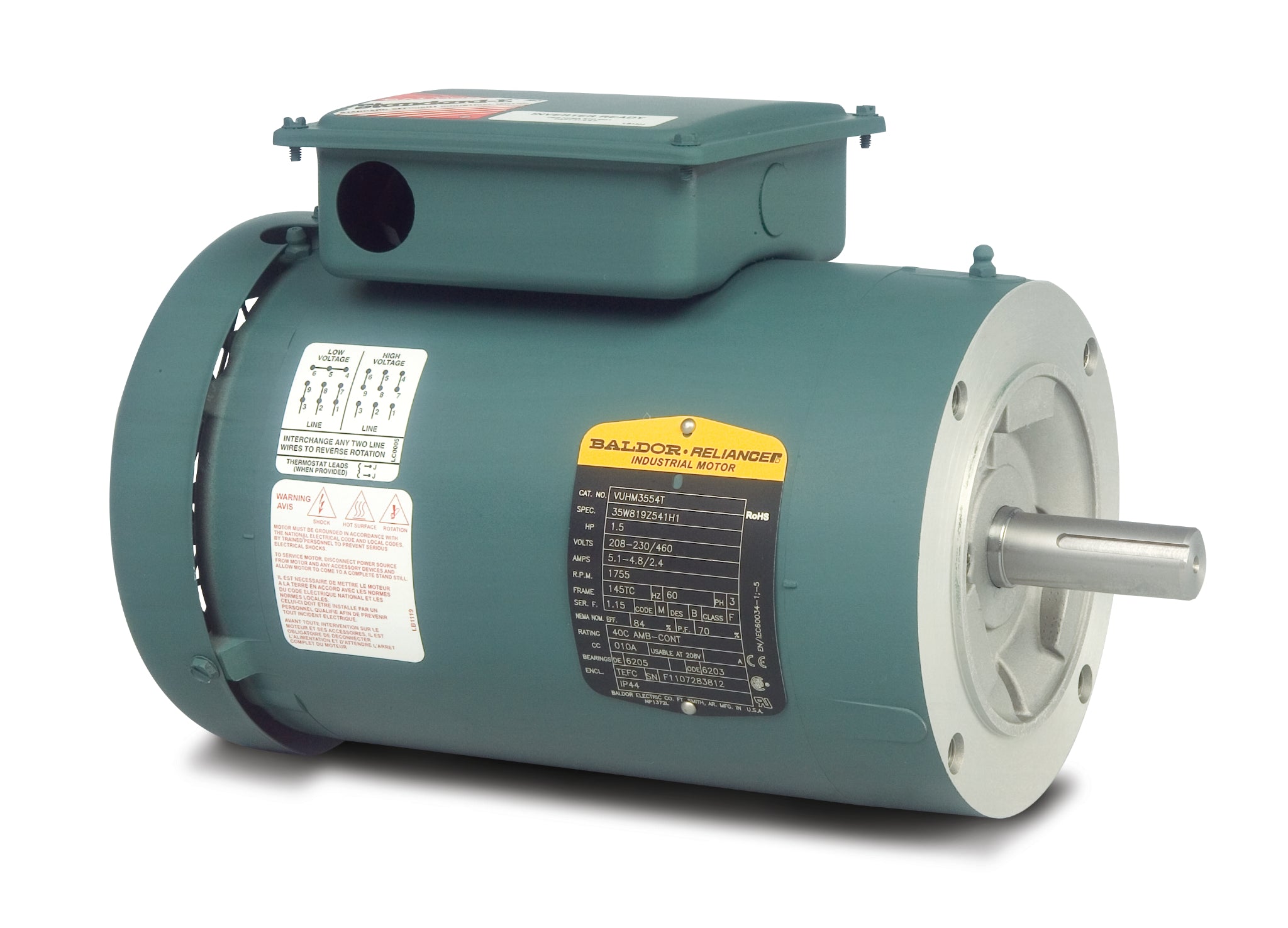

Baldor VUHL3518 General Unit Handling Motor

The Baldor VUHL3518 is a high-performance general unit handling motor designed for reliable operation in various applications. With a power rating of .5/.37 KWHP and a speed of 1740 RPM, this single-phase motor operates efficiently at 60Hz. It features a 56C frame size, making it suitable for a wide range of mounting configurations.

Key Specifications:

  • Power: .5/.37 KWHP
  • Speed: 1740 RPM
  • Phase: 1
  • Frequency: 60Hz
  • Frame Size: 56C
  • Product Code: VUHL3518

This Baldor-Reliance motor is ideal for applications requiring dependable performance and durability. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs. If you have questions or need assistance in locating the correct pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Baldor VUHL3518. If you encounter any difficulties in finding the right item, don’t hesitate to reach out to our knowledgeable team for support.

UPC 781568503744
Supplier Part Number VUHL3518
Category AC Motors
Subcategory General Unit Handling Motors
Product Family General Purpose
Agency Approvals CURUS, UKCA, WEEE, CE, C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 35.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VUHL3518
Current @ Voltage 3.100 A @ 230.0 V, 6.200 A @ 115.0 V, 3.100 A @ 208.0 V
Design Code N
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 72.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 3.1 a
Insulation Class F
Inverter Code Not Inverter
KVA Code N
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3518LC
Mounting Arrangement F1
Number of Poles 4
Output 0.500 hp
Output @ Frequency .500 HP @ 60 HZ
Overall Length 13.23 IN
Phase 1
Power Factor 72
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1740 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 208 V, 115 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 208.0 V @ 60 HZ, 115.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
