Baldor VRBM3561T - 3 HP, 1710RPM, 3 Phase, 60HZ, 145TC, 3540M, TEFC, F1 60HZ Three Phase 3 HP 3540 M Cable

Save $991.00
BaldorSKU: VRBM3561T

Price:
Sale price$2,973.00 Regular price$3,964.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

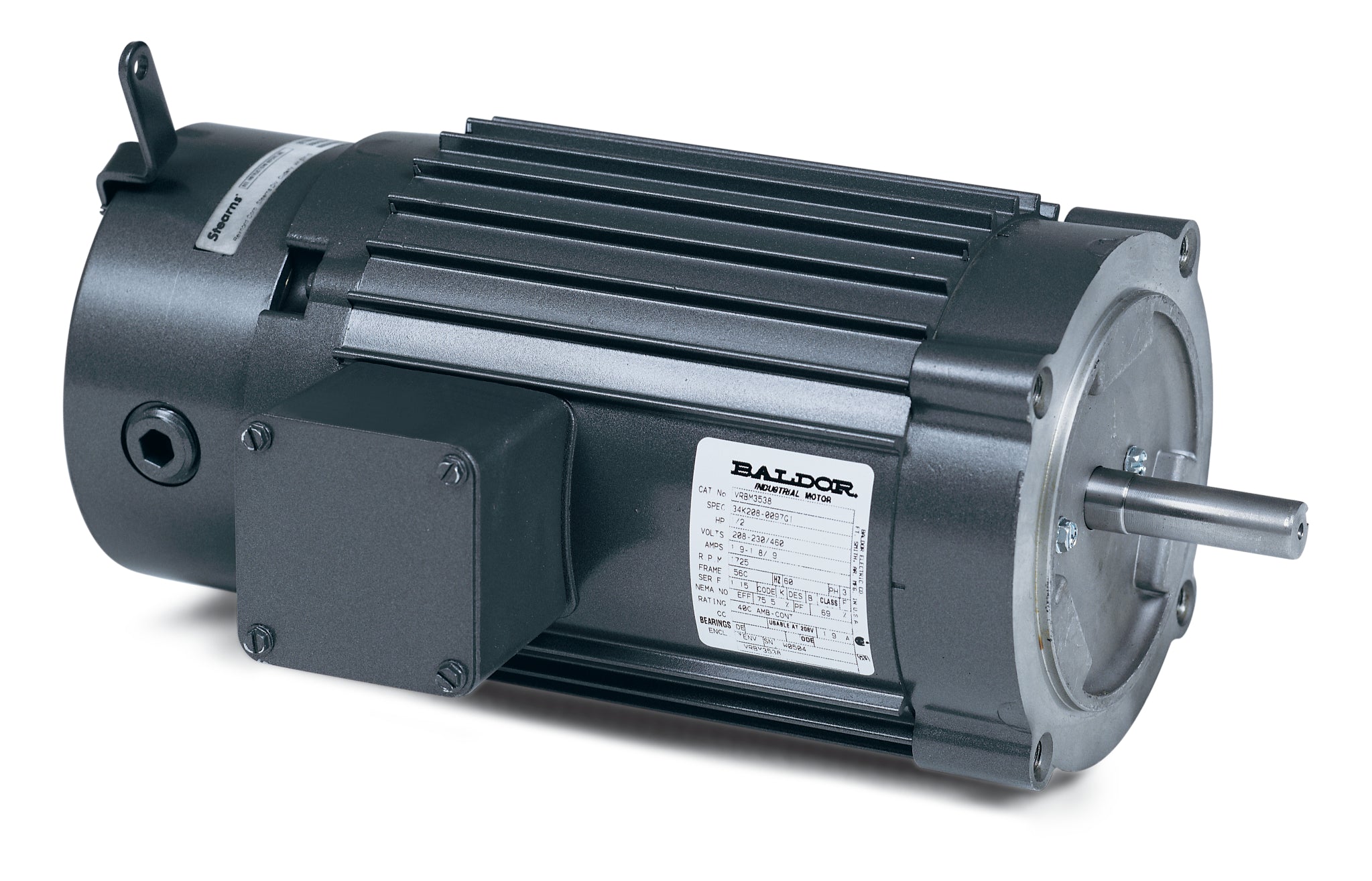

Baldor VRBM3561T - High Cycle Brake Motor

The Baldor VRBM3561T is a powerful and efficient 3 HP high cycle brake motor designed for demanding applications. Operating at 1710 RPM, this three-phase motor is optimized for 60Hz performance, making it ideal for various industrial uses. With a 145TC frame size and TEFC (Totally Enclosed Fan Cooled) design, it ensures durability and reliability in challenging environments.

Key Features:

  • Power: 3 HP
  • Speed: 1710 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 145TC
  • Type: High Cycle Brake Motor
  • Enclosure: TEFC
  • Product Code: VRBM3561T

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VRBM3561T to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568468166
Supplier Part Number VRBM3561T
Category AC Motors
Subcategory High Cycle Brake Motors
Product Family General Purpose
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 76.0
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Brake Torque 15.0 lb-ft
Catalog Number VRBM3561T
Current @ Voltage 4.100 A @ 460.0 V, 8.200 A @ 230.0 V, 8.800 A @ 208.0 V
Design Code D
Duty Rating CONT
Efficiency @ 100% Load 84.0 %
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 145TC
Frame Material Aluminum
Frequency 60.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 4.1 a
Insulation Class F
Inverter Code Not Inverter
KVA Code J
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3540M
Mounting Arrangement F1
Number of Poles 4
Output 3.000 hp
Output @ Frequency 3.000 HP @ 60 HZ
Overall Length 17.68 IN
Phase 3
Power Factor 80
Pulley Face Code C-Face
Rodent Screen None
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1710 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Winding None
Voltage 230 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
