Baldor VRBM3558T - 2 HP, 1700RPM, 3 Phase, 60HZ, 145TC, 3528M, TEFC, F1 60HZ Three Phase 2 HP 3528 M Cable

Save $962.50
BaldorSKU: VRBM3558T

Price:
Sale price$2,887.50 Regular price$3,850.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

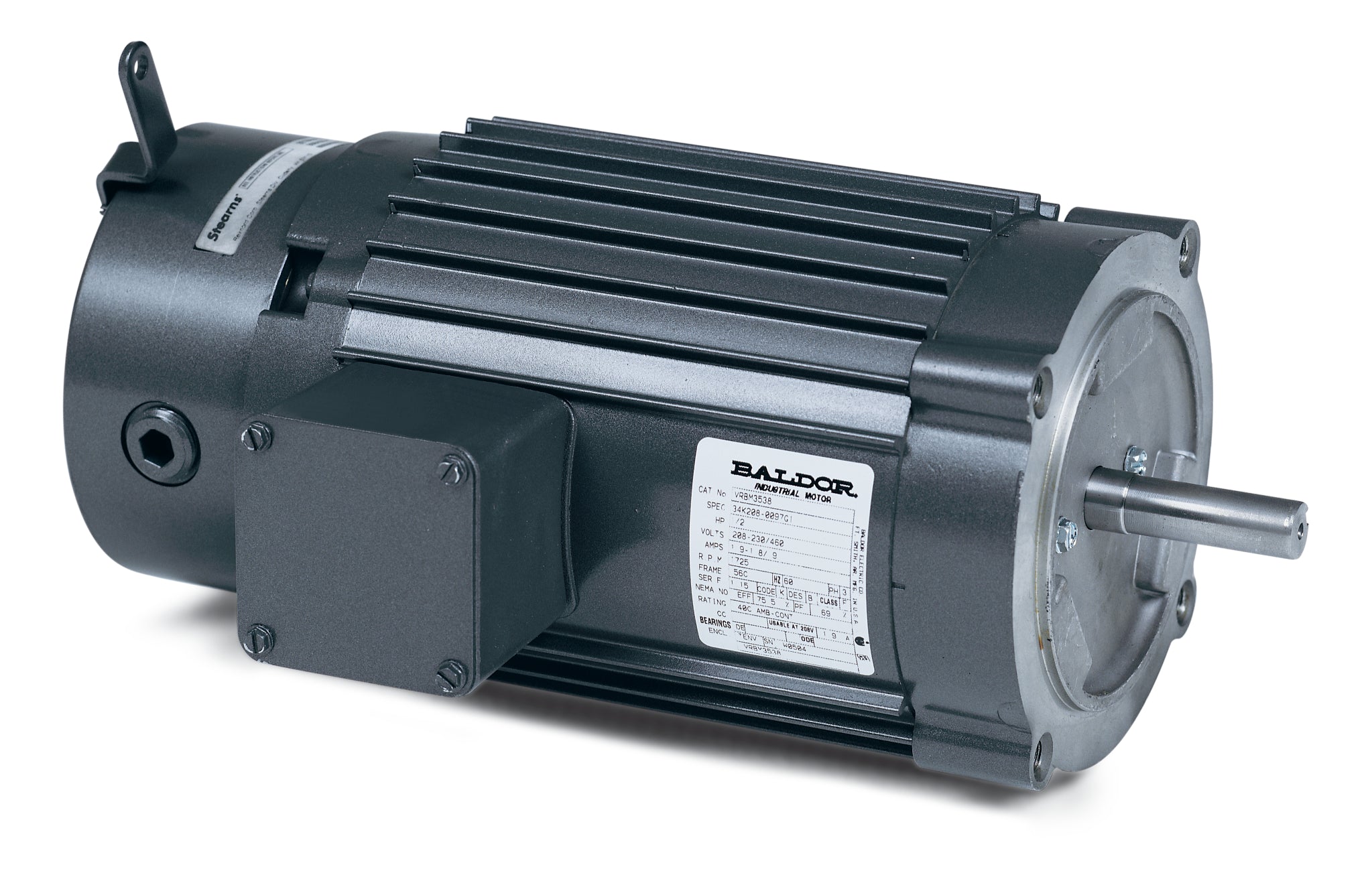

Baldor VRBM3558T - High Cycle Brake Motor

Introducing the Baldor VRBM3558T, a powerful and efficient 2 HP high cycle brake motor designed for demanding applications. Operating at 1700 RPM, this three-phase motor is optimized for 60Hz performance, making it an ideal choice for various industrial settings.

Specifications:

  • Power: 2 HP
  • Speed: 1700 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 145TC
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)
  • Mounting: F1
  • Product Code: VRBM3558T

This Baldor-Reliance high cycle brake motor is engineered for durability and reliability, making it a top choice for applications requiring consistent performance. With its robust construction and efficient design, it ensures long-lasting operation and minimal maintenance.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VRBM3558T to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568405215
Supplier Part Number VRBM3558T
Category AC Motors
Subcategory High Cycle Brake Motors
Product Family General Purpose
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 69.0
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Brake Torque 10.0 lb-ft
Catalog Number VRBM3558T
Current @ Voltage 3.600 A @ 460.0 V, 7.200 A @ 230.0 V
Design Code D
Duty Rating CONT
Efficiency @ 100% Load 80.0 %
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 145TC
Frame Material Aluminum
Frequency 60.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 3.6 a
Insulation Class F
Inverter Code Not Inverter
KVA Code L
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 7536M
Mounting Arrangement F1
Number of Poles 4
Output 2.000 hp
Output @ Frequency 2.000 HP @ 60 HZ
Overall Length 15.43 IN
Phase 3
Power Factor 64
Pulley Face Code C-Face
Rodent Screen None
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1700 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Winding None
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
