Baldor VRBM3554T - 1.5 HP, 1710RPM, 3 Phase, 60HZ, 145TC, 7524M, TEFC 60HZ Three Phase 1.5 HP 7524 M Cable

Save $936.50
BaldorSKU: VRBM3554T

Price:
Sale price$2,809.50 Regular price$3,746.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

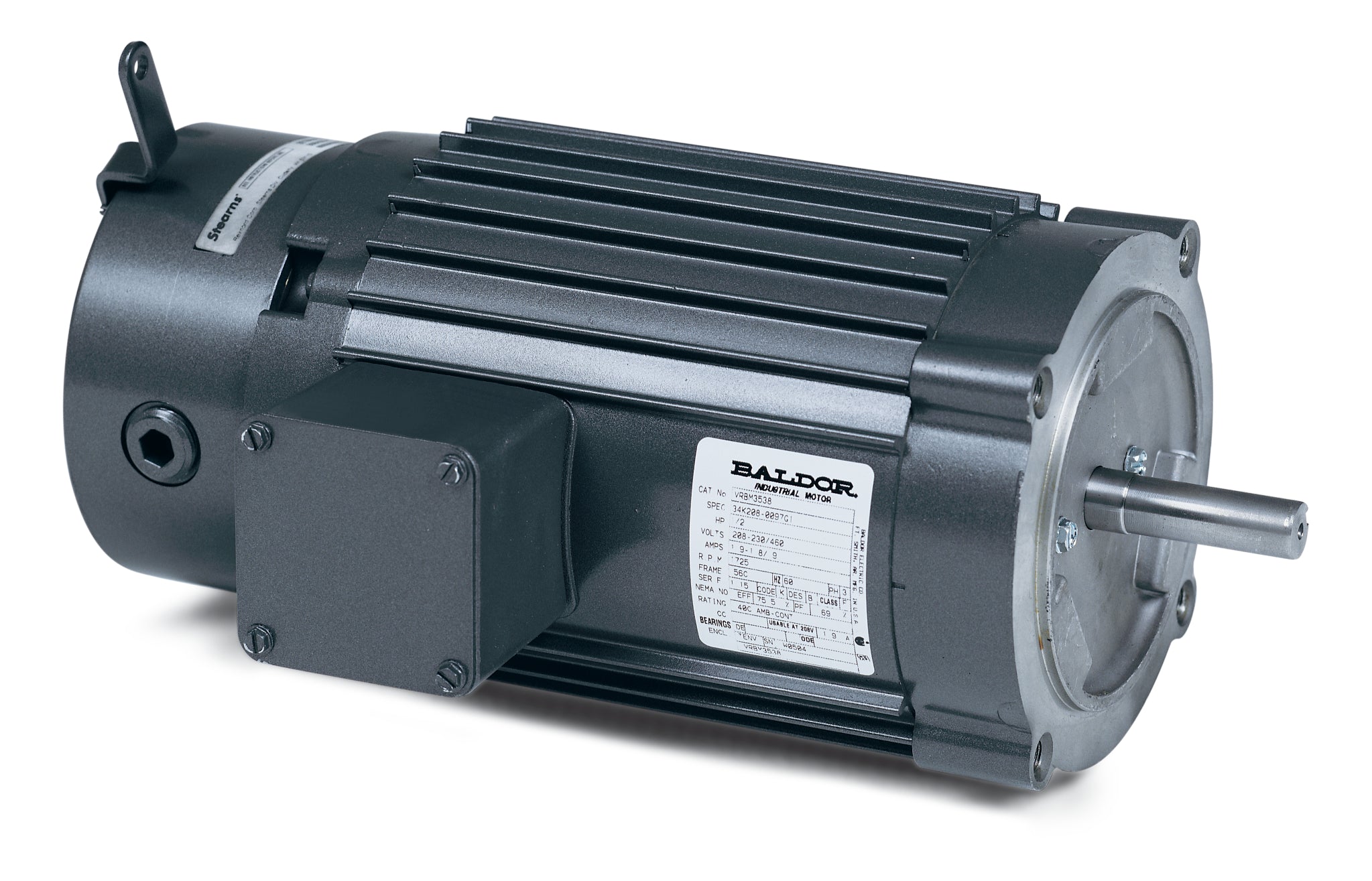

Baldor VRBM3554T - High Cycle Brake Motor

Introducing the Baldor VRBM3554T, a powerful and efficient 1.5 HP high cycle brake motor designed for demanding applications. Operating at 1710 RPM, this 3-phase motor is engineered for reliability and performance, making it an ideal choice for various industrial uses.

  • Power: 1.5 HP
  • Speed: 1710 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 145TC
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: VRBM3554T

This Baldor high cycle brake motor is built to withstand rigorous conditions while providing consistent performance. Its TEFC design ensures protection against dust and moisture, making it suitable for a variety of environments.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VRBM3554T to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568397428
Supplier Part Number VRBM3554T
Category AC Motors
Subcategory High Cycle Brake Motors
Product Family General Purpose
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 63.0
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Brake Torque 10.0 lb-ft
Catalog Number VRBM3554T
Current @ Voltage 2.150 A @ 460.0 V, 4.300 A @ 230.0 V, 4.600 A @ 208.0 V
Design Code D
Duty Rating CONT
Efficiency @ 100% Load 81.5 %
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 145TC
Frame Material Aluminum
Frequency 60.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 2.2 a
Insulation Class F
Inverter Code Not Inverter
KVA Code J
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 7524M
Mounting Arrangement F1
Number of Poles 4
Output 1.500 hp
Output @ Frequency 1.500 HP @ 60 HZ
Overall Length 15.40 IN
Phase 3
Power Factor 80
Pulley Face Code C-Face
Rodent Screen None
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1710 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Winding None
Voltage 230 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
