Baldor VRBM3546T - 1 HP, 1700RPM, 3 Phase, 60HZ, 143TC, 3436M, Tenv, F1 60HZ Three Phase 1 HP 3436 M Cable

Save $920.50
BaldorSKU: VRBM3546T

Price:
Sale price$2,761.50 Regular price$3,682.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

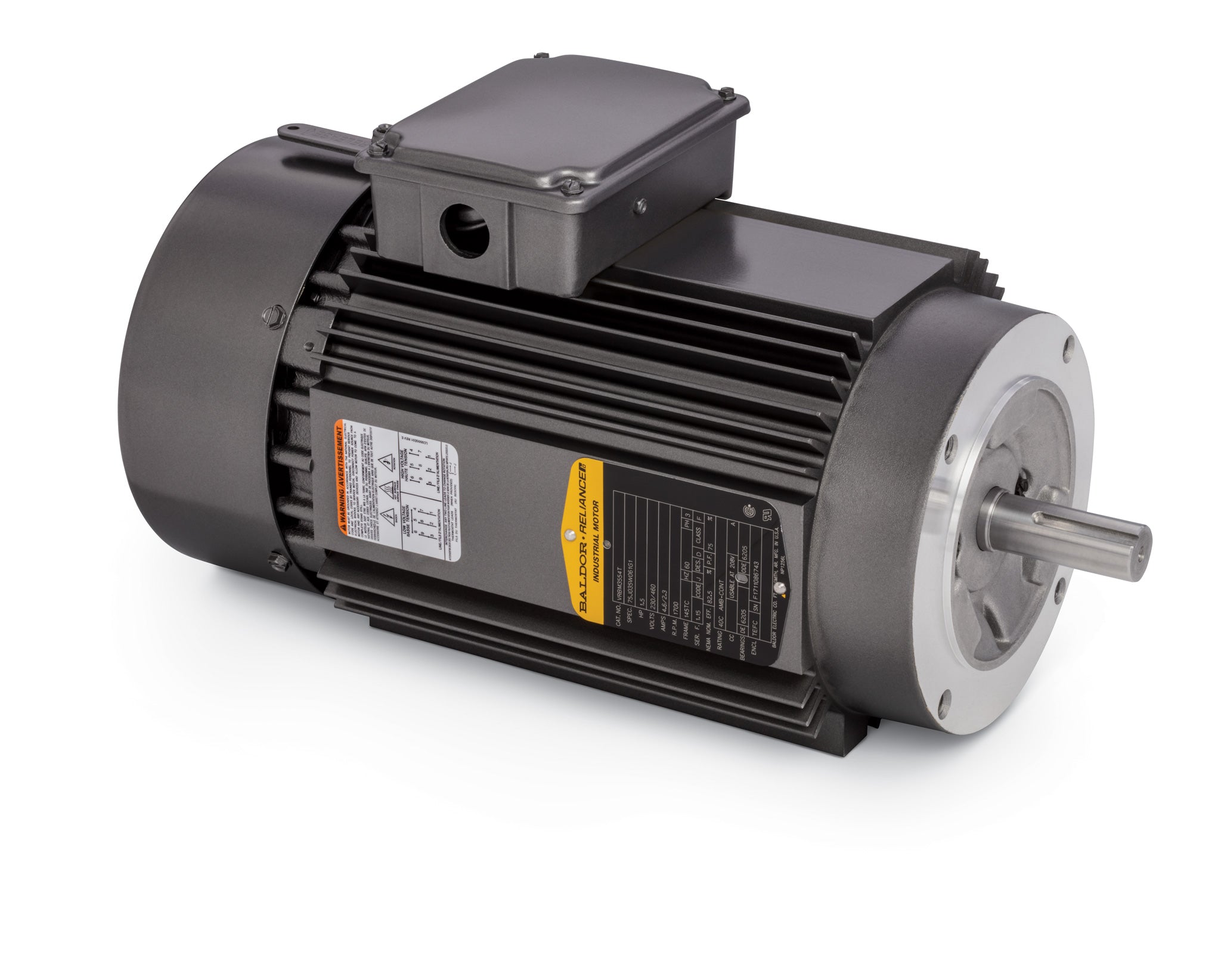

Baldor VRBM3546T High Cycle Brake Motor

Upgrade your pumping system with the Baldor VRBM3546T, a reliable and efficient 1 HP high cycle brake motor designed for demanding applications. Operating at 1700 RPM and powered by a three-phase, 60Hz electrical supply, this motor is built to deliver consistent performance and durability.

Specifications:

  • Power: 1 HP
  • Speed: 1700 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 143TC
  • Enclosure Type: TENV (Totally Enclosed Non-Ventilated)
  • Product Code: VRBM3546T

This Baldor-Reliance motor is ideal for high cycle applications, ensuring optimal performance and longevity. At Pump-Stop, we are your preferred source for replacement pumps and parts, providing you with the best solutions for your pumping needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VRBM3546T. Our team is here to help you find the perfect fit for your system.

UPC 781568468159
Supplier Part Number VRBM3546T
Category AC Motors
Subcategory High Cycle Brake Motors
Product Family General Purpose
Agency Approvals UR, CSA
Ambient Temperature 40 °C
Approximate Weight (lbs) 46.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Brake Torque 72.0 lb-in
Catalog Number VRBM3546T
Current @ Voltage 1.600 A @ 460.0 V, 3.200 A @ 230.0 V
Design Code D
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 74.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TENV
Feedback Device NO FEEDBACK
Frame 143TC
Frame Material Aluminum
Frequency 60.00 Hz
Front Face Code Brake Mounting
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.6 a
Insulation Class F
Inverter Code Not Inverter
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3436M
Mounting Arrangement F1
Number of Poles 4
Output 1.000 hp
Output @ Frequency 1.000 HP @ 60 HZ
Overall Length 15.57 IN
Phase 3
Power Factor 81
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1680 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
