Baldor VRBM3546 - 1 HP, 1700RPM, 3 Phase, 60HZ, 56C, 3436M, Tenv, F1, B 60HZ Three Phase 1 HP 3436 M Cable 56°C

Save $860.75
BaldorSKU: VRBM3546

Price:
Sale price$2,582.25 Regular price$3,443.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

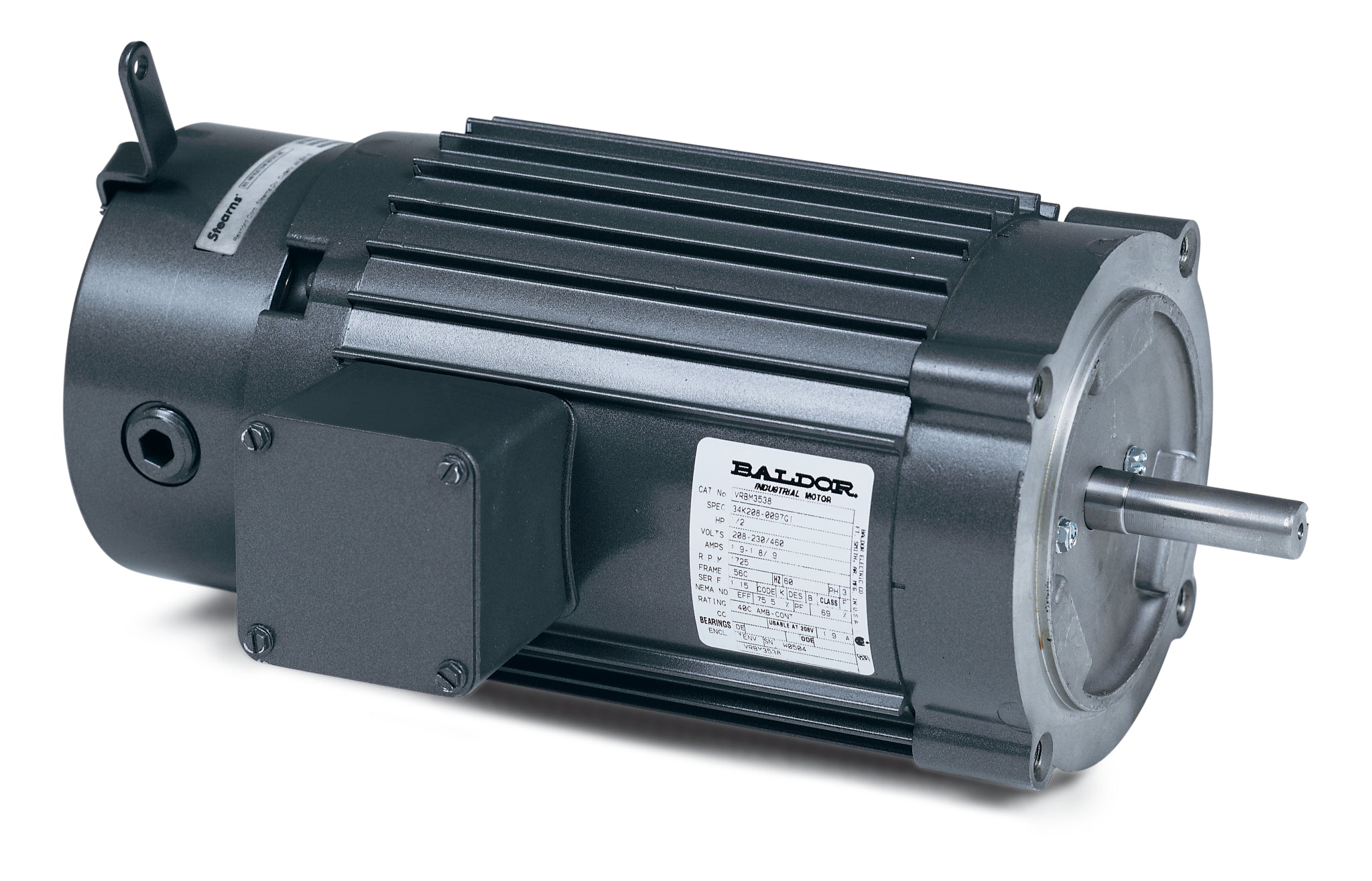

Baldor VRBM3546 High Cycle Brake Motor

The Baldor VRBM3546 is a robust and efficient 1 HP high cycle brake motor designed for demanding applications. Operating at 1700 RPM and powered by a three-phase, 60Hz electrical supply, this motor is built to deliver reliable performance in various industrial settings. With a 56C frame and TENV (Totally Enclosed Non-Ventilated) design, it ensures durability and protection against environmental factors.

Key Features:

  • Power: 1 HP
  • Speed: 1700 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 56C
  • Type: High Cycle Brake Motor
  • Product Code: VRBM3546

At Pump-Stop.com, we are your preferred source for replacement pumps and parts, ensuring you find the right components for your needs. If you have questions or need assistance in locating the correct pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VRBM3546 to ensure compatibility. Don’t hesitate to reach out if you need help finding the right item!

UPC 781568401866
Supplier Part Number VRBM3546
Category AC Motors
Subcategory High Cycle Brake Motors
Product Family General Purpose
Agency Approvals UR, CSA
Ambient Temperature 40 °C
Approximate Weight (lbs) 47.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VRBM3546
Current @ Voltage 1.600 A @ 460.0 V, 3.200 A @ 230.0 V
Design Code D
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 74.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TENV
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Aluminum
Frequency 60.00 Hz
Front Face Code Brake Mounting
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.6 a
Insulation Class F
Inverter Code Not Inverter
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3436M
Mounting Arrangement F1
Number of Poles 4
Output 1.000 hp
Output @ Frequency 1.000 HP @ 60 HZ
Overall Length 15.50 IN
Phase 3
Power Factor 81
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Speed 1680 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
