Baldor VPECP4115T - 50 HP, 1775RPM, 3 Phase, 60HZ, 326VP, 1272M, TEFC, F 60HZ Three Phase 50 HP 1272 M Cable

Save $4,645.25
BaldorSKU: VPECP4115T

Price:
Sale price$13,935.75 Regular price$18,581.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

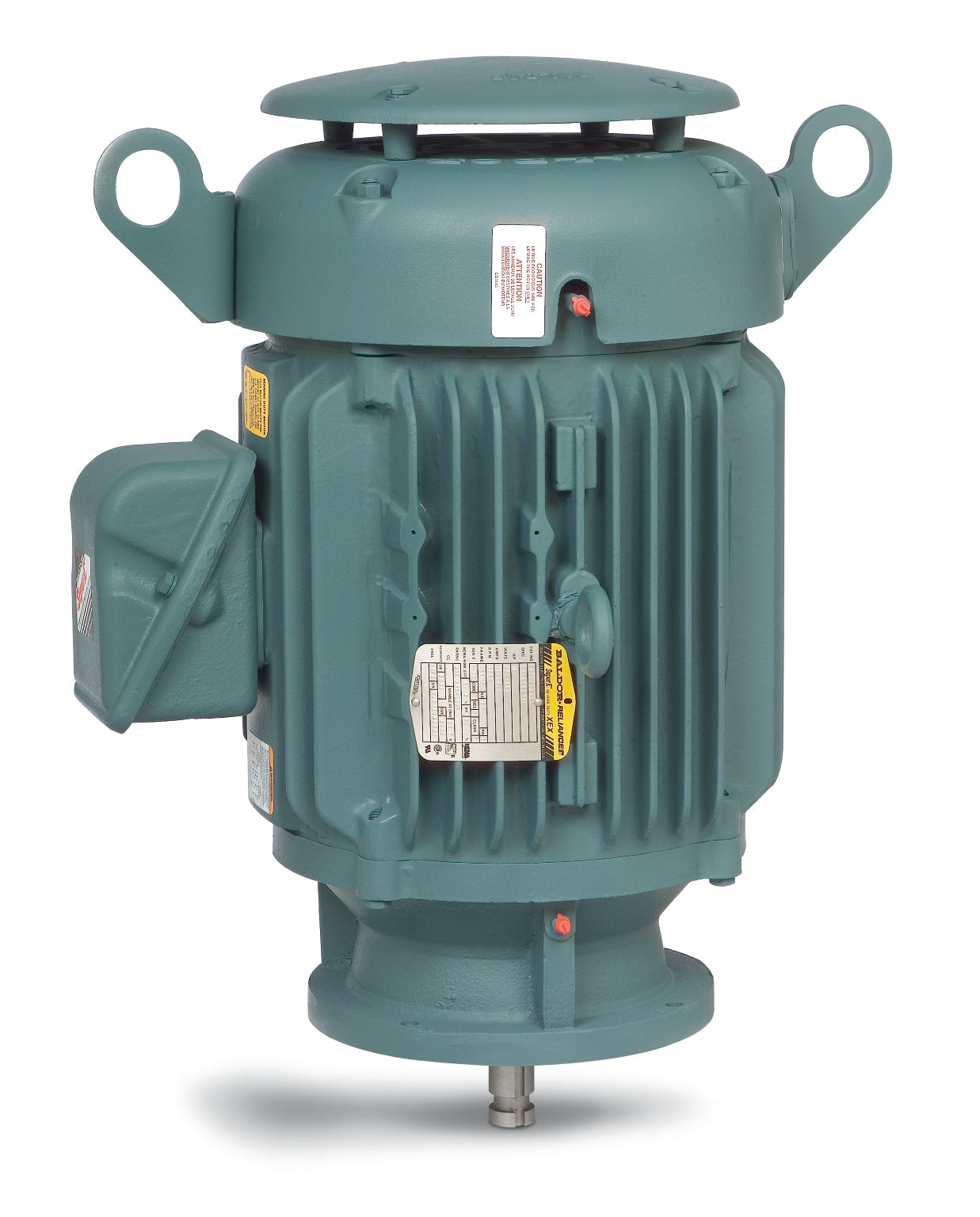

Baldor-Reliance Vertical P-Base Motor - 50 HP

Introducing the Baldor VPECP4115T, a high-performance vertical P-Base motor designed for demanding applications. With a robust power output of 50 HP and a speed of 1775 RPM, this motor operates efficiently on a 3 Phase, 60HZ electrical system. The motor features a TEFC (Totally Enclosed Fan Cooled) design, ensuring durability and protection against harsh environments.

Key Specifications:

  • Power: 50 HP
  • Speed: 1775 RPM
  • Phase: 3 Phase
  • Frequency: 60HZ
  • Voltage: 326VP
  • Frame: 1272M
  • Type: Vertical P-Base Motor

Whether you are replacing an existing motor or upgrading your system, the Baldor VPECP4115T is engineered for reliability and performance. At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905.

For optimal results, we recommend checking your current pump for the exact part number or SKU that matches the Baldor VPECP4115T. If you encounter any difficulties in locating the right item, do not hesitate to reach out to our knowledgeable team for support.

UPC 781568811283
Supplier Part Number VPECP4115T
Category AC Motors
Subcategory Vertical P-Base Motors
Product Family Chemical Processing (Not DC)
Agency Approvals CSA EEV, NEMA PREMIUM, NEMA_PREMIUM, UR, CCSA US
Ambient Temperature 40 °C
Approximate Weight (lbs) 714.999
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VPECP4115T
Constant Torque Speed Range 8
Current @ Voltage 58.000 A @ 460.0 V, 116.000 A @ 230.0 V
Design Code A
Drip Cover Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 94.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 326VP
Frame Material Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group Class I, Group A,B,C & D
Haz Area Division Division II
Haz Area Temp Code T3
Heater Indicator No Heater
High Voltage Full Load Amps 58.0 a
Insulation Class F
Inverter Code Inverter Duty
KVA Code H
Lifting Lugs Vertical Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 2700 rpm
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 6 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 1272M
Mounting Arrangement F1
Number of Poles 4
Output 50.000 hp
Output @ Frequency 50.000 HP @ 60 HZ
Overall Length 34.71 IN
Phase 3
Power Factor 85
Pulley End Bearing Type Thrust
Pulley Face Code P-Base
Pulley Shaft Indicator P-Base Groove & Key
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1775 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
