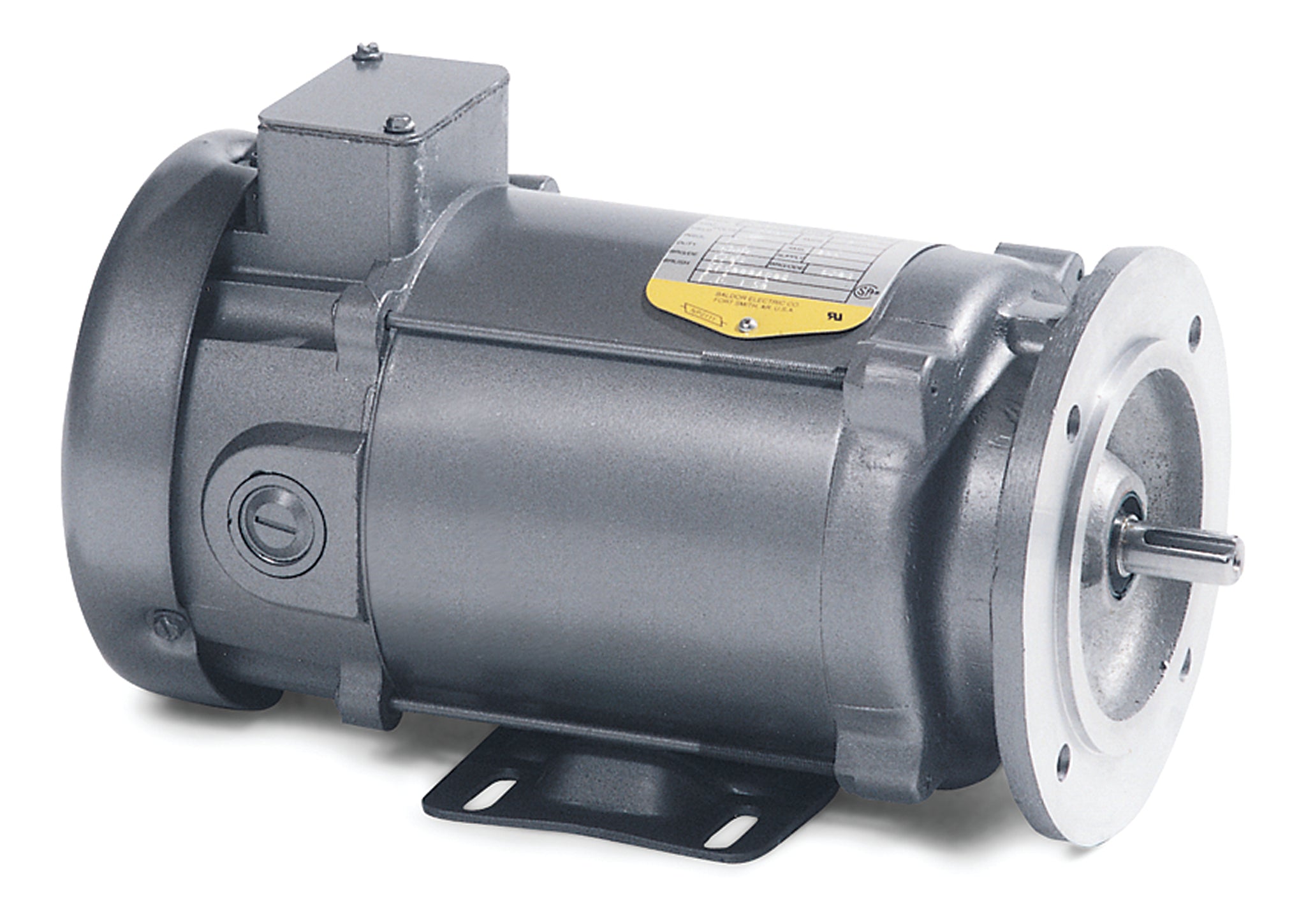

Baldor VP3605D - 3.7KW, 1750RPM, DC, D112D, 3681P, TEFC, F1

Save $2,302.00
BaldorSKU: VP3605D

Price:
Sale price$6,906.00 Regular price$9,208.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor VP3605D - General Purpose DC Motor

Discover the reliability and performance of the Baldor VP3605D, a high-quality general purpose DC motor designed for various applications. With a power output of 3.7KW and a speed of 1750RPM, this motor is engineered to deliver consistent performance in demanding environments.

Key specifications include:

  • Type: General Purpose DC Motor
  • Power: 3.7KW
  • Speed: 1750RPM
  • Frame Size: D112D
  • Model Number: 3681P
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)
  • Mounting: F1

As a trusted supplier, Pump-Stop is your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

Choose the Baldor VP3605D for your motor needs and experience the quality and durability that Baldor-Reliance is known for.

UPC 781568154939
Supplier Part Number VP3605D
Category DC Motors
Subcategory General Purpose DC Motors
Product Family General Purpose
Agency Approvals CE, CSA, UKCA, UR, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 65.0
Armature Current 24.5 a
Armature Inertia 177.060 lb-ft2
Armature Voltage 180 V
Base Indicator Rigid
Base Speed 1,750 rpm
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame D112D
Frame Material Steel
Frame Prefix D
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
Insulation Class F
Lifting Lugs Standard Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Standards IEC
Mounting Arrangement B35
Output Power 5 hp
Overall Length 28.56 IN
Pulley End Bearing Type Sealed Bearing
Service Factor 1
Shaft Diameter 1.103 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger

Motor Curves
