Baldor VM7006-I - .5//.33 HP, 1740//1450RPM, 3 Phase, 60//50HZ, 56C 50HZ Three Phase 33 HP 56°C

Save $214.50
BaldorSKU: VM7006-I

Price:
Sale price$643.50 Regular price$858.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

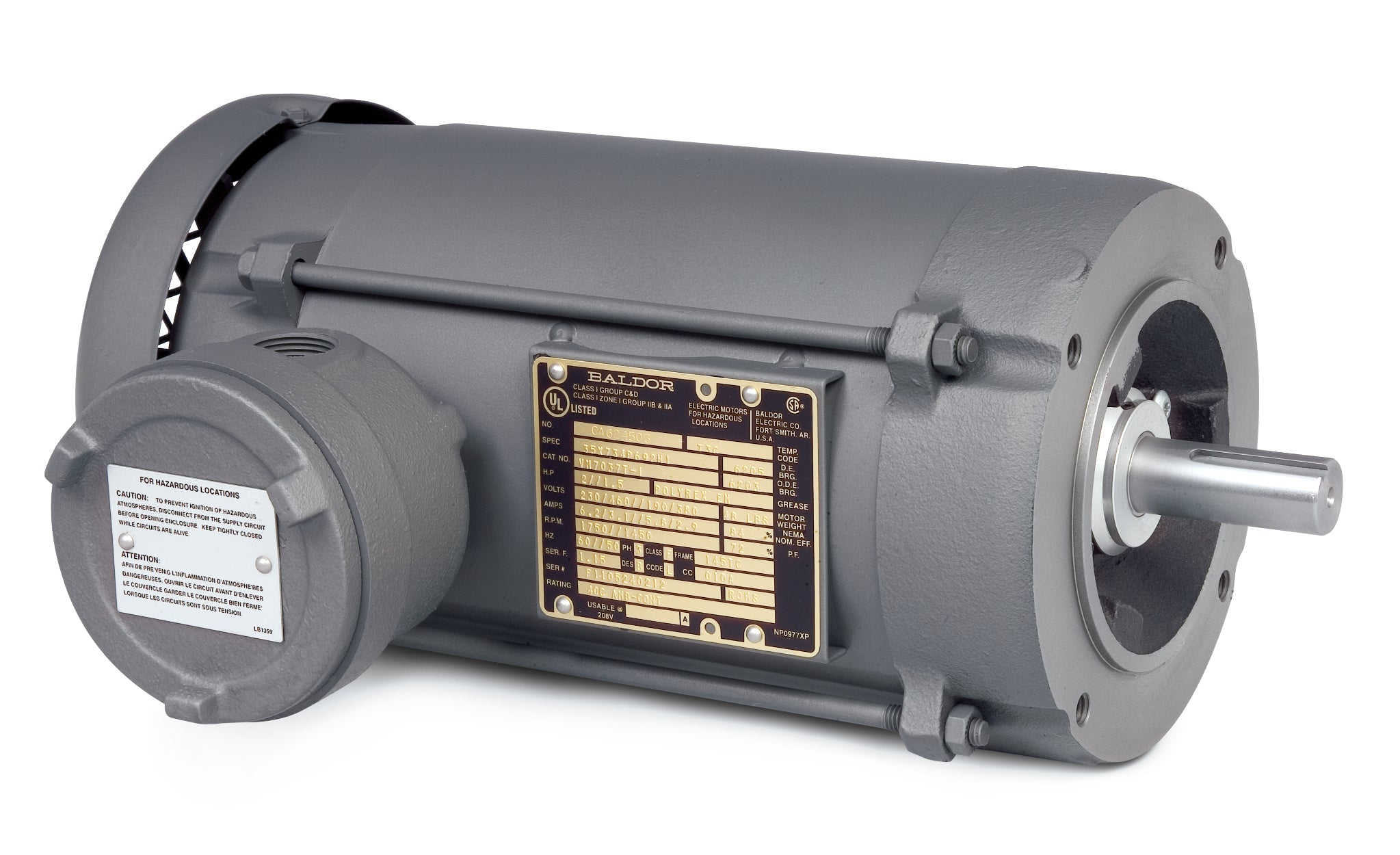

Baldor VM7006-I Explosion Proof Drill Rig Duty Motor

The Baldor VM7006-I is a high-performance explosion proof drill rig duty motor designed for demanding applications. With a power output of .5 HP (or .33 HP), this motor operates at dual speeds of 1740 RPM and 1450 RPM, making it versatile for various industrial tasks. It is engineered for three-phase operation at 60/50 Hz, ensuring reliable performance in challenging environments.

Key Features:

  • Power: .5 HP / .33 HP
  • Speed: 1740 RPM / 1450 RPM
  • Phase: 3 Phase
  • Frequency: 60/50 Hz
  • Frame Size: 56C
  • Type: Explosion Proof Drill Rig Duty Motor

This motor is ideal for applications requiring robust and reliable performance in hazardous locations. At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts, ensuring you have access to the best products for your needs.

If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VM7006-I to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568503591
Supplier Part Number VM7006-I
Category AC Motors
Subcategory Explosion Proof Drill Rig Duty Motors
Product Family Hazardous Location Motor
Agency Approvals CSA, UL
Ambient Temperature 40 °C
Approximate Weight (lbs) 51.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VM7006-I
Current @ Voltage 1.900 A @ 208.0 V, 1.800 A @ 230.0 V, 1.740 A @ 190.0 V, .900 A @ 460.0 V, .870 A @ 380.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 80.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TENV
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 50.00 Hz, 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group Class I, Group C & D
Haz Area Division Division I
Haz Area Temp Code T3C
Heater Indicator No Heater
High Voltage Full Load Amps 0.9 a
Insulation Class F
Inverter Code Not Inverter
IP Rating NONE
KVA Code M
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3512M
Mounting Arrangement F1
Number of Poles 4
Output 0.330 hp @ 50 Hz, 0.500 hp @ 60 Hz
Output @ Frequency .330 HP @ 50 HZ, .500 HP @ 60 HZ
Overall Length 13.14 IN
Phase 3
Power Factor 65
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS NON-COMPLIANT
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1475 rpm, 1770 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Normally Closed Thermostat
Vibration Sensor Indicator No Vibration Sensor
Voltage 190 V @ 50 Hz, 380 V @ 50 Hz, 230 V @ 60 Hz, 460 V @ 60 Hz
Voltage @ Frequency 460.0 V @ 60 HZ, 380.0 V @ 50 HZ, 230.0 V @ 60 HZ, 190.0 V @ 50 HZ
Winding Thermal 1 None
Winding Thermal 2 None
