Baldor VM3539 - .5 HP, 1140RPM, 3 Phase, 60HZ, 56C, 3418M, TEFC, F1 60HZ Three Phase Three Phase 5 HP 3418 M Cable 56°C

Save $249.50
BaldorSKU: VM3539

Price:
Sale price$748.50 Regular price$998.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

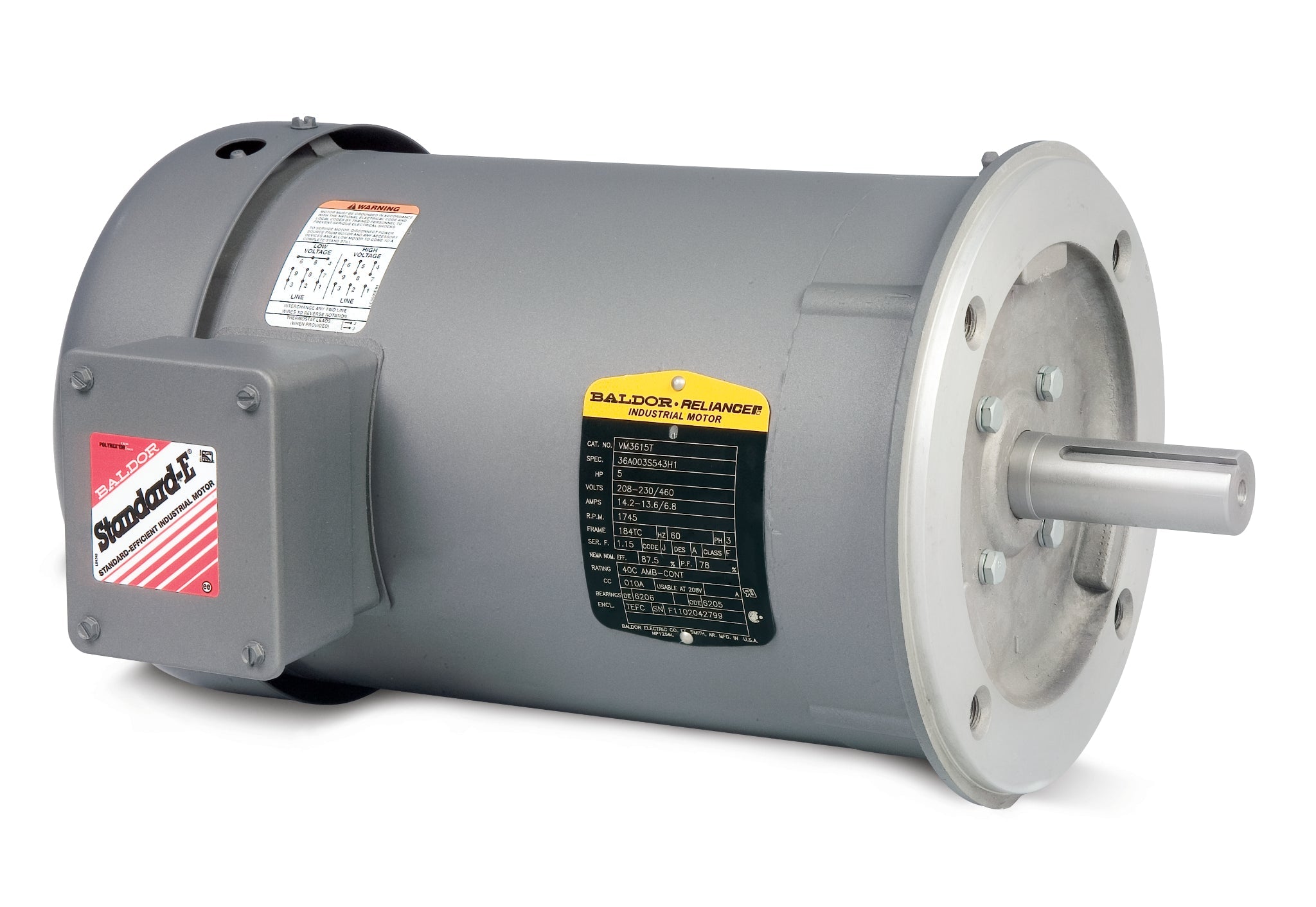

Baldor VM3539 - 0.5 HP Three Phase Enclosed Motor

Discover the reliability and performance of the Baldor VM3539, a robust 0.5 HP, 1140 RPM three-phase motor designed for various industrial applications. Operating at 60Hz, this TEFC (Totally Enclosed Fan Cooled) motor ensures durability and efficiency, making it an ideal choice for your pumping needs.

  • Power: 0.5 HP
  • Speed: 1140 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 56C
  • Enclosure Type: TEFC
  • Product Code: VM3539

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VM3539 to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568109571
Supplier Part Number VM3539
Category AC Motors
Subcategory Three Phase Enclosed
Product Family General Purpose
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 24.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VM3539
Current @ Voltage 1.200 A @ 460.0 V, 2.400 A @ 230.0 V, 2.700 A @ 208.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 72.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.2 a
Insulation Class B
Inverter Code Not Inverter
KVA Code J
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3418M
Mounting Arrangement F1
Number of Poles 6
Output 0.500 hp
Output @ Frequency .500 HP @ 60 HZ
Overall Length 11.35 IN
Phase 3
Power Factor 55
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1140 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
