Baldor VM3537 - .5 HP, 3420RPM, 3 Phase, 60HZ, 56C, 3410M, TEFC, F1 60HZ Three Phase Three Phase 5 HP 3410 M Cable 56°C

Save $159.00
BaldorSKU: VM3537

Price:
Sale price$477.00 Regular price$636.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

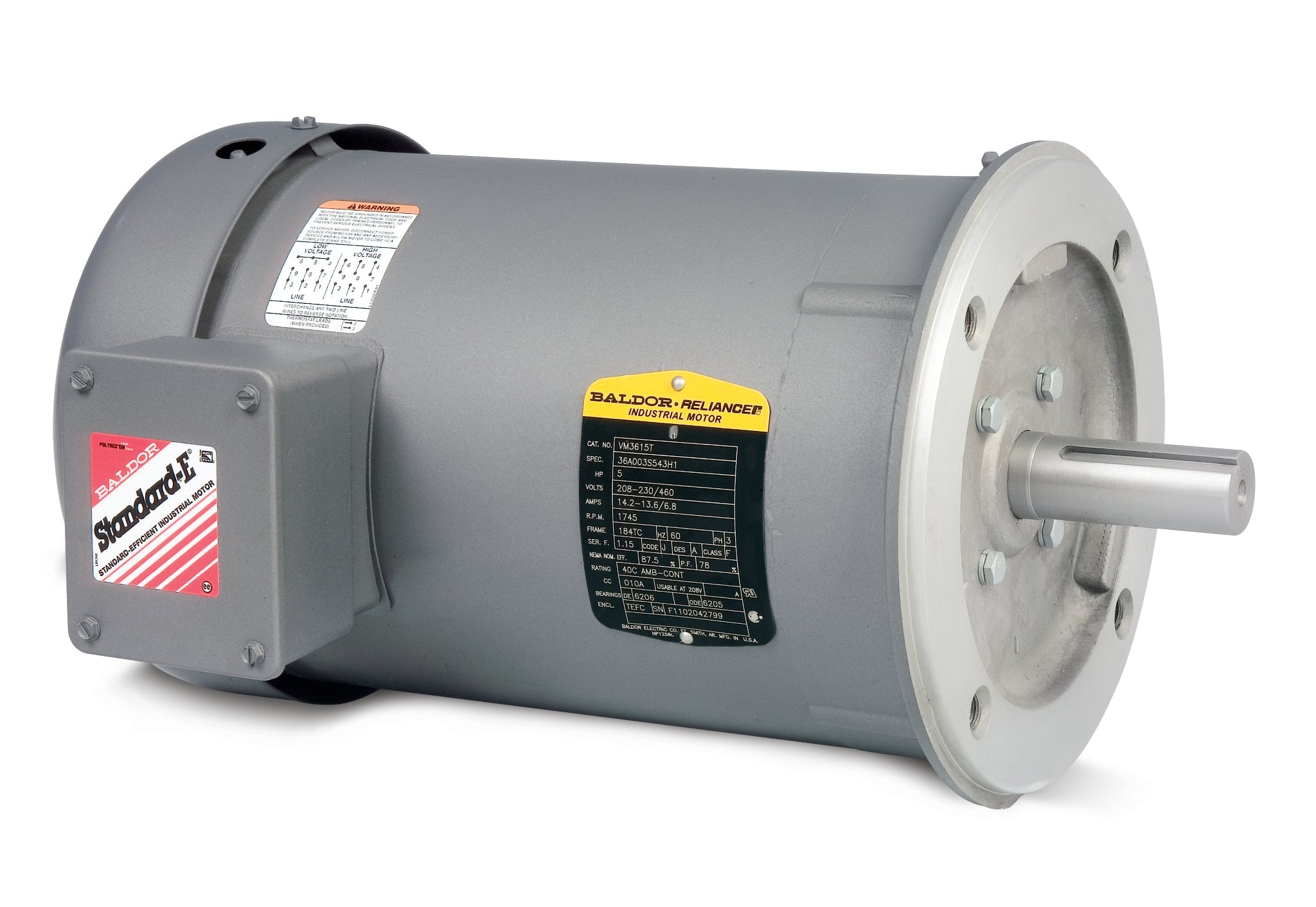

Baldor VM3537 - 0.5 HP Three Phase Enclosed Motor

Discover the reliability and performance of the Baldor VM3537, a high-quality 0.5 HP, 3420 RPM three-phase enclosed motor designed for various industrial applications. This motor operates at 60Hz and features a TEFC (Totally Enclosed Fan Cooled) design, ensuring durability and efficiency in demanding environments.

Specifications:

  • Power: 0.5 HP
  • Speed: 3420 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame: 56C
  • Enclosure: TEFC
  • Product Code: VM3537

This Baldor-Reliance motor is ideal for applications requiring robust performance and minimal maintenance. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VM3537 to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568109540
Supplier Part Number VM3537
Category AC Motors
Subcategory Three Phase Enclosed
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 20.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VM3537
Current @ Voltage .800 A @ 460.0 V, 1.540 A @ 208.0 V, 1.600 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 72.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 0.8 a
Insulation Class B
Inverter Code Not Inverter
KVA Code J
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3410M
Mounting Arrangement F1
Number of Poles 2
Output 0.500 hp
Output @ Frequency .500 HP @ 60 HZ
Overall Length 11.35 IN
Phase 3
Power Factor 80
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3420 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
