Baldor VM3534-57 - 13M 4P TEFC Ver 56C Three Phase 13 M Cable 56°C

Save $168.00
BaldorSKU: VM3534-57

Price:
Sale price$504.00 Regular price$672.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

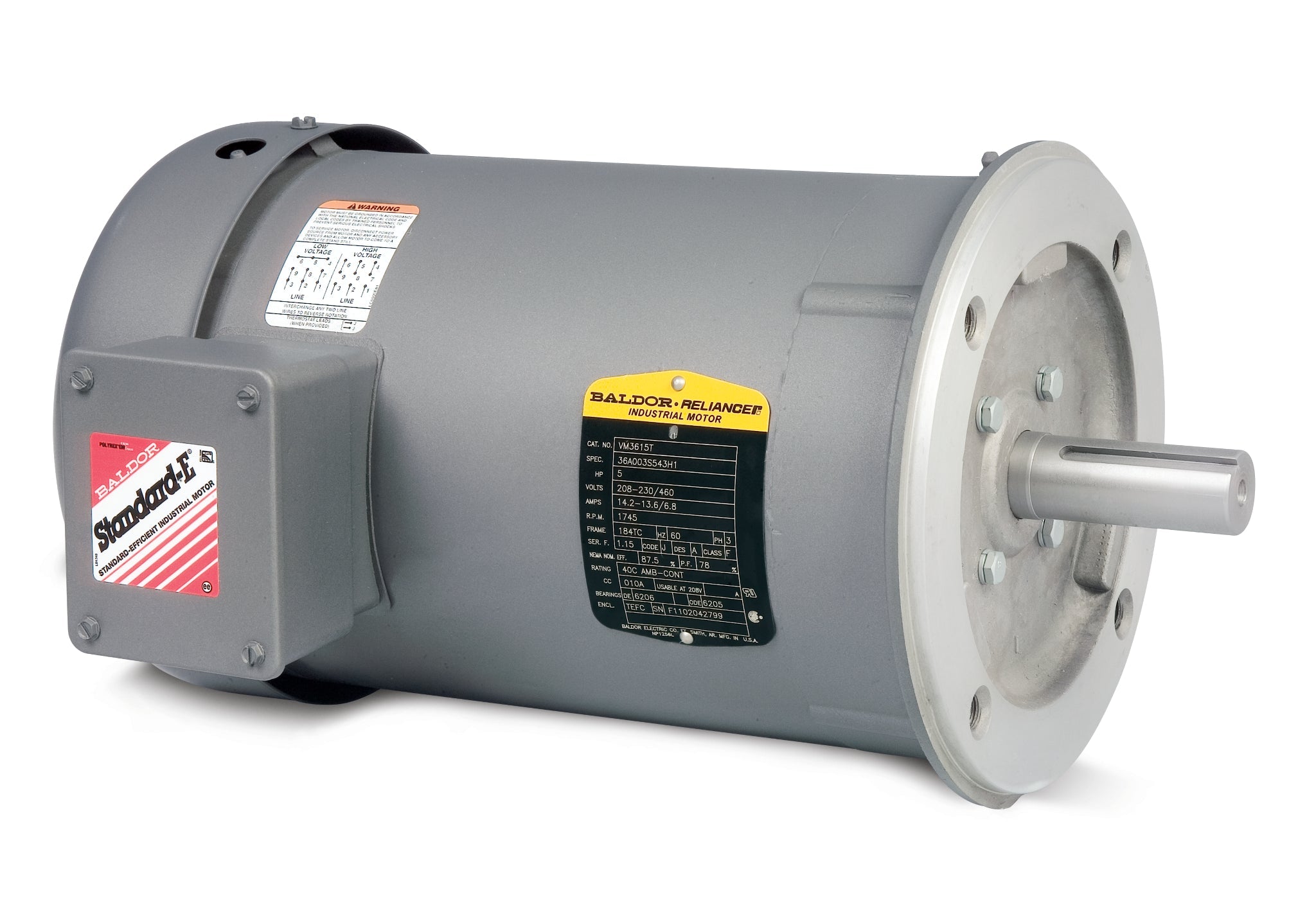

Baldor VM3534-57 - 13M 4P TEFC Ver 56C Three Phase Enclosed Motor

The Baldor VM3534-57 is a high-performance three-phase enclosed motor designed for reliable operation in various industrial applications. With a robust 13M 4P TEFC (Totally Enclosed Fan Cooled) construction, this motor ensures durability and efficiency, making it an ideal choice for pump systems and other machinery.

Key Features:

  • Product Code: VM3534-57
  • Type: Three Phase Enclosed
  • TEFC Design for enhanced protection against dust and moisture
  • Optimized for use in pump motors and other demanding applications

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VM3534-57 to ensure compatibility. If you encounter any difficulties, our team is here to help you find the right item.

UPC 781568656655
Supplier Part Number VM3534-57
Category AC Motors
Subcategory Three Phase Enclosed
Product Family General Purpose
Agency Approvals CE, CURUS, UKCA, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 21.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VM3534-57
Current @ Voltage 1.400 A @ 230.0 V, .700 A @ 400.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 74.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 50.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 0.7 a
Insulation Class B
Inverter Code Not Inverter
KVA Code H
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3413M
Mounting Arrangement F1
Number of Poles 4
Output 0.330 hp
Output @ Frequency .330 HP @ 50 HZ
Overall Length 11.35 IN
Phase 3
Power Factor 67
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.35
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1425 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,500 rpm
Synchronous Speed @ Frequency 1500 RPM @ 50 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 400 V, 230 V
Voltage @ Frequency 230.0 V @ 50 HZ, 400.0 V @ 50 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
