Baldor VM3531 - .25 HP, 1140RPM, 3 Phase, 60HZ, 56C, 3411M, TEFC, F1 60HZ Three Phase Three Phase 25 HP 3411 M Cable 56°C

Save $207.00
BaldorSKU: VM3531

Price:
Sale price$621.00 Regular price$828.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

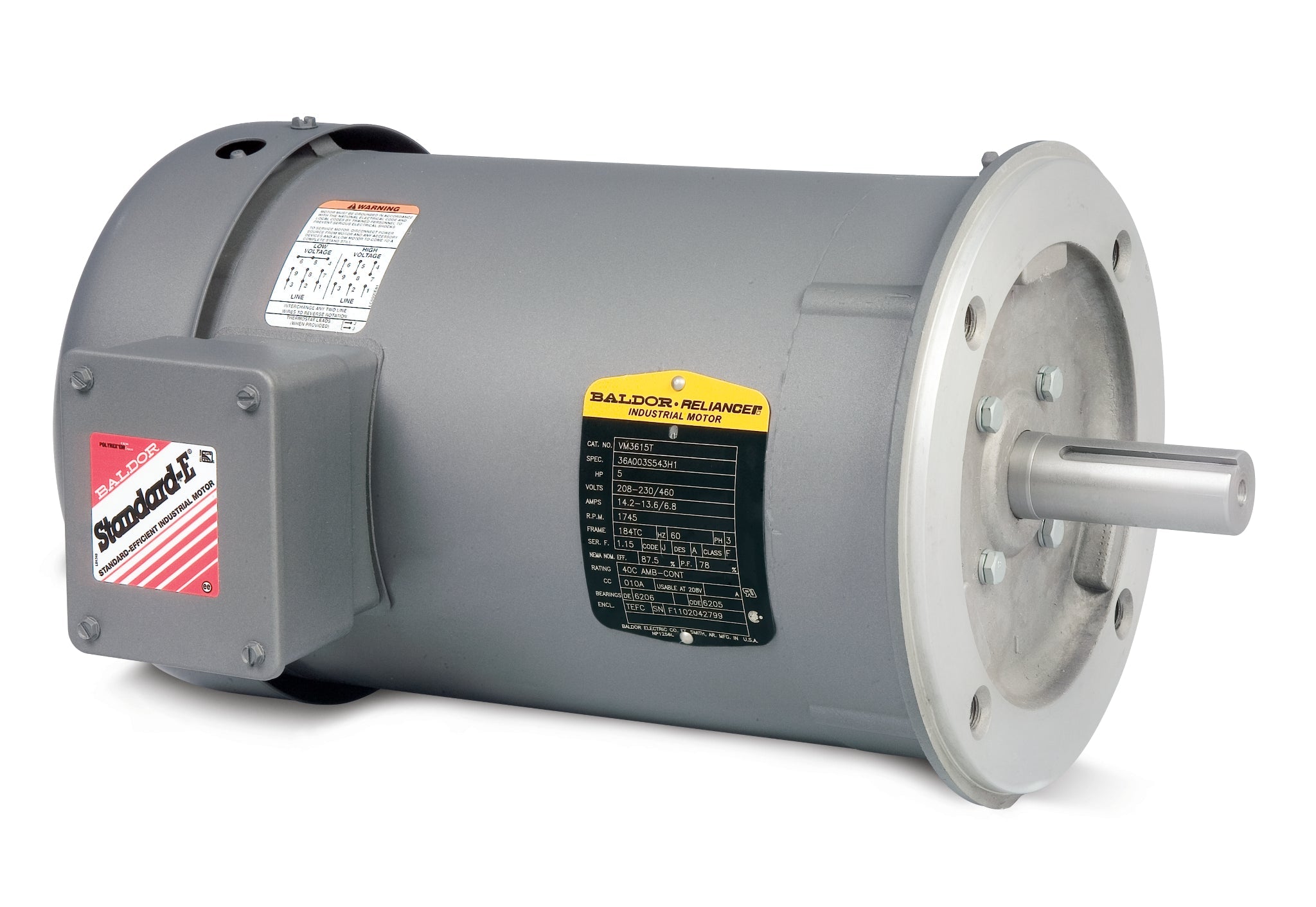

Baldor VM3531 - .25 HP Three Phase Enclosed Motor

The Baldor VM3531 is a high-performance .25 HP, 1140 RPM three-phase motor designed for reliable operation in various applications. With a robust TEFC (Totally Enclosed Fan Cooled) design, this motor ensures durability and protection against dust and moisture, making it ideal for industrial environments.

Specifications:

  • Power: .25 HP
  • Speed: 1140 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame: 56C
  • Enclosure: TEFC
  • Product Code: VM3531

As a trusted supplier, Pump-Stop is your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VM3531 to ensure compatibility. If you encounter any difficulties, our team is here to help you find the right item.

UPC 781568109496
Supplier Part Number VM3531
Category AC Motors
Subcategory Three Phase Enclosed
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 20.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VM3531
Current @ Voltage .700 A @ 460.0 V, 1.400 A @ 230.0 V, 1.600 A @ 208.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 68.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 0.7 a
Insulation Class B
Inverter Code Not Inverter
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3411M
Mounting Arrangement F1
Number of Poles 6
Output 0.250 hp
Output @ Frequency .250 HP @ 60 HZ
Overall Length 11.35 IN
Phase 3
Power Factor 51
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.35
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1140 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
