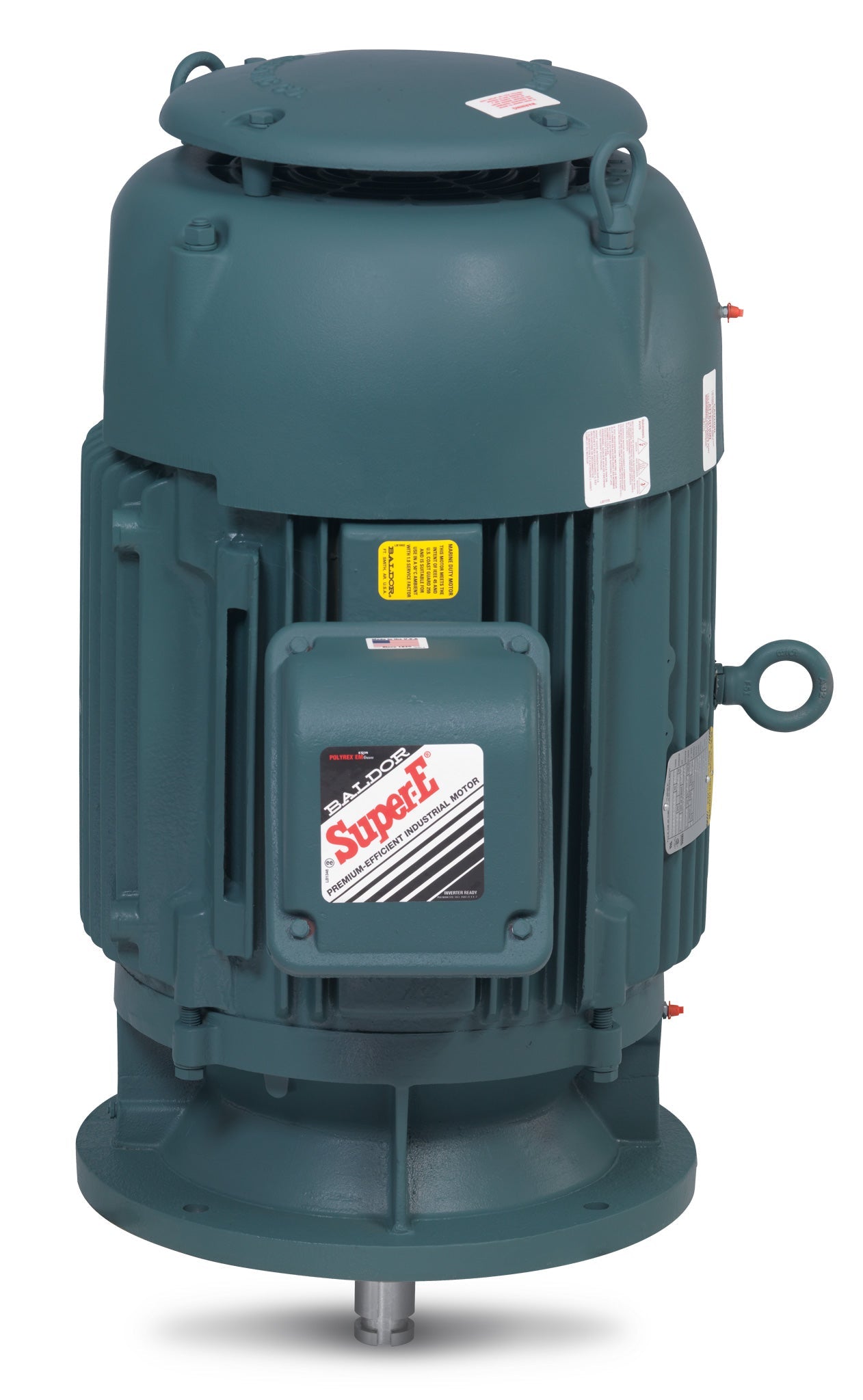

UPC
781568811108
Supplier Part Number
VLECP3771T
Category
AC Motors
Subcategory
Vertical P-Base Motors
Product Family
Super-E Chemical Processing
Agency Approvals
CCSA US, CSA EEV, NEMA_PREMIUM, UR
Ambient Temperature
40 °C
Approximate Weight (lbs)
182.0
Auxillary Box
No Auxillary Box
Auxillary Box Lead Termination
None
Base Indicator
No Mounting
Bearing Grease Type
Polyrex EM (-20F +300F)
Blower
None
Catalog Number
VLECP3771T
Constant Torque Speed Range
6
Current @ Voltage
24.500 A @ 208.0 V, 22.000 A @ 230.0 V, 11.000 A @ 460.0 V
Design Code
B
Drip Cover
Drip Cover
Duty Rating
CONT
Efficiency @ 100% Load
92.4 %
Electrically Isolated Bearing
Not Electrically Isolated
Enclosure
TEFC
Enclosure Modification
841
Feedback Device
NO FEEDBACK
Frame
215LP
Frame Material
Cast Iron
Frequency
60.00 Hz
Front Face Code
Drip Cover Mounting
Front Shaft Indicator
None
Haz Area Class and Group
Class I, Group A,B,C & D
Haz Area Division
Division II
Haz Area Temp Code
T3C
Heater Indicator
No Heater
High Voltage Full Load Amps
11.0 a
Insulation Class
F
Inverter Code
Inverter Duty
KVA Code
H
Lifting Lugs
Vertical Lifting Lugs
Locked Bearing Indicator
Locked Bearing
Max Speed
5400 rpm
Motor Lead Exit
Ko Box
Motor Lead Quantity/Wire Size
9 @ 14 AWG
Motor Lead Termination
Flying Leads
Motor Letter Type
Three Phase
Motor Standards
NEMA
Motor Type
0742M
Mounting Arrangement
F1
Number of Poles
2
Output
10.000 hp
Output @ Frequency
10.000 HP @ 60 HZ
Overall Length
22.51 IN
Phase
3
Power Factor
90
Pulley End Bearing Type
Thrust
Pulley Face Code
P-Base
Pulley Shaft Indicator
P-Base Groove & Key
Rodent Screen
None
Service Factor
1.15
Shaft Diameter
1.625 IN
Shaft Extension Location
Pulley End
Shaft Ground Indicator
No Shaft Grounding
Shaft Rotation
Reversible
Shaft Slinger Indicator
No Slinger
Speed
3500 rpm
Speed Code
Single Speed
Starting Method
Direct on line
Synchronous Speed
3,600 rpm
Synchronous Speed @ Frequency
3600 RPM @ 60 HZ
Thermal Device - Bearing
None
Thermal Device - Winding
None
Vibration Sensor Indicator
No Vibration Sensor
Voltage
230 V, 460 V
Voltage @ Frequency
460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1
None
Winding Thermal 2
None
