Baldor VLECP3769T - 7.5 HP, 3510RPM, 3 Phase, 60HZ, 213LP, 0732M, TEFC 60HZ Three Phase 7.5 HP 0732 M Cable

Save $1,643.75
BaldorSKU: VLECP3769T

Price:
Sale price$4,931.25 Regular price$6,575.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

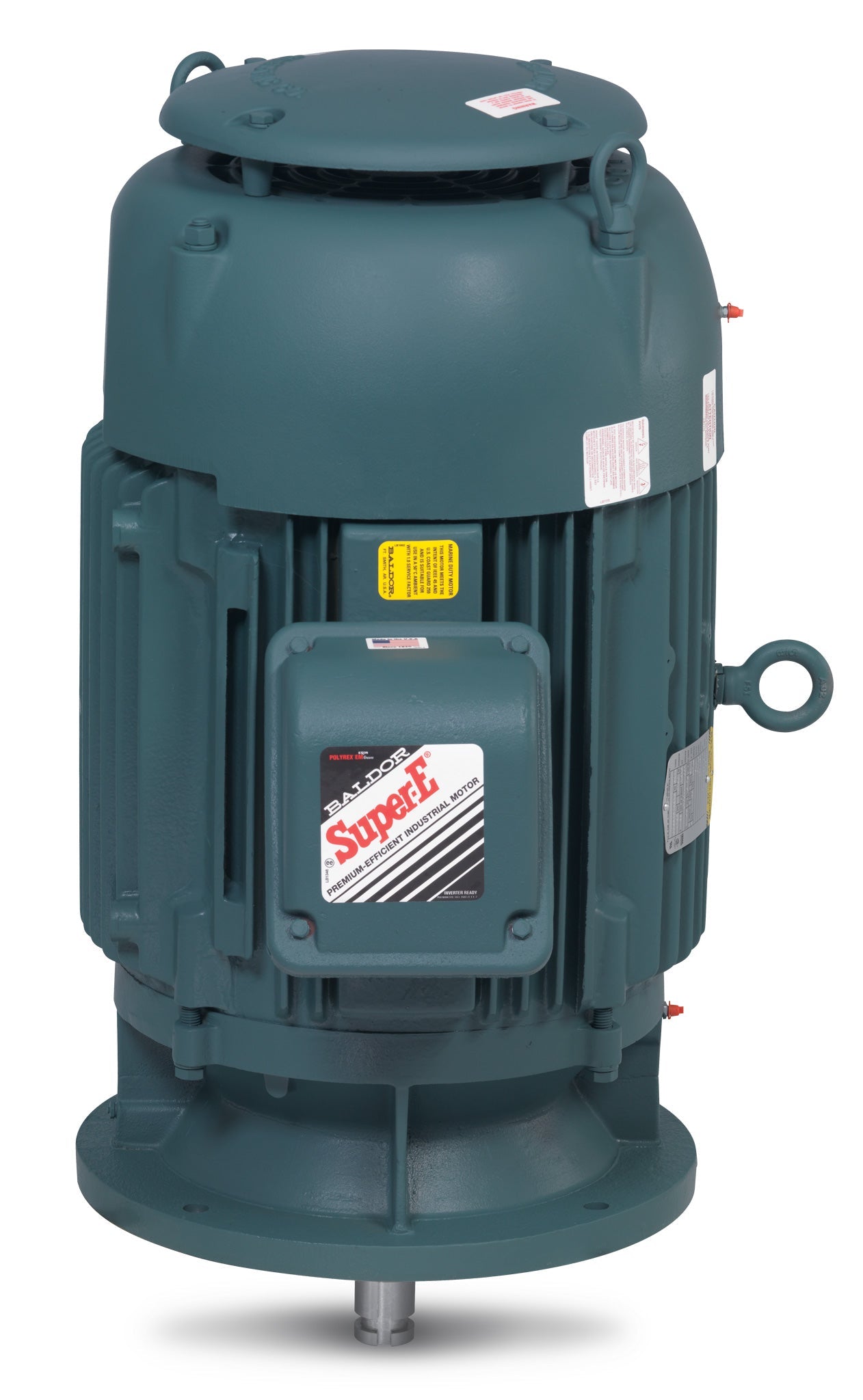

Baldor VLECP3769T Vertical P-Base Motor

Upgrade your pumping system with the Baldor VLECP3769T, a high-performance vertical P-base motor designed for reliability and efficiency. This robust motor features:

  • Power: 7.5 HP
  • Speed: 3510 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 213LP
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: VLECP3769T

This Baldor-Reliance motor is ideal for various applications, providing exceptional performance and durability. Whether you need to replace an existing motor or upgrade your system, the VLECP3769T is engineered to meet your needs.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568811085
Supplier Part Number VLECP3769T
Category AC Motors
Subcategory Vertical P-Base Motors
Product Family Super-E Chemical Processing
Agency Approvals NEMA_PREMIUM, UR, CSA EEV, CCSA US
Ambient Temperature 40 °C
Approximate Weight (lbs) 169.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VLECP3769T
Constant Torque Speed Range 6
Current @ Voltage 17.200 A @ 230.0 V, 8.600 A @ 460.0 V
Design Code B
Drip Cover Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Enclosure Modification 841
Feedback Device NO FEEDBACK
Frame 213LP
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Drip Cover Mounting
Front Shaft Indicator None
Haz Area Class and Group Class I, Group A,B,C & D
Haz Area Division Division II
Haz Area Temp Code T3C
Heater Indicator No Heater
High Voltage Full Load Amps 8.6 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code H
Lifting Lugs Vertical Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 5400 rpm
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 0732M
Mounting Arrangement F1
Number of Poles 2
Output 7.500 hp
Output @ Frequency 7.500 HP @ 60 HZ
Overall Length 22.51 IN
Phase 3
Power Factor 88
Pulley End Bearing Type Thrust
Pulley Face Code P-Base
Pulley Shaft Indicator P-Base Groove & Key
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 1.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3510 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
