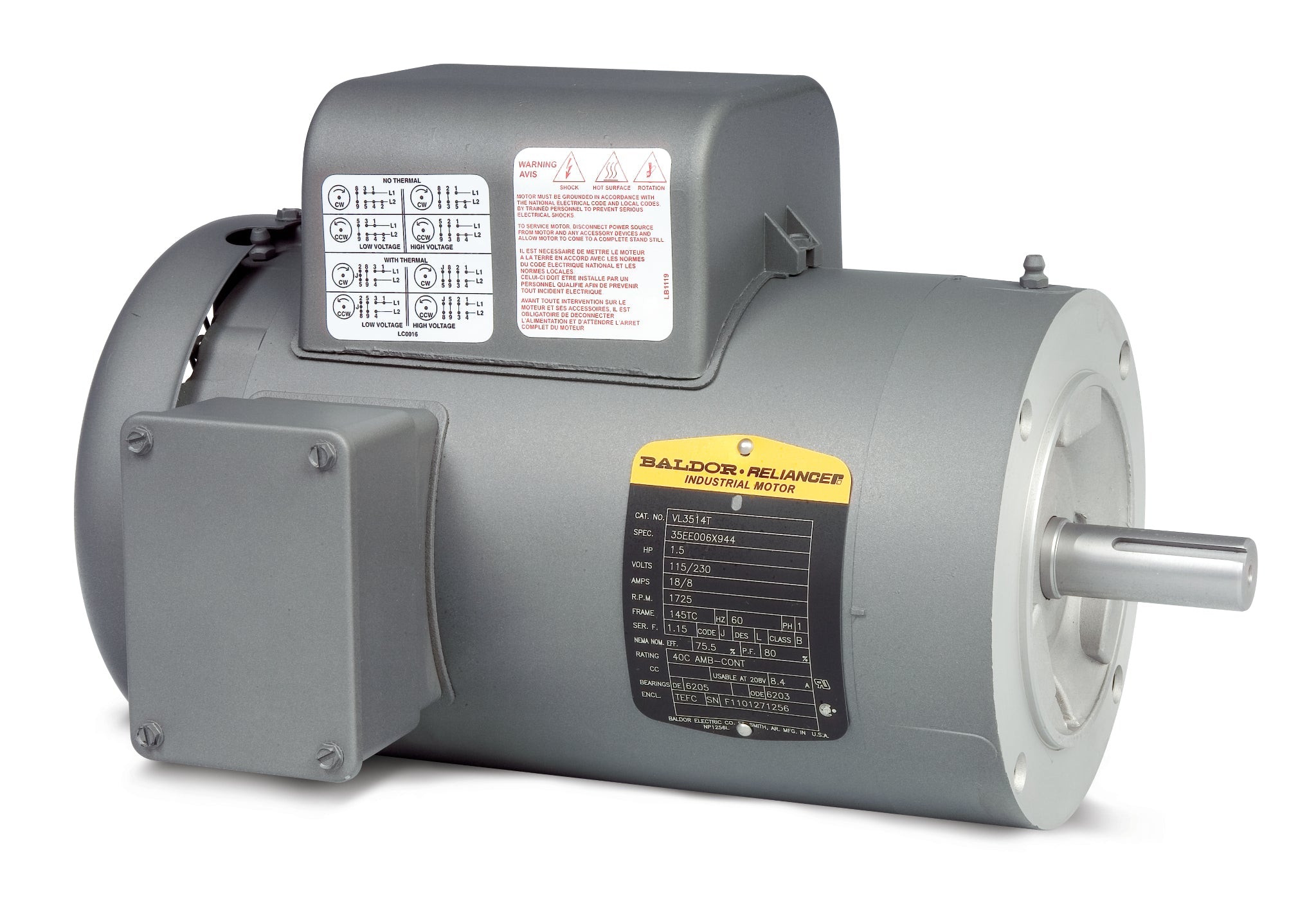

Baldor VL3609T - 3 HP, 1725RPM, 1 Phase, 60HZ, 184TC, 3634LC, TEFC 60HZ Single Phase Single Phase 3 HP

Save $604.75
BaldorSKU: VL3609T

Price:
Sale price$1,814.25 Regular price$2,419.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor VL3609T - 3 HP Single Phase Enclosed Motor

The Baldor VL3609T is a high-performance single phase enclosed motor designed for a variety of applications. With a robust 3 HP power output and a speed of 1725 RPM, this motor is ideal for those seeking reliability and efficiency in their operations. It operates at 60HZ and features a 184TC frame size, making it suitable for various industrial and commercial uses.

Key Features:

  • Power: 3 HP
  • Speed: 1725 RPM
  • Phase: Single Phase
  • Frequency: 60HZ
  • Frame Size: 184TC
  • Type: Totally Enclosed Fan Cooled (TEFC)
  • Product Code: VL3609T

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VL3609T to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568109229
Supplier Part Number VL3609T
Category AC Motors
Subcategory Single Phase Enclosed
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 79.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VL3609T
Current @ Voltage 14.000 A @ 230.0 V, 15.500 A @ 208.0 V, 28.000 A @ 115.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 78.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 184TC
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 14.0 a
Insulation Class F
Inverter Code Not Inverter
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 4 @ 14 AWG, A PH
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3634LC
Mounting Arrangement F1
Number of Poles 4
Output 3.000 hp
Output @ Frequency 3.000 HP @ 60 HZ
Overall Length 16.55 IN
Phase 1
Power Factor 85
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1725 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 115 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
