Baldor VL3510 - 1 HP, 1725RPM, 1 Phase, 60HZ, 56C, 3524L, TEFC, F1, N 60HZ Single Phase Single Phase 1 HP 56°C

Save $252.75
BaldorSKU: VL3510

Price:
Sale price$758.25 Regular price$1,011.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

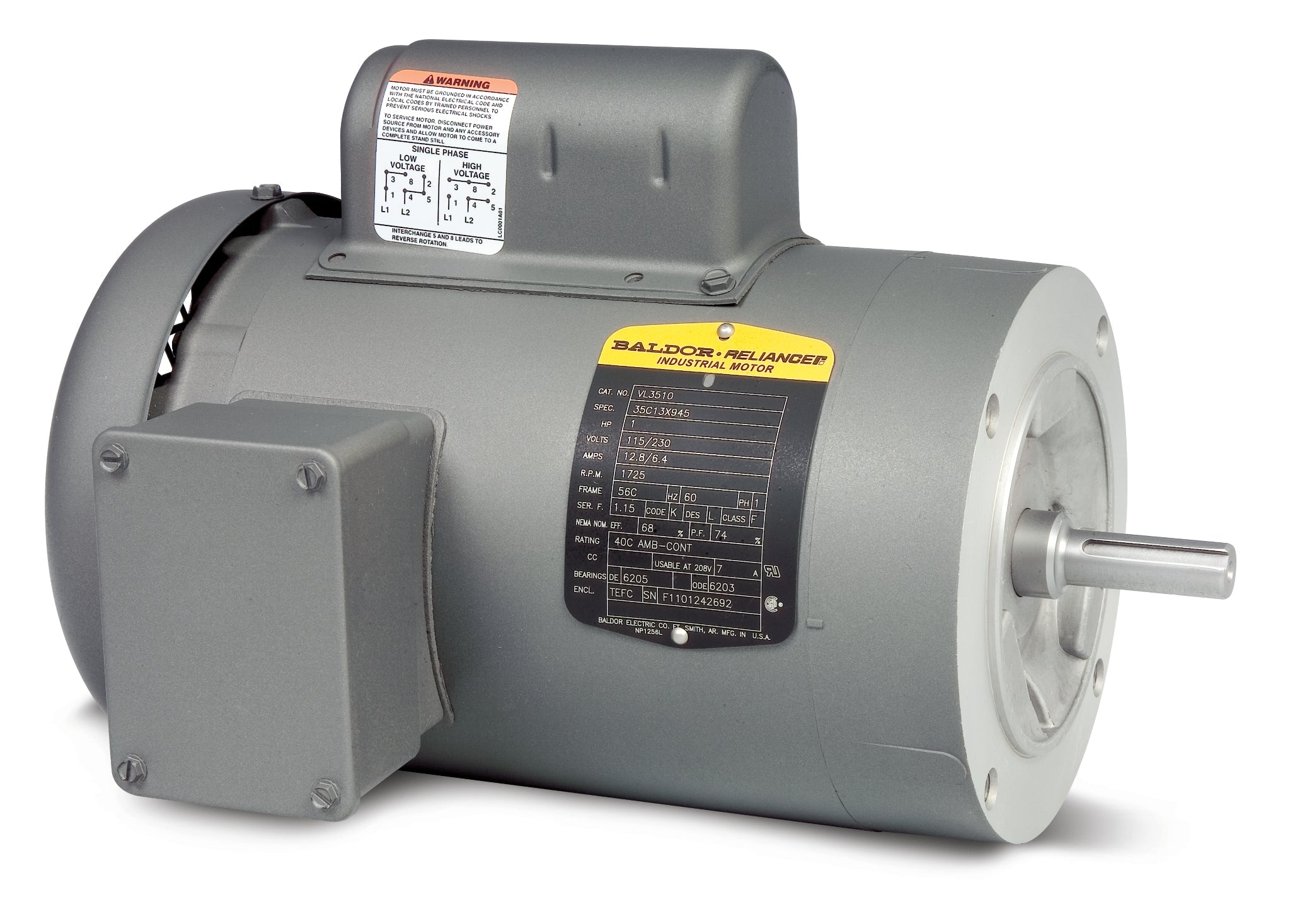

Baldor VL3510 - 1 HP Single Phase Enclosed Motor

The Baldor VL3510 is a high-performance single-phase enclosed motor designed for reliable operation in various applications. With a power output of 1 HP and a speed of 1725 RPM, this motor is ideal for driving pumps and other machinery that require consistent performance. It operates at 60Hz and features a 56C frame size, ensuring compatibility with a wide range of setups.

Key Features:

  • Power: 1 HP
  • Speed: 1725 RPM
  • Phase: Single Phase
  • Frequency: 60Hz
  • Frame Size: 56C
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: VL3510

This Baldor-Reliance motor is built for durability and efficiency, making it a preferred choice for various industrial and commercial applications. At Pump-Stop, we are your go-to source for replacement pumps and parts, ensuring you find the right solution for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VL3510 to ensure compatibility. Don't hesitate to reach out if you need help locating the right item!

UPC 781568109113
Supplier Part Number VL3510
Category AC Motors
Subcategory Single Phase Enclosed
Product Family General Purpose
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 40.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VL3510
Current @ Voltage 12.500 A @ 115.0 V, 6.300 A @ 230.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 74.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 6.3 a
Insulation Class F
Inverter Code Not Inverter
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Induction Run
Motor Standards NEMA
Motor Type 3528L
Mounting Arrangement F1
Number of Poles 4
Output 1.000 hp
Output @ Frequency 1.000 HP @ 60 HZ
Overall Length 13.25 IN
Phase 1
Power Factor 69
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1750 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 115 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
