Baldor VL3508 - .75 HP, 1145RPM, 1 Phase, 60HZ, 56C, 3526LC, TEFC, F 60HZ Single Phase Single Phase 75 HP 56°C

Save $410.00
BaldorSKU: VL3508

Price:
Sale price$1,230.00 Regular price$1,640.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

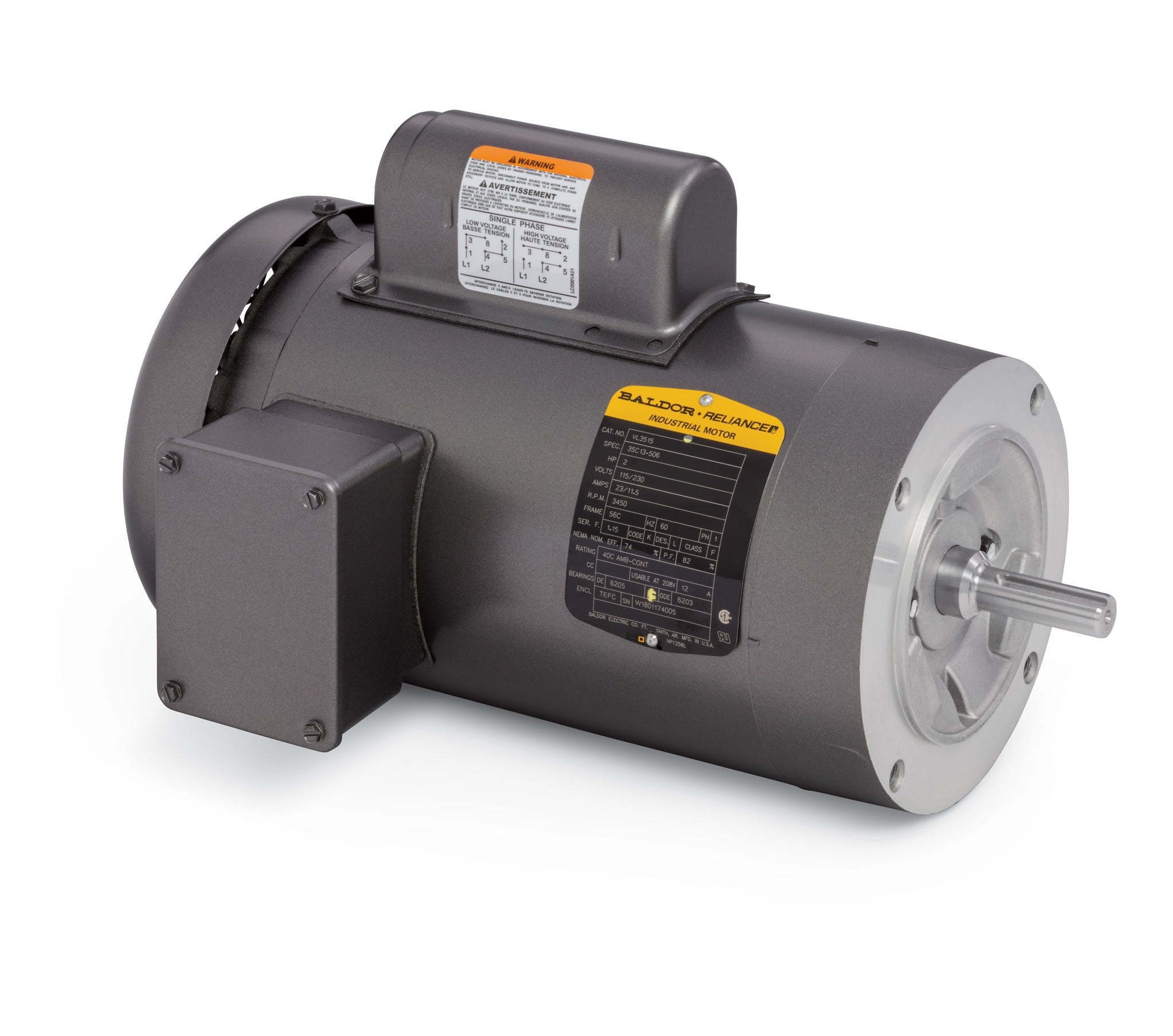

Baldor VL3508 Single Phase Enclosed Motor

Discover the reliability and performance of the Baldor VL3508, a robust single-phase enclosed motor designed for various applications. With a power output of .75 HP and a speed of 1145 RPM, this motor operates efficiently at 60HZ. It features a 56C frame size and is built with a Totally Enclosed Fan Cooled (TEFC) design, ensuring durability and protection against environmental factors.

This motor is ideal for those seeking a dependable solution for their pumping needs. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, offering a wide selection of quality products to meet your requirements.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VL3508 to ensure compatibility. Our team is here to help you find the perfect solution!

Product Specifications:

  • Product Code: VL3508
  • Type: Single Phase Enclosed
  • Power: .75 HP
  • Speed: 1145 RPM
  • Phase: 1
  • Frequency: 60HZ
  • Frame Size: 56C
  • Design: TEFC
UPC 781568109083
Supplier Part Number VL3508
Category AC Motors
Subcategory Single Phase Enclosed
Product Family General Purpose
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 44.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VL3508
Current @ Voltage 4.200 A @ 230.0 V, 7.800 A @ 115.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 74.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 4.2 a
Insulation Class F
Inverter Code Not Inverter
IP Rating NONE
KVA Code G
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3526LC
Mounting Arrangement F1
Number of Poles 6
Output 0.750 hp
Output @ Frequency .750 HP @ 60 HZ
Overall Length 13.23 IN
Phase 1
Power Factor 82
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1145 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 115 V, 230 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
