Baldor VL3506-50 - .75/.55KW, 2850RPM, 1 Phase, 50HZ, 56C, 3520LC, Te 50HZ Single Phase Single Phase 56°C

Save $212.50
BaldorSKU: VL3506-50

Price:
Sale price$637.50 Regular price$850.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

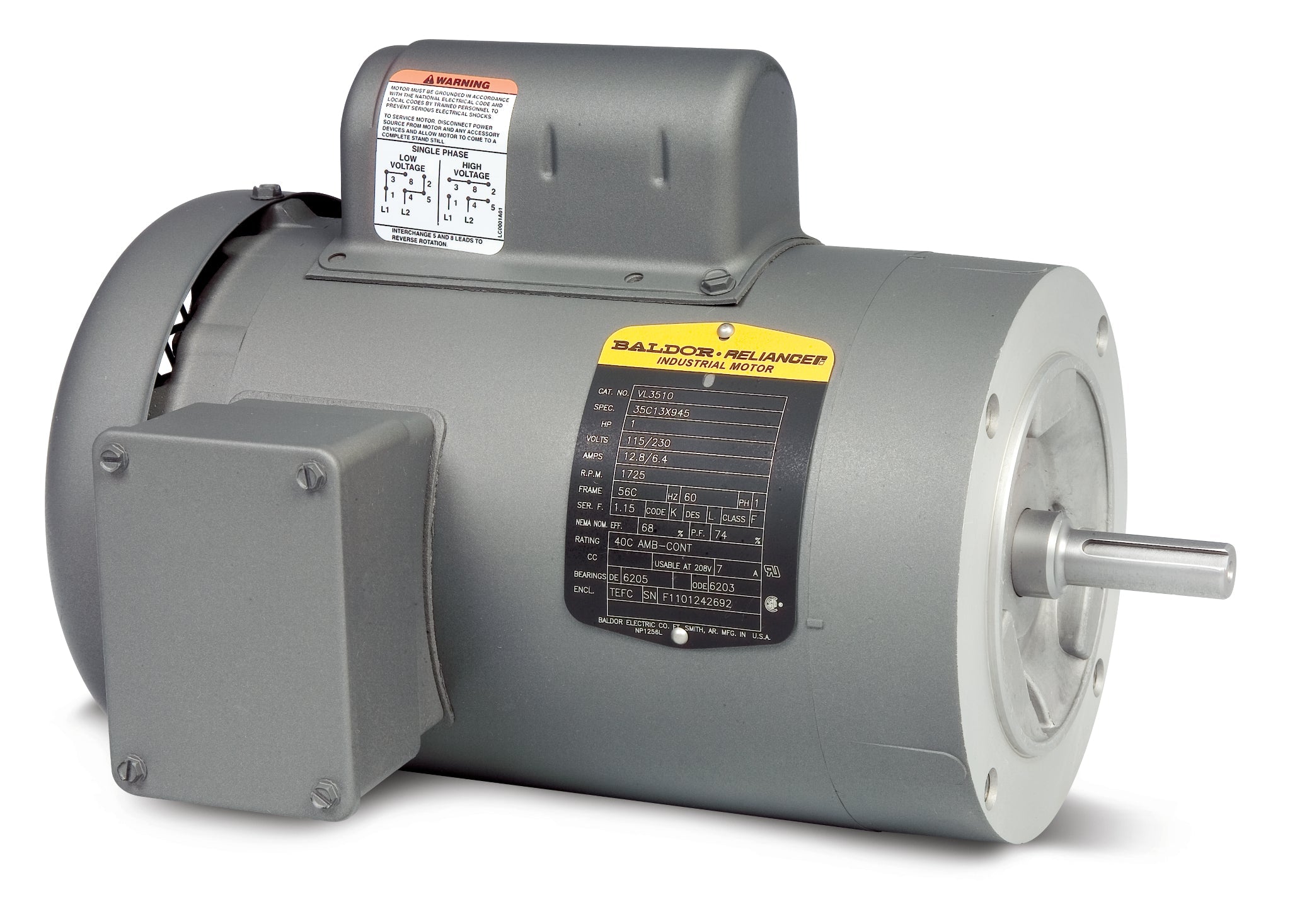

Baldor VL3506-50 Single Phase Enclosed Motor:

The Baldor VL3506-50 is a high-performance single phase enclosed motor designed for reliable operation in various applications. With a power rating of .75/.55KW and a speed of 2850 RPM, this motor is ideal for those seeking efficiency and durability. Operating at 50HZ, it features a 56C frame and is built to withstand demanding environments.

Key Specifications:

  • Power: .75/.55KW
  • Speed: 2850 RPM
  • Phase: 1PH
  • Frequency: 50HZ
  • Frame Size: 56C
  • Product Code: VL3506-50

As a trusted supplier, Pump-Stop is your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VL3506-50 to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568120248
Supplier Part Number VL3506-50
Category AC Motors
Subcategory Single Phase Enclosed
Product Family General Purpose
Agency Approvals CURUS, UKCA, WEEE, CE, C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 35.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VL3506-50
Current @ Voltage 3.600 A @ 220.0 V, 7.200 A @ 110.0 V
Design Code -
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 74.1 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 50.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 3.6 a
Insulation Class B
Inverter Code Not Inverter
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3520LC
Mounting Arrangement F1
Number of Poles 2
Output 0.550 kW
Output @ Frequency .550 KW @ 50 HZ
Overall Length 13.23 IN
Phase 1
Power Factor 95
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 2850 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,000 rpm
Synchronous Speed @ Frequency 3000 RPM @ 50 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 110 V, 220 V
Voltage @ Frequency 220.0 V @ 50 HZ, 110.0 V @ 50 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
