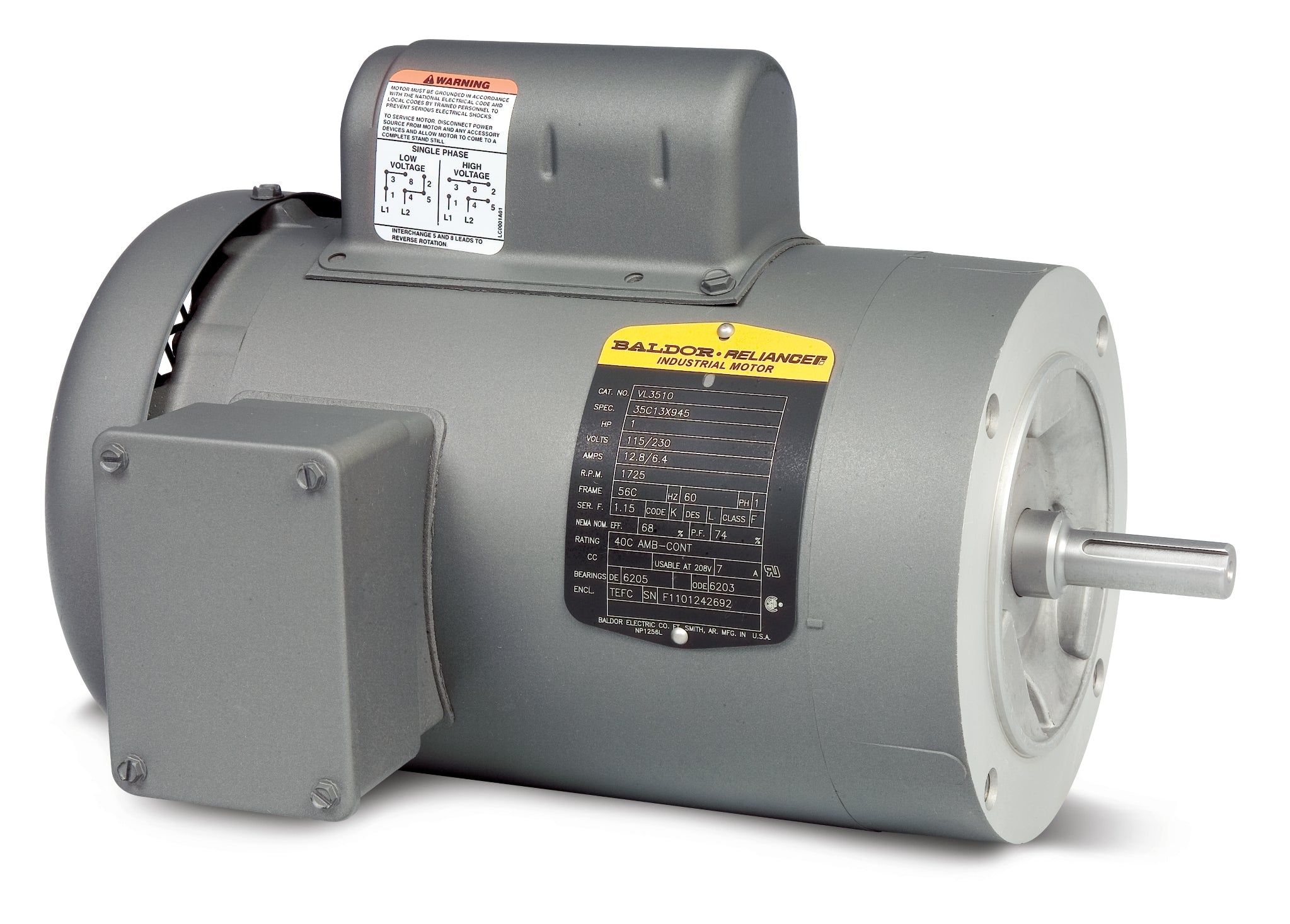

UPC
781568120224
Supplier Part Number
VL3503-50
Category
AC Motors
Subcategory
Single Phase Enclosed
Product Family
General Purpose
Agency Approvals
CURUS, UKCA, WEEE, CE, C UR US
Ambient Temperature
40 °C
Approximate Weight (lbs)
25.0
Auxillary Box
No Auxillary Box
Auxillary Box Lead Termination
None
Base Indicator
No Mounting
Bearing Grease Type
Polyrex EM (-20F +300F)
Blower
None
Catalog Number
VL3503-50
Current @ Voltage
2.450 A @ 220.0 V, 4.900 A @ 110.0 V
Design Code
-
Drip Cover
No Drip Cover
Duty Rating
CONT
Efficiency @ 100% Load
69.5 %
Electrically Isolated Bearing
Not Electrically Isolated
Enclosure
TEFC
Feedback Device
NO FEEDBACK
Frame
56C
Frame Material
Steel
Frequency
50.00 Hz
Front Face Code
Standard
Front Shaft Indicator
None
Haz Area Class and Group
NONE
Haz Area Division
Not Applicable
Heater Indicator
No Heater
High Voltage Full Load Amps
2.5 a
Insulation Class
B
Inverter Code
Not Inverter
KVA Code
J
Lifting Lugs
No Lifting Lugs
Locked Bearing Indicator
Locked Bearing
Motor Lead Exit
Ko Box
Motor Lead Quantity/Wire Size
6 @ 18 AWG
Motor Lead Termination
Flying Leads
Motor Letter Type
Cap Start, Cap Run
Motor Standards
NEMA
Motor Type
3420LC
Mounting Arrangement
F1
Number of Poles
2
Output
0.370 kW
Output @ Frequency
.370 KW @ 50 HZ
Overall Length
13.35 IN
Phase
1
Power Factor
93
Pulley End Bearing Type
Ball
Pulley Face Code
C-Face
Pulley Shaft Indicator
Standard
Rodent Screen
None
RoHS Status
ROHS COMPLIANT
Service Factor
1.25
Shaft Diameter
0.625 IN
Shaft Extension Location
Pulley End
Shaft Ground Indicator
No Shaft Grounding
Shaft Rotation
Reversible
Shaft Slinger Indicator
No Slinger
Speed
2895 rpm
Speed Code
Single Speed
Starting Method
Direct on line
Synchronous Speed
3,000 rpm
Synchronous Speed @ Frequency
3000 RPM @ 50 HZ
Thermal Device - Bearing
None
Thermal Device - Winding
None
Vibration Sensor Indicator
No Vibration Sensor
Voltage
220 V, 110 V
Voltage @ Frequency
220.0 V @ 50 HZ, 110.0 V @ 50 HZ
Winding Thermal 1
None
Winding Thermal 2
None
