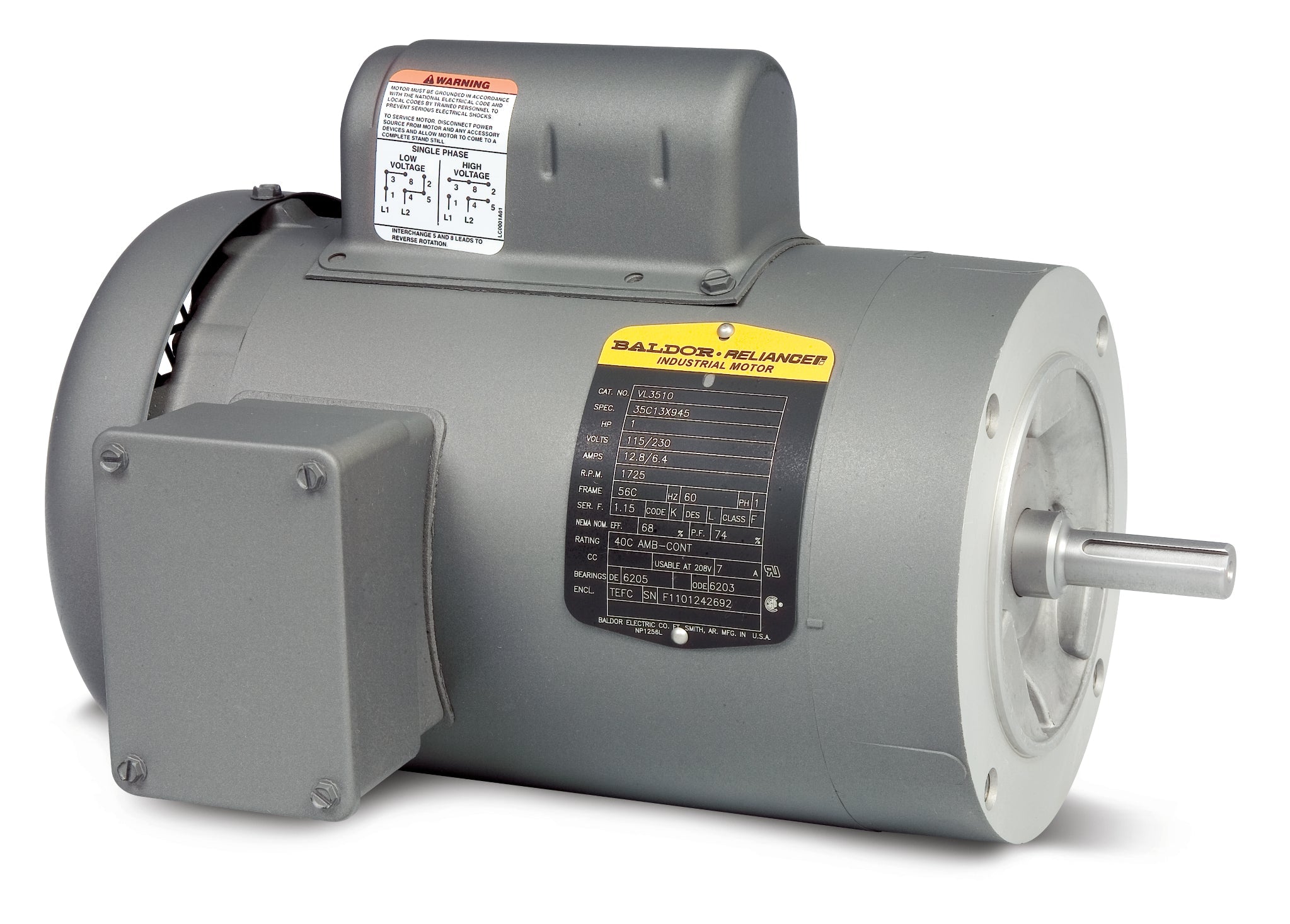

Baldor VL3501-50 - .33/.25KW, 1425RPM, 1 Phase, 50HZ, 56C, 3418LC, Te 50HZ Single Phase Single Phase 56°C

Save $203.25
BaldorSKU: VL3501-50

Price:
Sale price$609.75 Regular price$813.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor VL3501-50 Single Phase Enclosed Motor:

The Baldor VL3501-50 is a high-performance single phase enclosed motor designed for reliable operation in various applications. With a power rating of .33/.25KW and a speed of 1425 RPM, this motor operates efficiently at 50HZ, making it ideal for your pumping needs.

Specifications:

  • Power: .33/.25KW
  • Speed: 1425 RPM
  • Phase: 1 Phase
  • Frequency: 50HZ
  • Frame Size: 56C
  • Enclosure Type: TE (Totally Enclosed)
  • Product Code: VL3501-50

This Baldor-Reliance motor is perfect for applications requiring a durable and efficient motor solution. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right fit for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VL3501-50. Our team is here to help you with any inquiries or challenges you may face in selecting the right item.

UPC 781568154618
Supplier Part Number VL3501-50
Category AC Motors
Subcategory Single Phase Enclosed
Product Family General Purpose
Agency Approvals CURUS, UKCA, WEEE, CE, C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 17.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VL3501-50
Current @ Voltage 2.000 A @ 220.0 V, 4.000 A @ 110.0 V
Design Code -
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 68.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 50.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 2.0 a
Insulation Class F
Inverter Code Not Inverter
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3418LC
Mounting Arrangement F1
Number of Poles 4
Output 0.250 kW
Output @ Frequency .250 KW @ 50 HZ
Overall Length 11.97 IN
Phase 1
Power Factor 83
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.35
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1425 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,500 rpm
Synchronous Speed @ Frequency 1500 RPM @ 50 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 220 V, 110 V
Voltage @ Frequency 220.0 V @ 50 HZ, 110.0 V @ 50 HZ
Winding Thermal 1 None
Winding Thermal 2 None
