Baldor VL1406T - 3 HP, 3450RPM, 1 Phase, 60HZ, 182TC, 3532LC, Odtf 60HZ Single Phase Single Phase 3 HP

Save $405.50
BaldorSKU: VL1406T

Price:
Sale price$1,216.50 Regular price$1,622.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

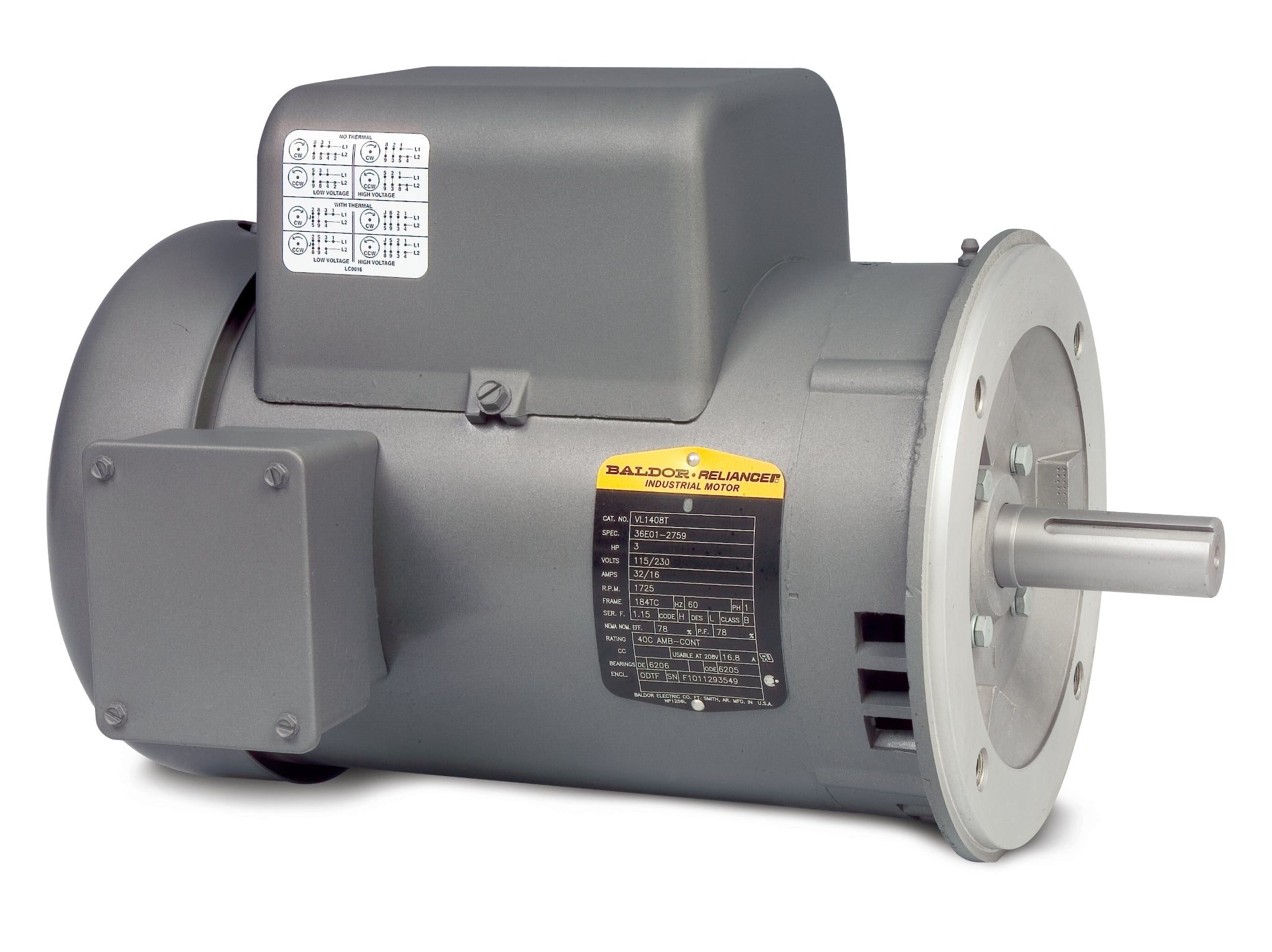

Baldor VL1406T - 3 HP Single Phase Open Motor

Introducing the Baldor VL1406T, a high-performance single phase open motor designed for reliability and efficiency. With a powerful 3 HP output and a speed of 3450 RPM, this motor is ideal for various applications requiring robust performance.

Specifications:

  • Power: 3 HP
  • Speed: 3450 RPM
  • Phase: 1 Phase
  • Frequency: 60 Hz
  • Frame Size: 182TC
  • Product Code: VL1406T

This Baldor-Reliance motor is perfect for those looking to enhance their equipment with a dependable and efficient solution. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, ensuring you find the right fit for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor VL1406T to ensure compatibility. Don’t hesitate to reach out if you need help!

UPC 781568110959
Supplier Part Number VL1406T
Category AC Motors
Subcategory Single Phase Open
Product Family General Purpose
Agency Approvals C UR US, CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 61.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VL1406T
Current @ Voltage 14.700 A @ 208.0 V, 27.200 A @ 115.0 V, 13.600 A @ 230.0 V
Design Code L
Drip Cover Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 75.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODTF
Feedback Device NO FEEDBACK
Frame 182TC
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Drip Cover Mounting
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 13.6 a
Insulation Class B
Inverter Code Not Inverter
KVA Code H
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 4 @ 14 AWG, A PH
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3532LC
Mounting Arrangement F1
Number of Poles 2
Output 3.000 hp
Output @ Frequency 3.000 HP @ 60 HZ
Overall Length 15.18 IN
Phase 1
Power Factor 92
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 115 V
Voltage @ Frequency 230.0 V @ 60 HZ, 115.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
