Description

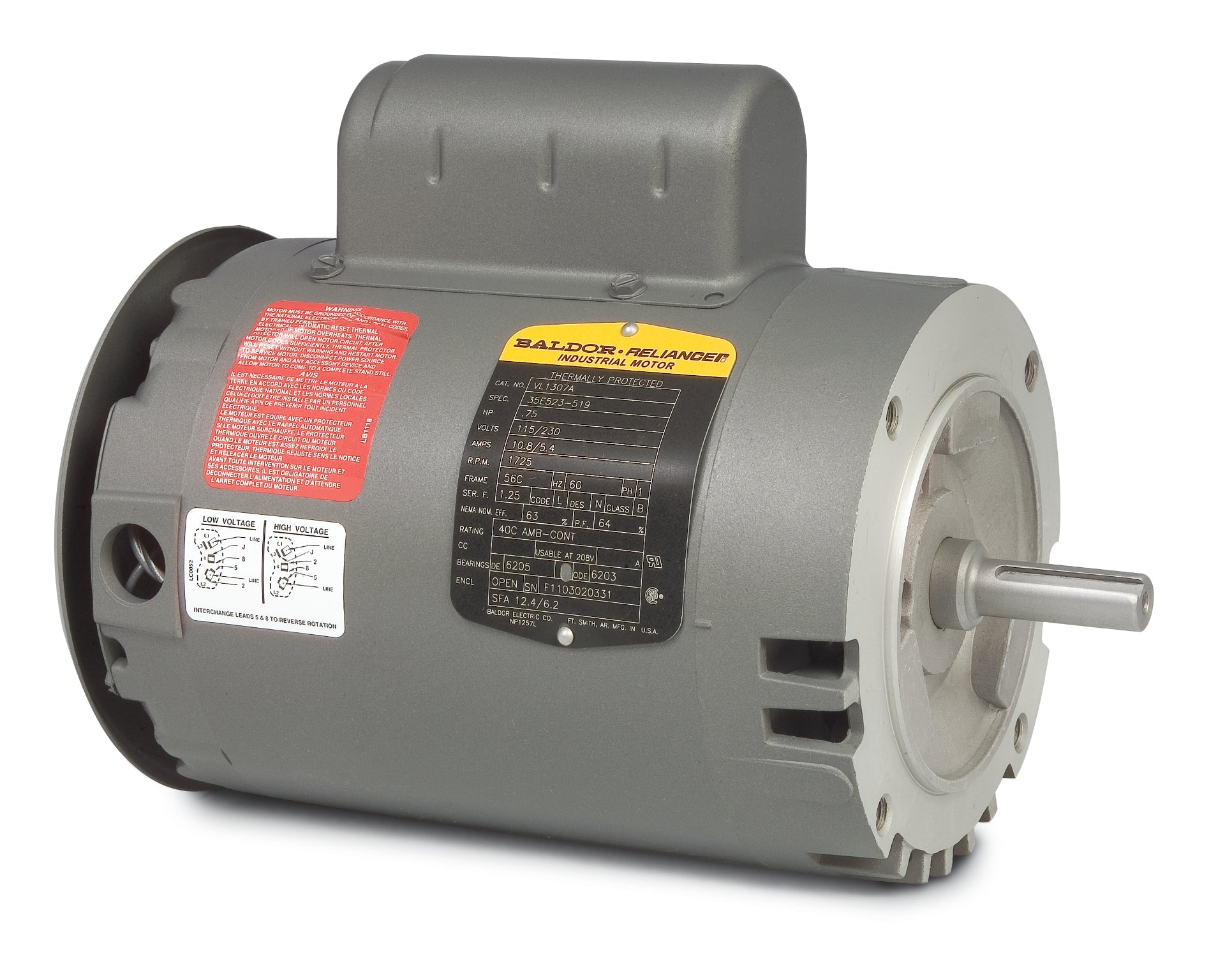

Baldor Replacement Part — Component
The Baldor VL1317A for Baldor pump systems.
Part Specifications
| Part Number | VL1317A |
| Brand | Baldor |
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
- UPC
- 781568110928
- Supplier Part Number
- VL1317A
- Category
- AC Motors
- Subcategory
- 56J Jet Pump Motors
- Product Family
- General Purpose
- Agency Approvals
- C UR US
- Ambient Temperature
- 40 °C
- Approximate Weight (lbs)
- 44.0
- Auxillary Box
- No Auxillary Box
- Auxillary Box Lead Termination
- None
- Base Indicator
- No Mounting
- Bearing Grease Type
- Polyrex EM (-20F +300F)
- Blower
- None
- Catalog Number
- VL1317A
- Current @ Voltage
- 13.000 A @ 230.0 V, 26.000 A @ 115.0 V
- Design Code
- L
- Drip Cover
- Drip Cover
- Duty Rating
- CONT
- Efficiency @ 100% Load
- 70.0 %
- Electrically Isolated Bearing
- Not Electrically Isolated
- Enclosure
- OPEN
- Feedback Device
- NO FEEDBACK
- Frame
- 56C
- Frame Material
- Steel
- Frequency
- 60.00 Hz
- Front Face Code
- Terminal Panel
- Front Shaft Indicator
- None
- Haz Area Class and Group
- NONE
- Haz Area Division
- Not Applicable
- Heater Indicator
- No Heater
- High Voltage Full Load Amps
- 13.0 a
- Insulation Class
- B
- Inverter Code
- Not Inverter
- KVA Code
- G
- Lifting Lugs
- No Lifting Lugs
- Locked Bearing Indicator
- Locked Bearing
- Motor Lead Exit
- Terminal Panel
- Motor Lead Quantity/Wire Size
- 4 @ 14 AWG, A&J
- Motor Lead Termination
- None
- Motor Letter Type
- Cap Start, Induction Run
- Motor Standards
- NEMA
- Motor Type
- 3528L
- Mounting Arrangement
- F1
- Number of Poles
- 2
- Output
- 2.000 hp
- Output @ Frequency
- 2.000 HP @ 60 HZ
- Overall Length
- 12.74 IN
- Phase
- 1
- Power Factor
- 69
- Pulley End Bearing Type
- Ball
- Pulley Face Code
- C-Face
- Pulley Shaft Indicator
- Standard
- Rodent Screen
- None
- RoHS Status
- ROHS COMPLIANT
- Service Factor
- 1.2
- Shaft Diameter
- 0.625 IN
- Shaft Extension Location
- Pulley End
- Shaft Ground Indicator
- No Shaft Grounding
- Shaft Rotation
- Reversible: Connected OPP STD
- Shaft Slinger Indicator
- No Slinger
- Speed
- 3450 rpm
- Speed Code
- Single Speed
- Starting Method
- Direct on line
- Synchronous Speed
- 3,600 rpm
- Synchronous Speed @ Frequency
- 3600 RPM @ 60 HZ
- Thermal Device - Bearing
- None
- Thermal Device - Winding
- Do Not Use Eve-Not Valiid
- Vibration Sensor Indicator
- No Vibration Sensor
- Voltage
- 115 V, 230 V
- Voltage @ Frequency
- 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
- Winding Thermal 1
- Automatic Thermal Overload
- Winding Thermal 1 Location
- SB
- Winding Thermal 2
- None
