Baldor VL1309A - 1 HP, 3450RPM, 1 Phase, 60HZ, 56C, 3428L, Open, F1 60HZ Single Phase 1 HP 56°C

Save $187.50
BaldorSKU: VL1309A

Price:
Sale price$562.50 Regular price$750.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

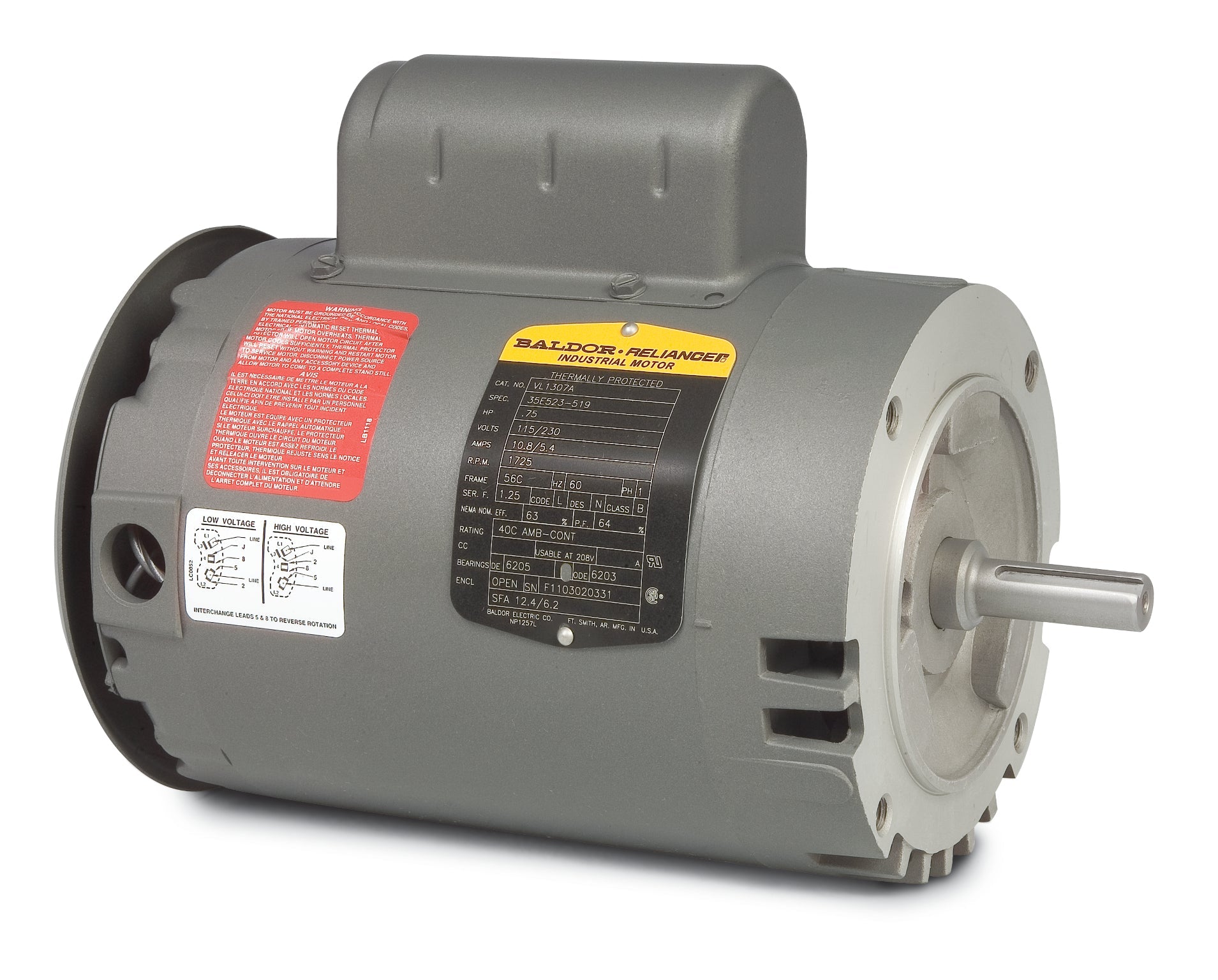

Baldor VL1309A - 1 HP Jet Pump Motor

The Baldor VL1309A is a high-performance 1 HP jet pump motor designed for reliable operation in various applications. With a robust speed of 3450 RPM and a single-phase power supply at 60Hz, this motor is ideal for powering your jet pumps efficiently. It features a 56C frame and an open design, ensuring optimal cooling and performance.

Key Specifications:

  • Power: 1 HP
  • Speed: 3450 RPM
  • Phase: Single Phase
  • Frequency: 60Hz
  • Frame Size: 56C
  • Product Code: VL1309A

As a trusted vendor, Baldor provides durable and efficient motors that meet the demands of various pumping applications. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Baldor VL1309A. If you have any questions or need assistance in finding the right item, please call us at (781) 281-8905. Our team is here to help you with all your pump-related inquiries.

UPC 781568110836
Supplier Part Number VL1309A
Category AC Motors
Subcategory 56J Jet Pump Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 32.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number VL1309A
Current @ Voltage 14.000 A @ 115.0 V, 7.000 A @ 230.0 V, 7.800 A @ 208.0 V, 8.800 A @ 208.0 V
Design Code N
Drip Cover Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 65.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Drip Cover Mounting
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 7.0 a
Insulation Class B
Inverter Code Not Inverter
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Terminal Panel Or Lead Hole
Motor Lead Quantity/Wire Size 4 @ 16 AWG, A&J
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Induction Run
Motor Standards NEMA
Motor Type 3428L
Mounting Arrangement F1
Number of Poles 2
Output 1.000 hp
Output @ Frequency 1.000 HP @ 60 HZ
Overall Length 13.40 IN
Phase 1
Power Factor 65
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.4
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible: Connected OPP STD
Shaft Slinger Indicator No Slinger
Speed 3450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 115 V, 208 V, 230 V
Voltage @ Frequency 115.0 V @ 60 HZ, 208.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location SB
Winding Thermal 2 None
